Wellbore #00 Wellbore Classification: OW Status: PA - 3/25/2019 Measured TD: 7919 ft. Vertical TD: 7625 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 3/25/2019 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20060374 | Expiration Date: | 3/14/2007 | | Bottom Hole Location: | Sec:18 Twp: 3N 64W | Footage: 2150 FNL 660 FEL | | Proposed Depth/Form: | 8200 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2NE | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 80, Drill Unit: E2NE |
| | |

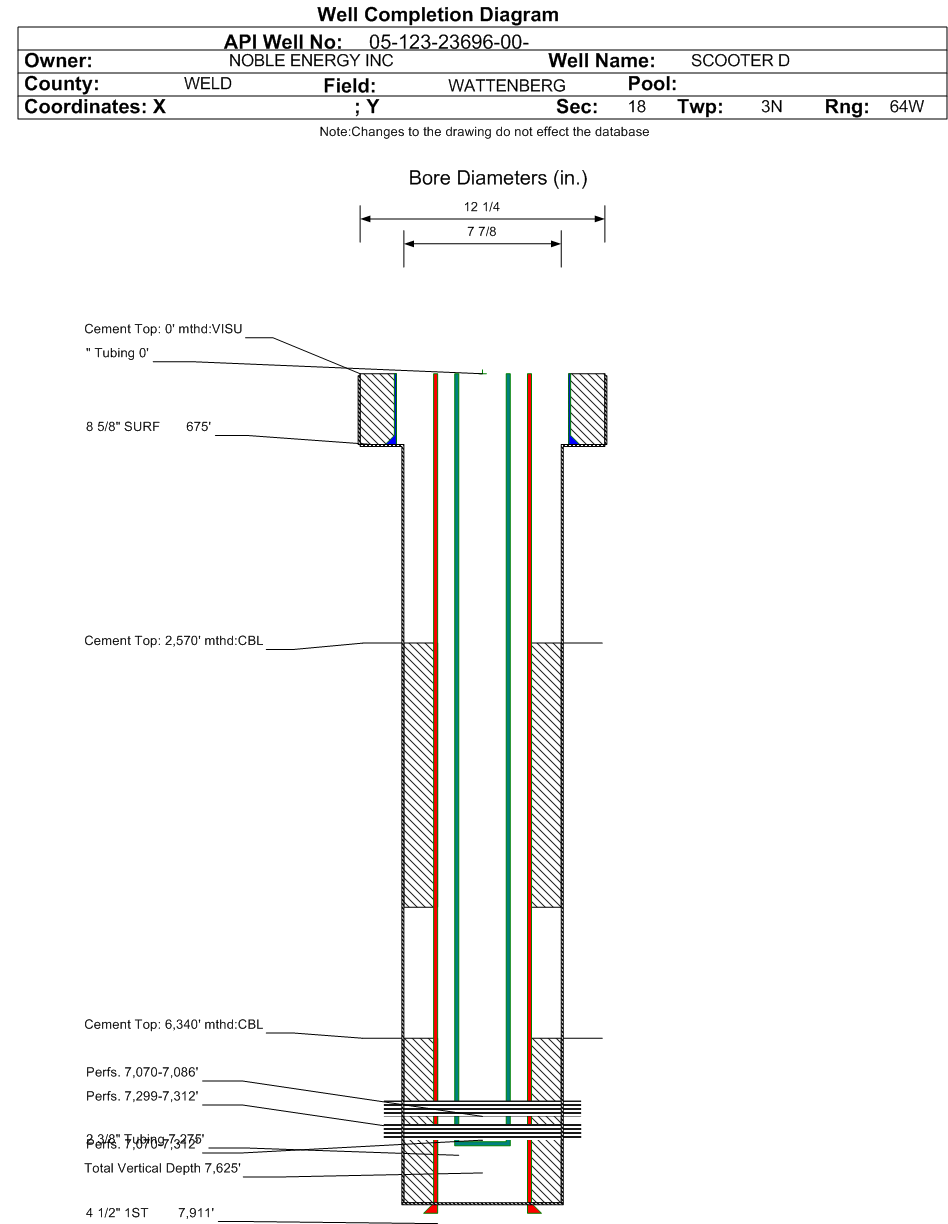

| Wellbore Completed | | Completion Date: | 7/5/2006 | | Spud Date: | 7/1/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7919 ft. | Measured PB depth: | 7892 ft. | | True Vertical TD: | 7625 ft. | True Vertical PB depth: | 7598 ft. | | Top PZ Location: | Sec:18 Twp: 3N 64W | Footage: 2085 FNL 640 FEL | | Bottom Hole Location: | Sec:18 Twp: 3N 64W | Footage: 2085 FNL 640 FEL | | Log Types: | GR/CCL/CBL, CDL/CNL/ML, DIL/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 675 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 475, Top: 0 ft., Bottom: 675 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7911 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 6340 ft., Bottom: 7911 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5066 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 560, Top: 2570 ft., Bottom: 5090 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3436 ft. | | N | N | | SUSSEX | 4475 ft. | | N | N | | NIOBRARA | 7022 ft. | | N | N | | CODELL | 7297 ft. | | N | N | | J SAND | 7772 ft. | | N | N |
Formation CODL Formation Classification: GW Status: AB - 4/18/2019 Interval Top: 7299 ft. Interval Bottom: 7312 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 8/2/2006 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/7/2010 | | Treatment Summary: | Temporary bridge plug removed after Niobrara recomplete 7/7/10 | | Formation Treatment | | Treatment Date: | 6/24/2010 | | Treatment Summary: | Codell covered by retrievable bridge plug for Niobrara recomplete | | Formation Treatment | | Treatment Date: | 8/1/2006 | | Treatment Summary: | FRAC'D CODELL W/ 128,352 GALS OF SILVERSTIM W/ 28# GEL LOADINGS & 270,380# OF 20/40 OTTAWA SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 13 | | BBLS_OIL | 17 | | CALC_GOR | 5882 | | CASING_PRESS | 200 | | MCF_GAS | 100 |
| | Perforation Data: | | Interval Top: | 7299 ft. | # Of Holes: | 52 | | Interval Bottom: | 7312 ft. | Hole Size: | 0.42 in. |
|
Formation NB-CD Formation Classification: GW Status: AB - 4/18/2019 Interval Top: 7070 ft. Interval Bottom: 7312 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 7/8/2010 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/7/2010 | | Treatment Summary: | Niobrara are commingled |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7275 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/17/2010 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 8 | | BBLS_OIL | 8 | | BTU_GAS | 1300 | | CALC_BBLS_H2O | 8 | | CALC_BBLS_OIL | 8 | | CALC_GOR | 12500 | | CALC_MCF_GAS | 100 | | CASING_PRESS | 1000 | | GRAVITY_OIL | 52 | | MCF_GAS | 100 | | TUBING_PRESS | 800 |
| | Perforation Data: | | Interval Top: | 7070 ft. | # Of Holes: | 174 | | Interval Bottom: | 7312 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: GW Status: CM - 10/19/2010 Interval Top: 7070 ft. Interval Bottom: 7086 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 7/8/2010 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/7/2010 | | Treatment Summary: | Niobrara commingled w/ Codell after Niobrara recomplete |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BBLS_OIL | 19 | | BTU_GAS | 1300 | | CALC_BBLS_H2O | 3 | | CALC_BBLS_OIL | 19 | | CALC_GOR | 6579 | | CALC_MCF_GAS | 125 | | CASING_PRESS | 130 | | GRAVITY_OIL | 52 | | MCF_GAS | 125 |
| | Perforation Data: | | Interval Top: | 7070 ft. | # Of Holes: | 122 | | Interval Bottom: | 7086 ft. | Hole Size: | 0.7 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 04/18/2019 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
