Wellbore #00 Wellbore Classification: OW Status: AB - 4/2/2025 Measured TD: 7510 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 4/2/2025 | | Wellbore Permit | | | Permit #: | 20060148 | Expiration Date: | 2/27/2007 | | Proposed Depth/Form: | 8486 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKJNC , Formation: DAKOTA-J-NIOBRARA-CODELL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: W2SW | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: PLANNED | | Cement: | Sacks: 275, Top: 3986 ft., Bottom: 6986 ft. |
| | |

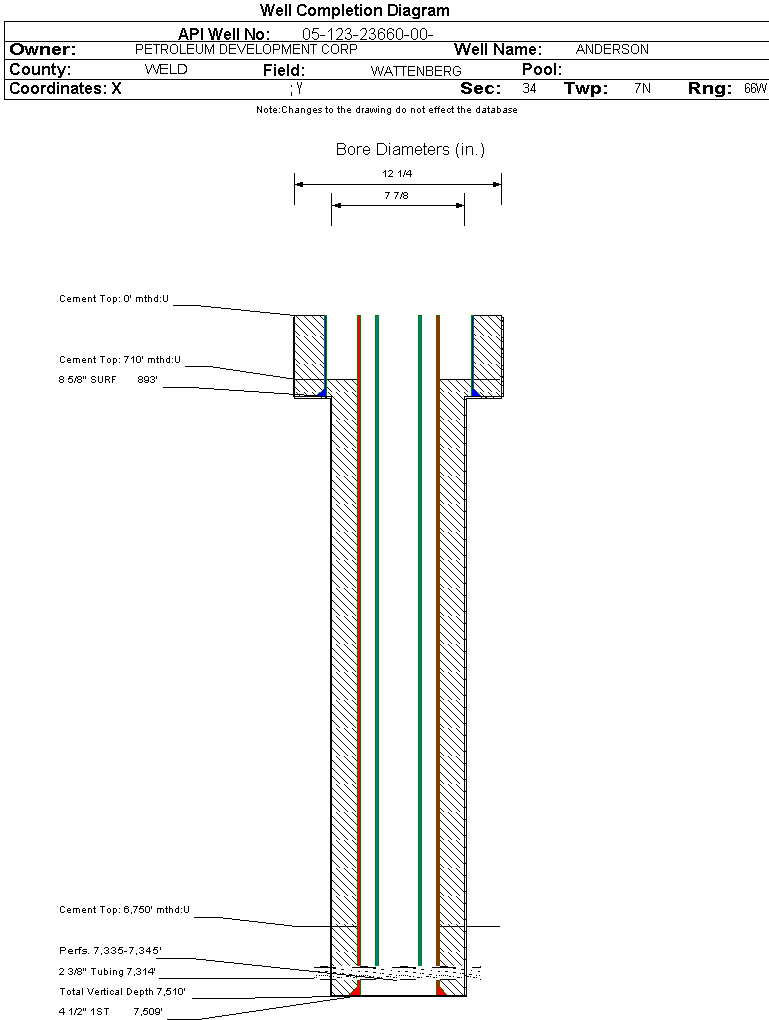

| Wellbore Completed | | Completion Date: | 4/3/2006 | | Spud Date: | 3/30/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7510 ft. | Measured PB depth: | 7509 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | COMPENSATED DENSITY,COMPENSATED NEUTRON,DUAL INDUCTION,CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 893 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 620, Top: 0 ft., Bottom: 893 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7510 ft., Weight: 10.5 , Citings Type: ACTUAL | | Cement: | Sacks: 170, Top: 6750 ft., Bottom: 7510 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 6750 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 560, Top: 710 ft., Bottom: 6750 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3805 ft. | | N | N | | SUSSEX | 4318 ft. | | N | N | | SHANNON | 4642 ft. | | N | N | | NIOBRARA | 7031 ft. | | N | N | | FORT HAYS | 7284 ft. | | N | N | | CODELL | 7332 ft. | | N | N |
Formation CODL Formation Classification: GW Status: AB - 4/2/2025 Interval Top: 7335 ft. Interval Bottom: 7345 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 5/1/2006 | Choke Size: | 0.250 in. | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/13/2006 | | Treatment Summary: | BJ SERVICES FRAC'D USING 2544 BBL OF 20# VISTAR GEL, 217,940# OF 20/40 FRAC SAND, AND 8000# OF SUPER LC 20/40 RESIN COATED SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7314 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/31/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 22 | | BTU_GAS | 1287 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 22 | | CALC_GOR | 500 | | CALC_MCF_GAS | 11 | | CASING_PRESS | 1950 | | GRAVITY_OIL | 45 | | MCF_GAS | 11 | | TUBING_PRESS | 1950 |
| | Perforation Data: | | Interval Top: | 7335 ft. | # Of Holes: | 24 | | Interval Bottom: | 7345 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 04/02/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
