Wellbore #00 Wellbore Classification: OW Status: AB - 7/1/2025 Measured TD: 7944 ft. Vertical TD: 7584 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 7/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20060067 | Expiration Date: | 2/21/2007 | | Proposed Top PZ Location: | Sec:18 Twp: 5N 66 | Footage: 683 FSL 637 FEL | | Bottom Hole Location: | Sec:18 Twp: 5N 66 | Footage: 683 FSL 637 FEL | | Proposed Depth/Form: | 8000 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: SE/4 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: SE/4 |
| | |

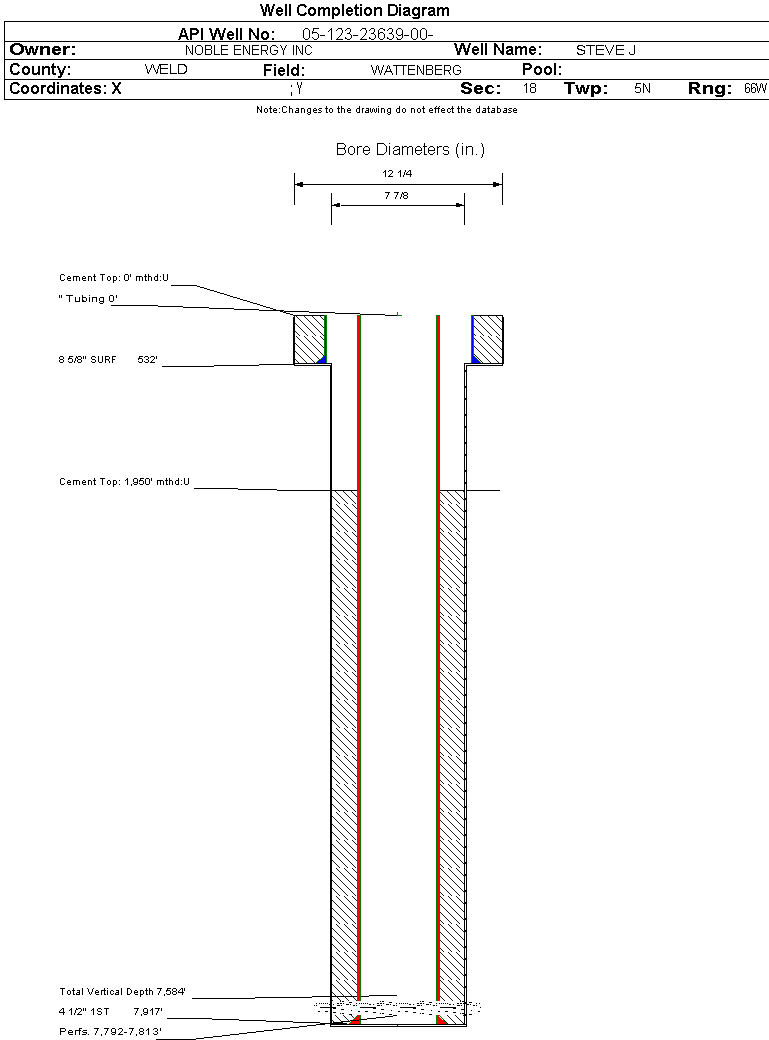

| Wellbore Completed | | Completion Date: | 6/1/2006 | | Spud Date: | 5/27/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7944 ft. | Measured PB depth: | 7901 ft. | | True Vertical TD: | 7584 ft. | True Vertical PB depth: | 7541 ft. | | Top PZ Location: | Sec:18 Twp: 5N 66 | Footage: 683 FSL 637 FEL | | Bottom Hole Location: | Sec:18 Twp: 5N 66 | Footage: 683 FSL 637 FEL | | Log Types: | GR/CCL/CBL, CDL/CNL/ML, DIL/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 532 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 385, Top: 0 ft., Bottom: 532 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7918 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1010, Top: 1960 ft., Bottom: 7918 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3793 ft. | | N | N | | SUSSEX | 4970 ft. | | N | N | | SHANNON | 5246 ft. | | N | N | | NIOBRARA | 7462 ft. | | N | N | | FORT HAYS | 7762 ft. | | N | N | | CODELL | 7793 ft. | | N | N |
Formation CODL Formation Classification: OW Status: AB - 7/1/2025 Interval Top: 7792 ft. Interval Bottom: 7813 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 7/20/2006 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/18/2006 | | Treatment Summary: | FRAC'S CODELL W/ 127,060 GALS OF VISTAR WITH 24/25# GEL LOADING AND 246,220#'S OF 20/40 OTTAWA SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 11 | | BBLS_OIL | 15 | | BTU_GAS | 1206 | | CALC_GOR | 12533 | | CASING_PRESS | 650 | | GRAVITY_OIL | 57 | | MCF_GAS | 188 | | TUBING_PRESS | 350 |
| | Perforation Data: | | Interval Top: | 7792 ft. | # Of Holes: | 84 | | Interval Bottom: | 7813 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/01/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
