Wellbore #00 Wellbore Classification: OW Status: SI - 1/1/2025 Measured TD: 7279 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 1/1/2025 | | Wellbore Permit | | | Permit #: | 20055164 | Expiration Date: | 2/12/2007 | | Proposed Depth/Form: | 8235 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DK-J , Formation: DAKOTA-JSND , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E2NW4 | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: PLANNED | | Cement: | Sacks: 275, Top: 3735 ft., Bottom: 6735 ft. |
| | |

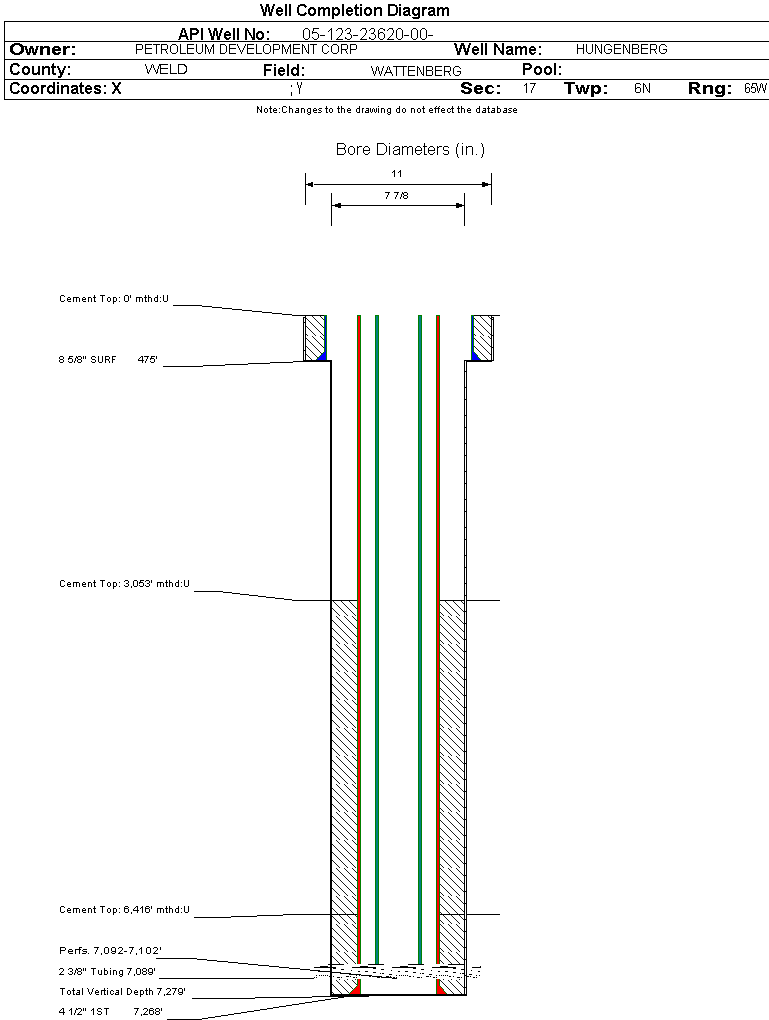

| Wellbore Completed | | Completion Date: | 3/4/2006 | | Spud Date: | 2/28/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7279 ft. | Measured PB depth: | 7268 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | COMP.DENSITY, COMP. NEUTRON, DUAL IND., CBL | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 475 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 380, Top: 0 ft., Bottom: 475 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7268 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 6416 ft., Bottom: 7268 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 235, Top: 3053 ft., Bottom: 6416 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3750 ft. | | N | N | | SUSSEX | 4215 ft. | | N | N | | SHANNON | 4442 ft. | | N | N | | NIOBRARA | 6790 ft. | | N | N | | FORT HAYS | 7055 ft. | | N | N | | CODELL | 7090 ft. | | N | N |
Formation CODL Formation Classification: OW Status: SI - 10/1/2024 Interval Top: 7092 ft. Interval Bottom: 7102 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 4/19/2006 | Choke Size: | 0.250 in. | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/15/2006 | | Treatment Summary: | BJ SERVICES FRAC'D USING 2564 BBL OF 20# VISTAR GEL, 217,480# OF 20/40 FRAC SAND, AND 8000# OF SUPER LC 20/40 RESIN COATED SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7089 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/1/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BBLS_OIL | 156 | | BTU_GAS | 1330 | | CALC_BBLS_H2O | 1 | | CALC_BBLS_OIL | 156 | | CALC_GOR | 231 | | CALC_MCF_GAS | 36 | | CASING_PRESS | 1725 | | GRAVITY_OIL | 48 | | MCF_GAS | 36 | | TUBING_PRESS | 1625 |
| | Perforation Data: | | Interval Top: | 7092 ft. | # Of Holes: | 30 | | Interval Bottom: | 7102 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
02/25/2026 |
| Defined Inactive (SI ) | Y | Defined Inactive
12/05/2024 |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
