Wellbore #00 Wellbore Classification: GW Status: AB - 7/25/2025 Measured TD: 7668 ft. Vertical TD: 7668 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 7/25/2025 | | Wellbore Permit | | | Permit #: | 20054705 | Expiration Date: | 1/12/2007 | | Proposed Depth/Form: | 7680 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2NW4 |
| | |

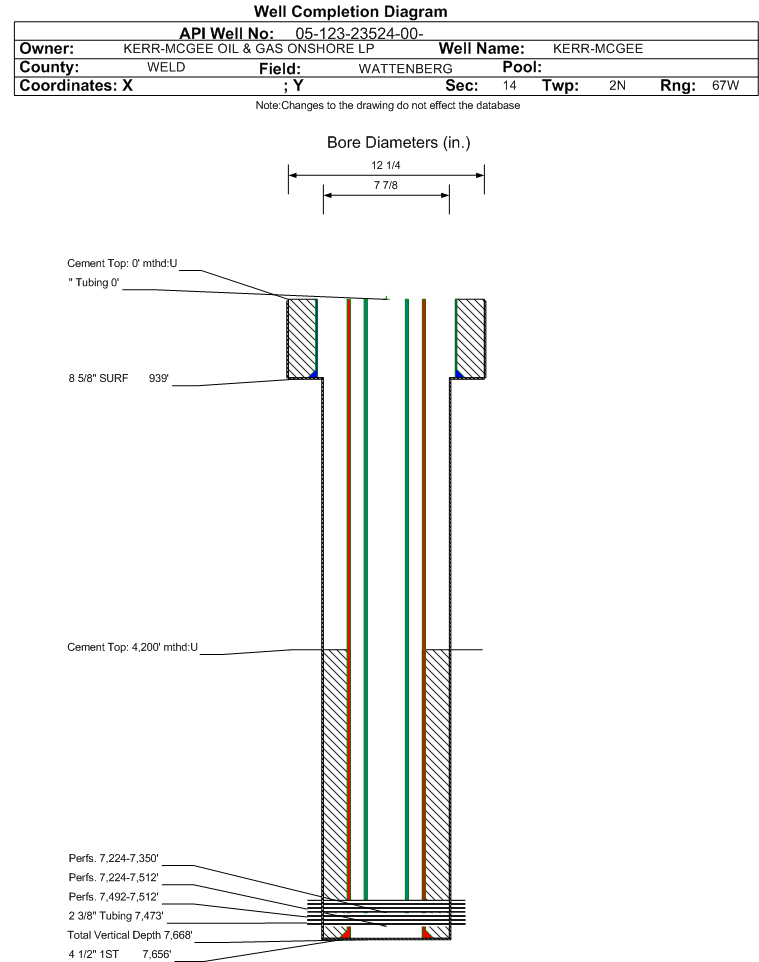

| Wellbore Completed | | Completion Date: | 5/18/2006 | | Spud Date: | 5/13/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7668 ft. | Measured PB depth: | 7624 ft. | | True Vertical TD: | 7668 ft. | True Vertical PB depth: | 7624 ft. | | Log Types: | CBL, CDCN, DIGL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 939 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 650, Top: 0 ft., Bottom: 939 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7655 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 480, Top: 4190 ft., Bottom: 7655 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3995 ft. | | N | N | | SUSSEX | 4518 ft. | | N | N | | NIOBRARA | 7224 ft. | | N | N | | FORT HAYS | 7470 ft. | | N | N | | CODELL | 7492 ft. | | N | N | | CARLILE | 7512 ft. | | N | N |
Formation CODL Formation Classification: GW Status: CM - 7/13/2010 Interval Top: 7492 ft. Interval Bottom: 7512 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 6/10/2010 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/27/2010 | | Treatment Summary: | REMOVE RBP SET @ 7470' TO COMMINGLE CODL W/NBRR. | | Formation Treatment | | Treatment Date: | 4/27/2010 | | Treatment Summary: | SET RBP @ 7470'. OUR INTENT IS TO REMOVE THE RBP TO COMMINGLE WELL WITHIN THE NEXT SIX MONTHS. | | Formation Treatment | | Treatment Date: | 6/22/2006 | | Treatment Summary: | 155,374 GALS FLUID & 115,560 LBS 30/50 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 2 | | CALC_BBLS_OIL | 2 | | CALC_GOR | 38000 | | CALC_MCF_GAS | 76 | | CASING_PRESS | 1182 | | GRAVITY_OIL | 50 | | MCF_GAS | 76 | | TUBING_PRESS | 950 |
| | Perforation Data: | | Interval Top: | 7492 ft. | # Of Holes: | 60 | | Interval Bottom: | 7512 ft. | Hole Size: | 0.45 in. |
|
Formation NB-CD Formation Classification: GW Status: AB - 7/25/2025 Interval Top: 7224 ft. Interval Bottom: 7512 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 6/10/2010 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/27/2010 | | Treatment Summary: | NBRR PERF 7224-7350 HOLES 56 SIZE 0.41. CODL PERF 7492-7512 HOLES 60 SIZE 0.45. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7473 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/20/2010 | Test Method: | FLOWING | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1294 | | CALC_BBLS_OIL | 10 | | CALC_GOR | 11200 | | CALC_MCF_GAS | 112 | | CASING_PRESS | 1625 | | GRAVITY_OIL | 45 | | TUBING_PRESS | 1600 |
| | Perforation Data: | | Interval Top: | 7224 ft. | # Of Holes: | 116 | | Interval Bottom: | 7512 ft. | Hole Size: | 0.45 in. |
|
Formation NBRR Formation Classification: GW Status: CM - 7/13/2010 Interval Top: 7224 ft. Interval Bottom: 7350 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 5/10/2010 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/10/2010 | | Treatment Summary: | NO ADDITIONAL TREATMENT. | | Formation Treatment | | Treatment Date: | 5/5/2010 | | Treatment Summary: | FRAC NBRR w/500 gal 15% HC1 & 243,894 gal sw & 200,40# 40/70 SAND & 4,222# SB EXCEL. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BTU_GAS | 1294 | | CALC_BBLS_OIL | 13 | | CALC_GOR | 7077 | | CALC_MCF_GAS | 92 | | CASING_PRESS | 1400 | | GRAVITY_OIL | 49 |
| | Perforation Data: | | Interval Top: | 7224 ft. | # Of Holes: | 56 | | Interval Bottom: | 7350 ft. | Hole Size: | 0.41 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/25/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
