COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-23426		Well Classification: GW Status: PA - 8/6/2021
Well Name/No:MILLER #5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/6/2021
FacilityID:281683LocationID:333160
County:WELD #123Location:NWSE 20 3N66W 6
Field:WATTENBERG - #90750Elevation:4960 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1412FSL  1446 FELLat/Long: 40.206966 / -104.796671Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.206944 / -104.796667Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

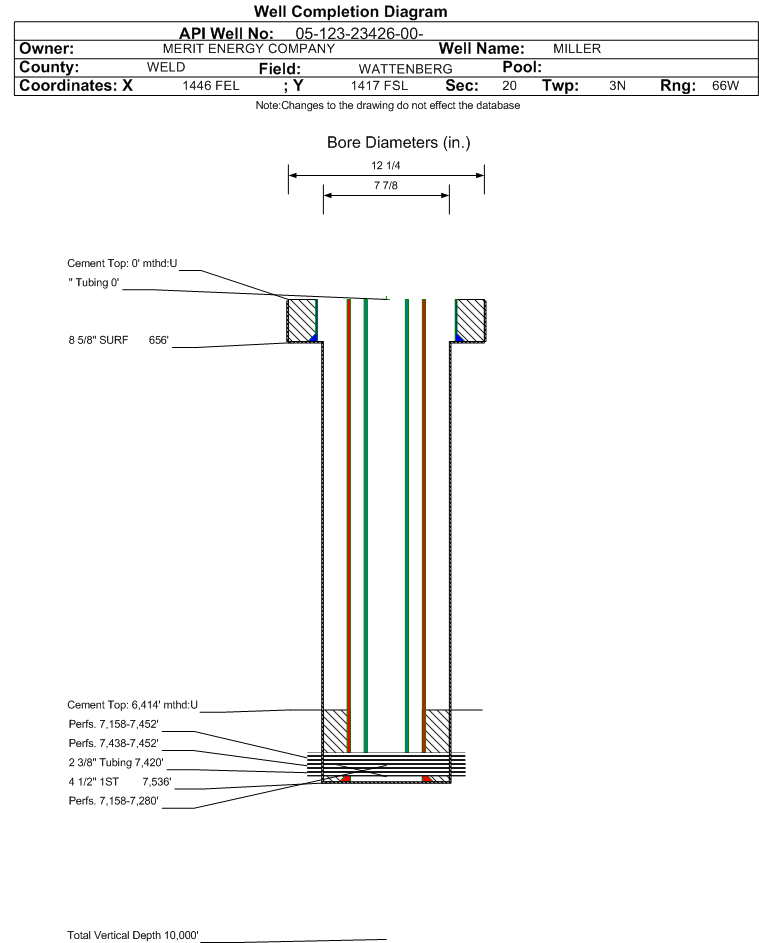

Wellbore #00             Wellbore Classification: GW             Status: PA - 8/6/2021             Measured TD: 7574 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/6/2021
Wellbore PermitDRIFTED
Permit #:20053782 Expiration Date:11/29/2006
Proposed Depth/Form:7600 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407.87 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:12/24/2005
Spud Date:12/19/2005Spud Date Is:ACTUAL
Measured TD:7574 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:GR/CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 656 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 460, Top: 0 ft., Bottom: 656 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7536 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6414 ft., Bottom: 7536 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4380 ft.NN
NIOBRARA7158 ft.NN
CODELL7438 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 2/14/2011                 Interval Top: 7438 ft.    Interval Bottom: 7452 ft.

 Completed Information for Formation CODELL
1st Production Date:1/15/2006Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/5/2006
Treatment Summary:FRAC W/123,270 GALS FRAC FLUID & 219,200# 30/50 SAND & 12,000# 12/20 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7438 ft.# Of Holes:56
Interval Bottom:7452 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 4/16/2021                 Interval Top: 7158 ft.    Interval Bottom: 7452 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:1/15/2006Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/5/2006
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 32
CALC_BBLS_H2O 0
CALC_BBLS_OIL 32
CALC_GOR 6312
CALC_MCF_GAS 202
CASING_PRESS 200
MCF_GAS 202
Perforation Data:
Interval Top:7158 ft.# Of Holes:216
Interval Bottom:7452 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 2/14/2011                 Interval Top: 7158 ft.    Interval Bottom: 7280 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:1/15/2006Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/5/2006
Treatment Summary:FRAC W/181,030 GALS FRAC FLUID & 238,220# 30/50 SAND & 12,000# 12/20 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7158 ft.# Of Holes:160
Interval Bottom:7280 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/06/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
