COGIS - WELL SCOUT CARD

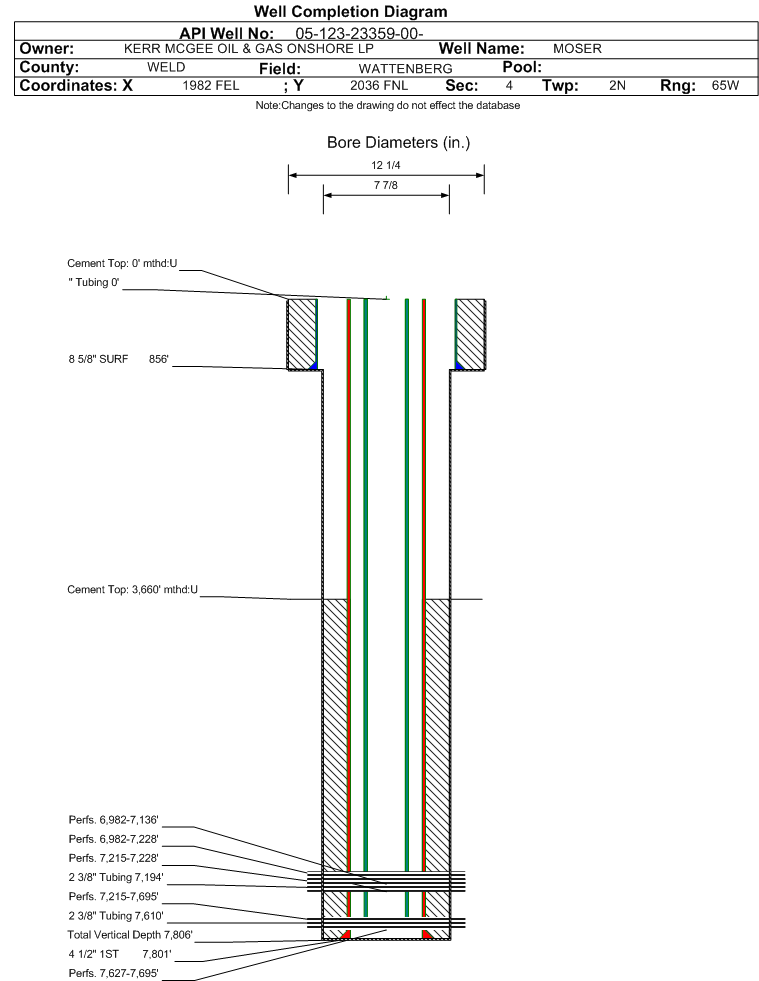

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-23359		Well Classification: GW Status: SI - 5/1/2022
Well Name/No:MOSER #7-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date5/1/2022
FacilityID:281232LocationID:305688
County:WELD #123Location:SWNE 4 2N65W 6
Field:WATTENBERG - #90750Elevation:4851 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2036FNL  1982 FELLat/Long: 40.168898 / -104.666336Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.169090 / -104.666310Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 10/31/2011
End Date: 10/31/2011
Reported: 12/7/2011
Prior to rule 205A.b.(2)(A)
Days to report: 37
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 5/1/2022             Measured TD: 7806 ft.    Vertical TD: 7806 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 5/1/2022
Wellbore Permit
Permit #:20053687 Expiration Date:11/7/2006
Proposed Depth/Form:7771 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: W2NE4
Wellbore Completed
Completion Date:1/4/2006
Spud Date:12/29/2005Spud Date Is:ACTUAL
Measured TD:7806 ft.Measured PB depth:7785 ft.
True Vertical TD:7806 ft.True Vertical PB depth:7785 ft.
Log Types:CND, DIGR, CBL, ML
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 856 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 856 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7802 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 530, Top: 3530 ft., Bottom: 7802 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4252 ft.NN
NIOBRARA6976 ft.NN
FORT HAYS7191 ft.NN
CODELL7213 ft.NN
J SAND7627 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  TA - 1/1/2017                  Interval Top: 7627 ft.    Interval Bottom: 7695 ft.

 Completed Information for Formation J SAND
1st Production Date:11/14/2006Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/28/2011
Treatment Summary:SET SAND PLUG @ 7420
Formation Treatment
Treatment Date:11/7/2006
Treatment Summary:PERF & FRAC JSND W/ 161,813 GALS FLUID & 119,060# 12/20 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7627 ft.# Of Holes:104
Interval Bottom:7695 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 12/7/2011                 Interval Top: 7215 ft.    Interval Bottom: 7228 ft.

 Completed Information for Formation CODELL
1st Production Date:1/18/2006Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/31/2011
Treatment Summary:Re-Frac Codell down 4-1/2" Csg w/ 216,506 gal Slickwater w/ 135,640# 40/70, 4,000# SB Excel
Formation Treatment
Treatment Date:1/16/2006
Treatment Summary:1/16/06 147,352 GAL FLUID, 116,600# 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 23
CALC_BBLS_H2O 0
CALC_BBLS_OIL 23
CALC_GOR 6478
CALC_MCF_GAS 149
CASING_PRESS 502
GRAVITY_OIL 51
MCF_GAS 149
TUBING_PRESS 225
Perforation Data:
Interval Top:7215 ft.# Of Holes:52
Interval Bottom:7228 ft.Hole Size:0.38 in.

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 12/11/2006                Interval Top: 7215 ft.    Interval Bottom: 7695 ft.

 Completed Information for Formation J-CODELL
1st Production Date:11/14/2007Choke Size:0.281 in.
Formation Name:J-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/4/2006
Treatment Summary:CODL PERFS 1/13/2006 7215-7228
Tubing Size:2.375 in.Tubing Setting Depth:7610 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/11/2006Test Method:FLOWING
Hours Tested:Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 14
CALC_GOR 24143
CALC_MCF_GAS 338
CASING_PRESS 700
GRAVITY_OIL 54
TUBING_PRESS 300
Perforation Data:
Interval Top:7215 ft.# Of Holes:
Interval Bottom:7695 ft.Hole Size:

Formation NB-CD                   Formation Classification:  OW                   Status:  SI - 5/1/2022                  Interval Top: 6982 ft.    Interval Bottom: 7228 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/14/2011Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/31/2011
Treatment Summary:CDRF-NBREC
Tubing Size:2.375 in.Tubing Setting Depth:7194 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/1/2011Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 8
BTU_GAS 1234
CALC_BBLS_OIL 8
CALC_GOR 14875
CALC_MCF_GAS 119
CASING_PRESS 775
GRAVITY_OIL 54
MCF_GAS 119
TUBING_PRESS 466
Perforation Data:
Interval Top:6982 ft.# Of Holes:114
Interval Bottom:7228 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 12/8/2011                 Interval Top: 6982 ft.    Interval Bottom: 7136 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:11/14/2011Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/31/2011
Treatment Summary:Frac Niobrara A & B & C down 4-1/2" Csg w/ 250 gal 15% HCl & 255,866 gal Slickwater w/ 201,040# 40/70, 4,000# SB Excel.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6982 ft.# Of Holes:62
Interval Bottom:7136 ft.Hole Size:0.42 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
04/30/2022
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
