COGIS - WELL SCOUT CARD

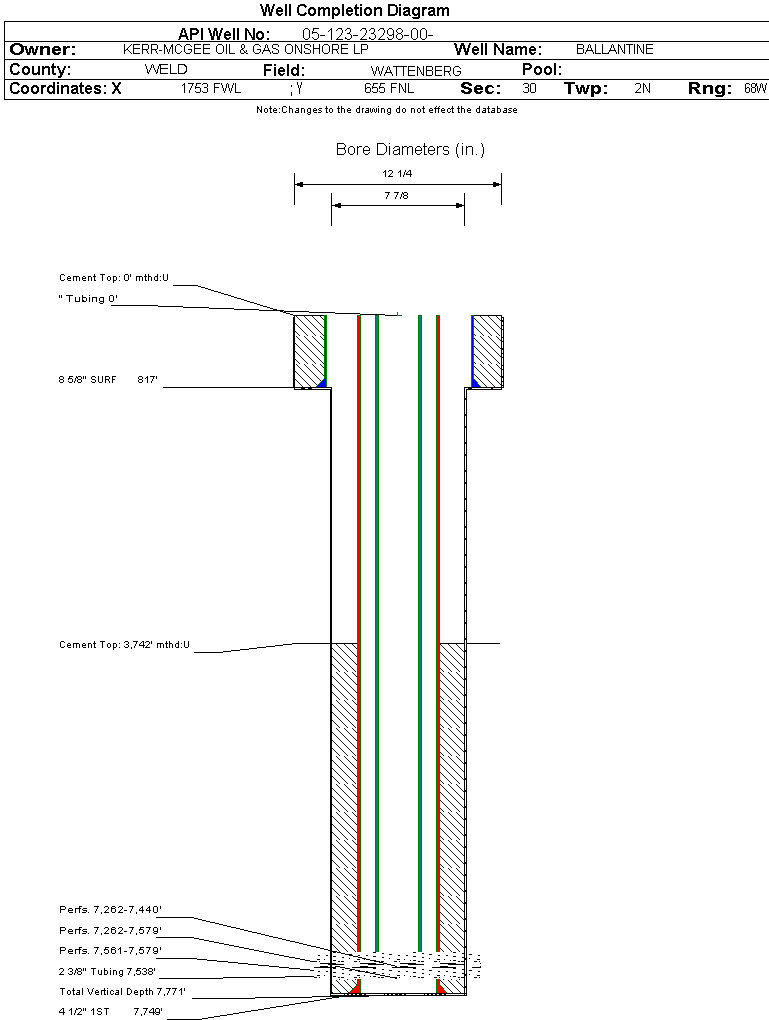

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-23298		Well Classification: GW Status: PA - 12/6/2021
Well Name/No:BALLANTINE #3-30
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/6/2021
FacilityID:280708LocationID:305645
County:WELD #123Location:NENW 30 2N68W 6
Field:WATTENBERG - #90750Elevation:4990 ft.
Basin:DENVER (DJ) BASIN
Planned Location:655FNL  1753 FWLLat/Long: 40.114856 / -105.049218Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.114844 / -105.049142Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/6/2021             Measured TD: 7771 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/6/2021
Wellbore Permit
Permit #:20053339 Expiration Date:10/17/2006
Proposed Depth/Form:7715 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: N2NW4
Wellbore Completed
Completion Date:11/6/2005
Spud Date:10/31/2005Spud Date Is:ACTUAL
Measured TD:7771 ft.Measured PB depth:7734 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDCN, DIGL, SBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 817 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 575, Top: 0 ft., Bottom: 817 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7763 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 190, Top: 6645 ft., Bottom: 7763 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7763 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 3742 ft., Bottom: 4894 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4386 ft.NN
SHANNON4816 ft.NN
NIOBRARA7256 ft.NN
FORT HAYS7530 ft.NN
CODELL7552 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 4/17/2008                 Interval Top: 7561 ft.    Interval Bottom: 7579 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/6/2005
Treatment Summary:01/28/2008 TEMPORARY SHUT-IN FOR NBTRR RECOMPLETE, BP @7500.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 37
CALC_BBLS_H2O 0
CALC_BBLS_OIL 37
CALC_GOR 3000
CALC_MCF_GAS 115
CASING_PRESS 521
GRAVITY_OIL 46
MCF_GAS 115
TUBING_PRESS 204
Perforation Data:
Interval Top:7561 ft.# Of Holes:54
Interval Bottom:7579 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/6/2021                 Interval Top: 7262 ft.    Interval Bottom: 7579 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:3/17/2008Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:3/5/2008
Treatment Summary:DRILL OUT PLUG & COMMINGLE NB-CD. CODL PERFS 11/16/05 > 7561-7579 (3 SPF).
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BTU_GAS 1296
CALC_BBLS_H2O 0
CALC_BBLS_OIL 6
CALC_GOR 3000
CALC_MCF_GAS 18
CASING_PRESS 450
GRAVITY_OIL 53
TUBING_PRESS 350
Perforation Data:
Interval Top:7262 ft.# Of Holes:138
Interval Bottom:7579 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 2/18/2008                 Interval Top: 7262 ft.    Interval Bottom: 7440 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:2/5/2008Choke Size:0.188 in.
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/31/2008
Treatment Summary:PERF NBRR A > 7262-7270 (3 SPF). NBRR B > 7341-7351 (3 SPF). NBRR C > 7430-7440 (3 SPF). FRAC NBRR A,B,C W/242,033 GALS FLUID & 201,300# 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/18/2008Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1296
CALC_BBLS_H2O 0
CALC_BBLS_OIL 1
CALC_GOR 44000
CALC_MCF_GAS 44
CASING_PRESS 450
GRAVITY_OIL 53
Perforation Data:
Interval Top:7262 ft.# Of Holes:84
Interval Bottom:7440 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/06/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
