Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-123-23219		Well Classification: GW	Status: PA - 10/18/2022
Well Name/No:	VOLCIC #3-27 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	KERR MCGEE OIL & GAS ONSHORE LP - 47120 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PA	Status Date	10/18/2022
FacilityID:	279671	LocationID:	336171
County:	WELD #123	Location:	SWNW 27 2N66W 6
Field:	WATTENBERG - #90750	Elevation:	4960 ft.
Basin:	DENVER (DJ) BASIN
Planned Location:	1575FNL 1048 FWL	Lat/Long: 40.112078 / -104.769219	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 40.112093 / -104.769036	Lat/Long Source: Field Measured


Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PA - 10/18/2022 Measured TD: 8320 ft. Vertical TD: 8065 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PA - 10/18/2022
Wellbore Permit			DIRECTIONAL
Permit #:	20064986	Expiration Date:	11/12/2007
Proposed Top PZ Location:	Sec: Twp:	Footage: 660 FNL 2130 FWL
Bottom Hole Location:	Sec:27 Twp: 2N 66W	Footage: 621 FNL 2126 FWL
Proposed Depth/Form:	8320 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:	Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2

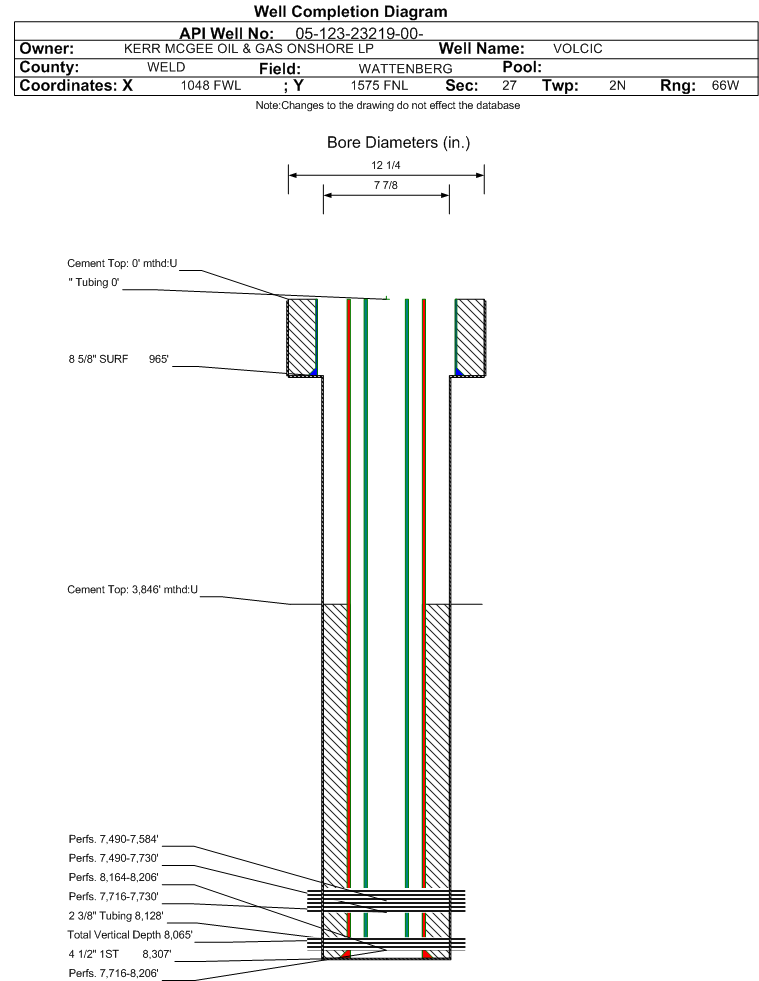

Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 965 ft., Weight: 24 , Citings Type: PLANNED
Cement:	Sacks: 675, Top: 0 ft., Bottom: 965 ft.
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8307 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:	Sacks: 410, Top: 3846 ft., Bottom: 8307 ft.

Wellbore Completed
Completion Date:	11/29/2005
Spud Date:	11/23/2005	Spud Date Is:	ACTUAL
Measured TD:	8320 ft.	Measured PB depth:	8289 ft.
True Vertical TD:	8065 ft.	True Vertical PB depth:	8034 ft.
Top PZ Location:	Sec: Twp:	Footage: 660 FNL 2130 FWL
Bottom Hole Location:	Sec:27 Twp: 2N 66W	Footage: 621 FNL 2126 FWL
Log Types:	AILC, CBL, ML, PEML, CNLD
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 965 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 675, Top: 0 ft., Bottom: 965 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8307 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 235, Top: 6696 ft., Bottom: 8307 ft., Determination Method: CBL
Casing:	String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5202 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 175, Top: 3846 ft., Bottom: 5202 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
SUSSEX	4854 ft.		N	N
NIOBRARA	7411 ft.		N	N
FORT HAYS	7692 ft.		N	N
CODELL	7715 ft.		N	N
J SAND	8160 ft.		N	N

Formation JSND Formation Classification: GW Status: AB - 10/18/2022 Interval Top: 8164 ft. Interval Bottom: 8206 ft.

Completed Information for Formation J SAND

1st Production Date:	7/20/2007	Choke Size:
Formation Name:	J SAND	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	6/11/2010
Treatment Summary:	SET SAND PLUG @ 8000'. OUR INTENT IS TO REMOVE SAND PLUG TO COMMINGLE WELL WITHIN THE NEXT SIX MONTHS.
Formation Treatment
Treatment Date:	7/5/2007
Treatment Summary:	163,464 GALS FLUID & 115,480 LBS 30/50 SND & 2,000 12/20 SAND.

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation JSND.

Perforation Data:
Interval Top:	8164 ft.	# Of Holes:	66
Interval Bottom:	8206 ft.	Hole Size:	0.38 in.

Formation CODL Formation Classification: GW Status: CM - 7/16/2010 Interval Top: 7716 ft. Interval Bottom: 7730 ft.

Completed Information for Formation CODELL

1st Production Date:	6/30/2010	Choke Size:
Formation Name:	CODELL	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	6/23/2010
Treatment Summary:	REPERF CODL 7717-7729 HOLES 24 SIZE 0.38. REFRAC CODL W/179,296 GAL SW & 115,000# 40/70 SAND & 4,000# SB EXCEL.
Formation Treatment
Treatment Date:	1/6/2006
Treatment Summary:	156,152 GALS FLUID & 115,300 # 30/50 SAND

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	0
BBLS_OIL	18
CALC_BBLS_H2O	0
CALC_BBLS_OIL	18
CALC_GOR	2166
CALC_MCF_GAS	39
CASING_PRESS	714
GRAVITY_OIL	47
MCF_GAS	39
TUBING_PRESS	547

Perforation Data:
Interval Top:	7716 ft.	# Of Holes:	80
Interval Bottom:	7730 ft.	Hole Size:	0.38 in.

Formation J-CDL Formation Classification: GW Status: CM - 8/1/2007 Interval Top: 7716 ft. Interval Bottom: 8206 ft.

Completed Information for Formation J-CODELL

1st Production Date:	7/20/2007	Choke Size:	0.469 in.
Formation Name:	J-CODELL	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	11/29/2005
Treatment Summary:

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8128 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	8/1/2007	Test Method:	FLOWING
Hours Tested:		Gas Type:	WET
Gas Disposal:	SOLD
BBLS_H2O	0
BTU_GAS	1276
CALC_BBLS_H2O	0
CALC_BBLS_OIL	1
CALC_GOR	141000
CALC_MCF_GAS	141
CASING_PRESS	790
GRAVITY_OIL	53
TUBING_PRESS	100

Perforation Data:
Interval Top:	7716 ft.	# Of Holes:	122
Interval Bottom:	8206 ft.	Hole Size:

Formation NB-CD Formation Classification: GW Status: AB - 10/18/2022 Interval Top: 7490 ft. Interval Bottom: 7730 ft.

Completed Information for Formation NIOBRARA-CODELL

1st Production Date:	6/30/2010	Choke Size:
Formation Name:	NIOBRARA-CODELL	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	6/23/2010
Treatment Summary:	NBRR PERF 7490-7584 HOLES 64 SIZE 0.38. CODL PERF 7716-7730 HOLES 80 SIZE 0.38.

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BTU_GAS	1262
CALC_BBLS_OIL	9
CALC_GOR	2000
CALC_MCF_GAS	18
CASING_PRESS	100
GRAVITY_OIL	48

Perforation Data:
Interval Top:	7490 ft.	# Of Holes:	144
Interval Bottom:	7730 ft.	Hole Size:	0.38 in.

Formation NBRR Formation Classification: GW Status: CM - 12/3/2010 Interval Top: 7490 ft. Interval Bottom: 7584 ft.

Completed Information for Formation NIOBRARA

1st Production Date:	6/30/2010	Choke Size:
Formation Name:	NIOBRARA	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	6/23/2010
Treatment Summary:	FRAC NBRR W/250 GAL 15% HC1 & 239,455 GAL SW & 200,580# 40/70 SAND & 4,000# SB EXCEL.

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation NBRR.

Perforation Data:
Interval Top:	7490 ft.	# Of Holes:	64
Interval Bottom:	7584 ft.	Hole Size:	0.38 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	10/18/2022
Out Of Service Repurposed	N
Out Of Service	Y	Plugging Due Date 12/31/2030
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

October 2024 - September 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination	MCFE
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
