 Surface Location
 API# 05-123-23196		Well Classification: OW Status: PA - 2/5/2024
Well Name/No:MOSER H #34-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/5/2024
FacilityID:279528LocationID:305583
County:WELD #123Location:SWSE 34 3N65W 6
Field:WATTENBERG - #90750Elevation:4836 ft.
Planned Location:730FSL  1900 FELLat/Long: 40.176508 / -104.646956Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.176610 / -104.646980Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 2/5/2024             Measured TD: 7301 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 2/5/2024
Wellbore PermitDRIFTED
Permit #:20052608 Expiration Date:8/23/2006
Proposed Depth/Form:7300 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: SE4
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:9/11/2005
Spud Date:9/8/2005Spud Date Is:ACTUAL
Measured TD:7301 ft.Measured PB depth:7271 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL/GR/CCL, CDL/CNL/ML, DIL/GR

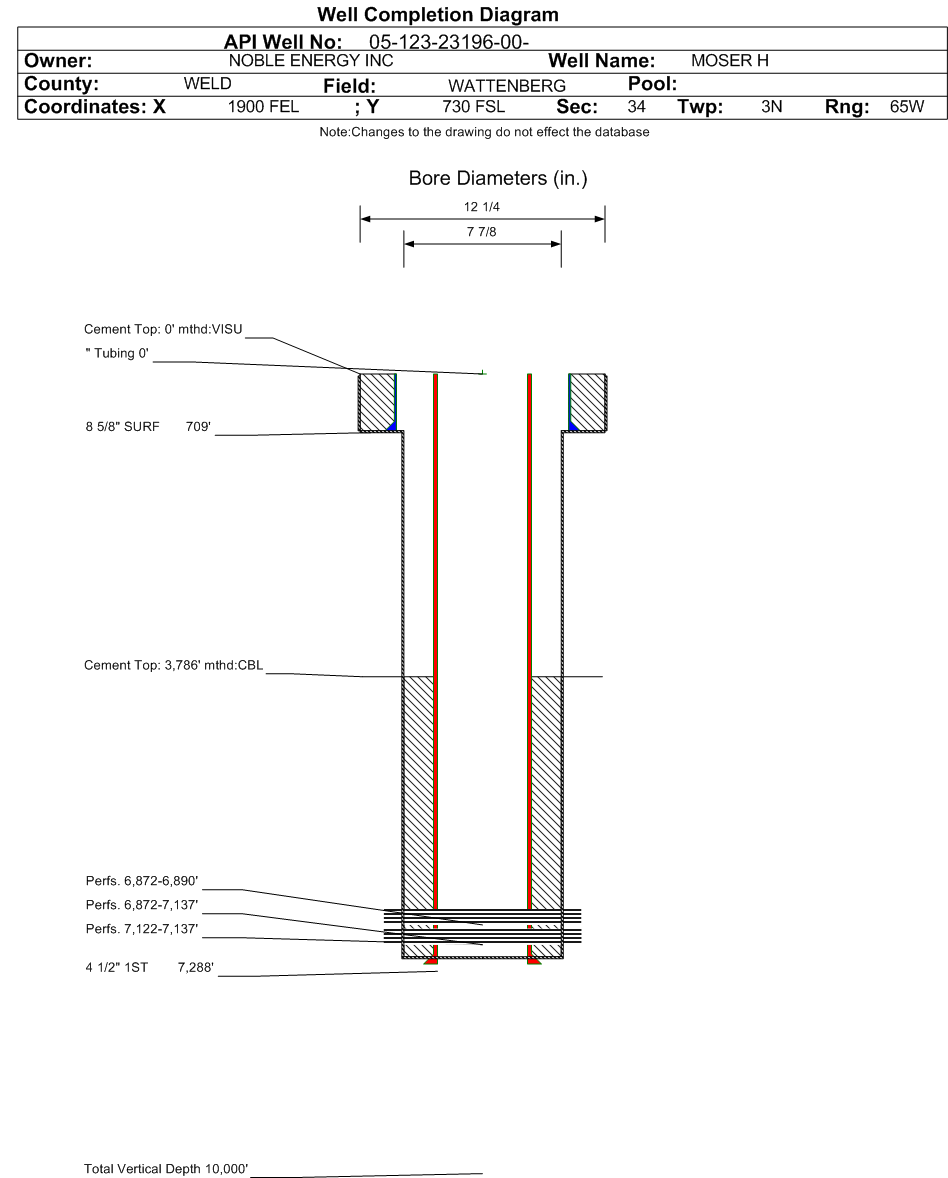

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 709 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 709 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7288 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 620, Top: 3786 ft., Bottom: 7288 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4416 ft.NN
NIOBRARA6830 ft.NN
FORT HAYS7098 ft.NN
CODELL7120 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 2/25/2021                 Interval Top: 7122 ft.    Interval Bottom: 7137 ft.

 Completed Information for Formation CODELL
1st Production Date:10/29/2005Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/28/2005
Treatment Summary:FRAC'D CODELL W/ 128016 GALS OF SILVERSTIM W/ 28# GEL LOADING & 270540# OF 20/40 OTTAWA SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7122 ft.# Of Holes:60
Interval Bottom:7137 ft.Hole Size:0.22 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 2/5/2024                  Interval Top: 6872 ft.    Interval Bottom: 7137 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/29/2005Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/28/2005
Treatment Summary:COMMINGLE CODELL & NIOBRARA
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 48
CALC_GOR 4021
CASING_PRESS 690
MCF_GAS 193
Perforation Data:
Interval Top:6872 ft.# Of Holes:168
Interval Bottom:7137 ft.Hole Size:

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 2/25/2021                 Interval Top: 6872 ft.    Interval Bottom: 6890 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/29/2005Choke Size:
Formation Name:NIOBRARACommingled:
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/28/2005
Treatment Summary:FRAC'D NIOBRARA W/ 70014 GALS OF SLICKWATER, 99372 GALS OF SILVERSTIM W/ 28# GEL LOADING AND 250080# OF PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6872 ft.# Of Holes:108
Interval Bottom:6890 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/05/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
