COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-23126		Well Classification: OW Status: PA - 3/4/2024
Well Name/No:STATE BOOTH #36-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/4/2024
FacilityID:278984LocationID:305543
County:WELD #123Location:NENE 36 7N65W 6
Field:WATTENBERG - #90750Elevation:4842 ft.
Planned Location:478FNL  783 FELLat/Long: 40.535374 / -104.604328Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.535420 / -104.604270Lat/Long Source: Field Measured

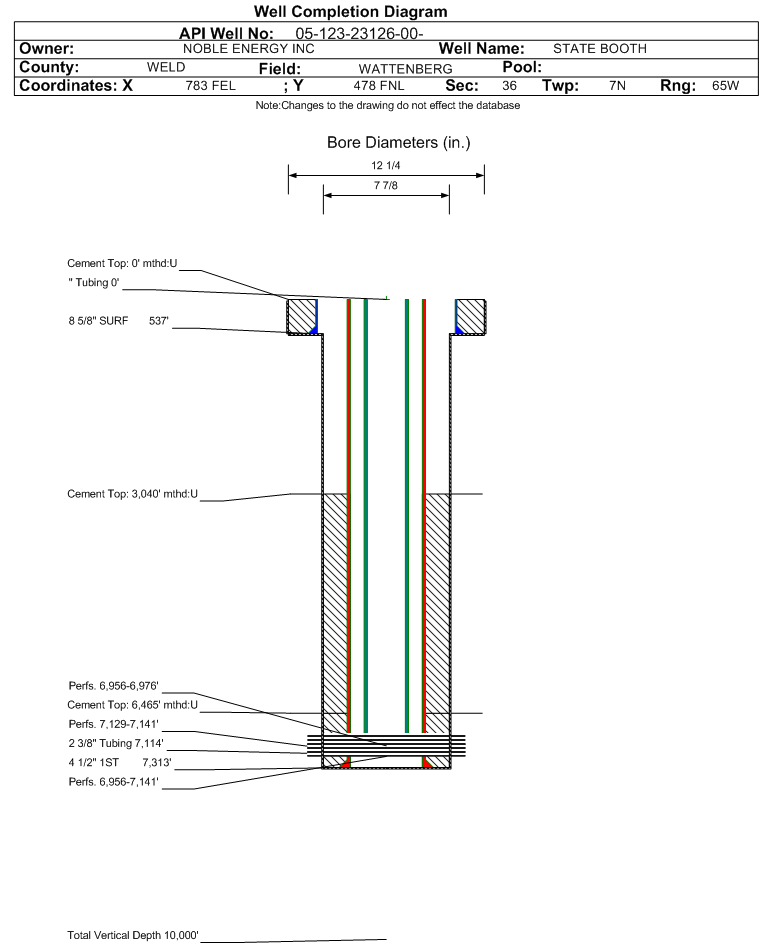

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 3/4/2024             Measured TD: 7313 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 3/4/2024
Wellbore Permit
Permit #:20052154 Expiration Date:7/25/2006
Proposed Depth/Form:7300 ft.
Surface Mineral Owner Same:No
Mineral Owner:STATESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-1 , Unit Acreage: 80, Drill Unit: E2
Wellbore Completed
Completion Date:8/30/2005
Spud Date:8/22/2005Spud Date Is:ACTUAL
Measured TD:7313 ft.Measured PB depth:7288 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL/GR, CDC/GR, DUAL IND.GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 537 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: 537 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7302 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 127, Top: 6465 ft., Bottom: 7302 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7302 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 263, Top: 3040 ft., Bottom: 6465 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3765 ft.4074 ft.NN
NIOBRARA6817 ft.7080 ft.NN
CODELL7127 ft.7144 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 3/1/2010                  Interval Top: 7129 ft.    Interval Bottom: 7141 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/30/2005
Treatment Summary:FRAC'D CODELL/ NIO W/ 347,232# 20/40 SAND USING 105,068 GAL 26# SLIVERSTIM.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7129 ft.# Of Holes:48
Interval Bottom:7141 ft.Hole Size:3.125 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 3/4/2024                  Interval Top: 6956 ft.    Interval Bottom: 7141 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/30/2005
Treatment Summary:RUN TUBING
Tubing Size:2.375 in.Tubing Setting Depth:7114 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:SHALE
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 42
CALC_GOR 762
CASING_PRESS 700
MCF_GAS 32
Perforation Data:
Interval Top:6956 ft.# Of Holes:88
Interval Bottom:7141 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 3/1/2010                  Interval Top: 6956 ft.    Interval Bottom: 6976 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/30/2005
Treatment Summary:FRAC'D CODELL/ NIO W/ 347,232# 20/40 SAND USING 105,068 GAL 26# SLIVERSTIM.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6956 ft.# Of Holes:40
Interval Bottom:6976 ft.Hole Size:3.125 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/04/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2027
Inactive ExceptionN
Noticed InactiveYNoticed Date
01/09/2023
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
