Wellbore #00 Wellbore Classification: OW Status: PA - 6/16/2022 Measured TD: 7480 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 6/16/2022 | | Wellbore Permit | | | Permit #: | 20052127 | Expiration Date: | 7/18/2006 | | Proposed Depth/Form: | 8400 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: PLANNED | | Cement: | Sacks: 225, Top: 3900 ft., Bottom: 6900 ft. |
| | |

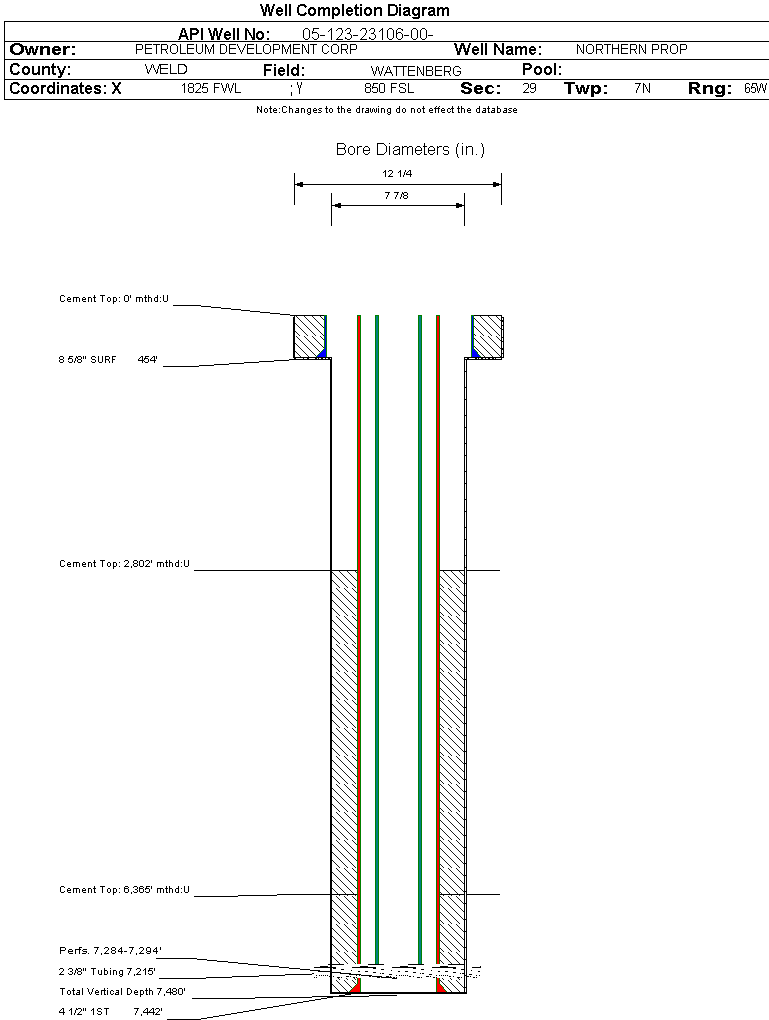

| Wellbore Completed | | Completion Date: | 8/15/2005 | | Spud Date: | 8/6/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7480 ft. | Measured PB depth: | 7442 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | COMPENSATED DENSITY, COMP. NEUTRON, DUAL INDUCTION, GR, CEMENT BOND LOG | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 454 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 454 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7442 ft., Weight: 10.5 , Citings Type: ACTUAL | | Cement: | Sacks: 165, Top: 6365 ft., Bottom: 7442 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7442 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 315, Top: 2802 ft., Bottom: 6365 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 3108 ft. | | N | N | | PARKMAN | 3853 ft. | | N | N | | SUSSEX | 4205 ft. | | N | N | | SHANNON | 4375 ft. | | N | N | | NIOBRARA | 6982 ft. | | N | N | | FORT HAYS | 7232 ft. | | N | N | | CODELL | 7280 ft. | | N | N | | CARLILE | 7323 ft. | | N | N | | GREENHORN | 7353 ft. | | N | N |
Formation CODL Formation Classification: GW Status: AB - 6/16/2022 Interval Top: 7284 ft. Interval Bottom: 7294 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | 0.188 in. | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/15/2005 | | Treatment Summary: | 8/15/05 BJ SERVICES FRACED WITH 2687 BBL OF VISTAR 20# GEL SYSTEM USING 217340# OF 20/40 FRAC SAND AND 8000# OF RESIN COATED SUPER LC 20/40 MESH SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7215 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/17/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BBLS_OIL | 34 | | BTU_GAS | 1402 | | CALC_GOR | 1411 | | CASING_PRESS | 660 | | GRAVITY_OIL | 45 | | MCF_GAS | 48 | | TUBING_PRESS | 600 |
| | Perforation Data: | | Interval Top: | 7284 ft. | # Of Holes: | 24 | | Interval Bottom: | 7294 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 06/16/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
