COGIS - WELL SCOUT CARD

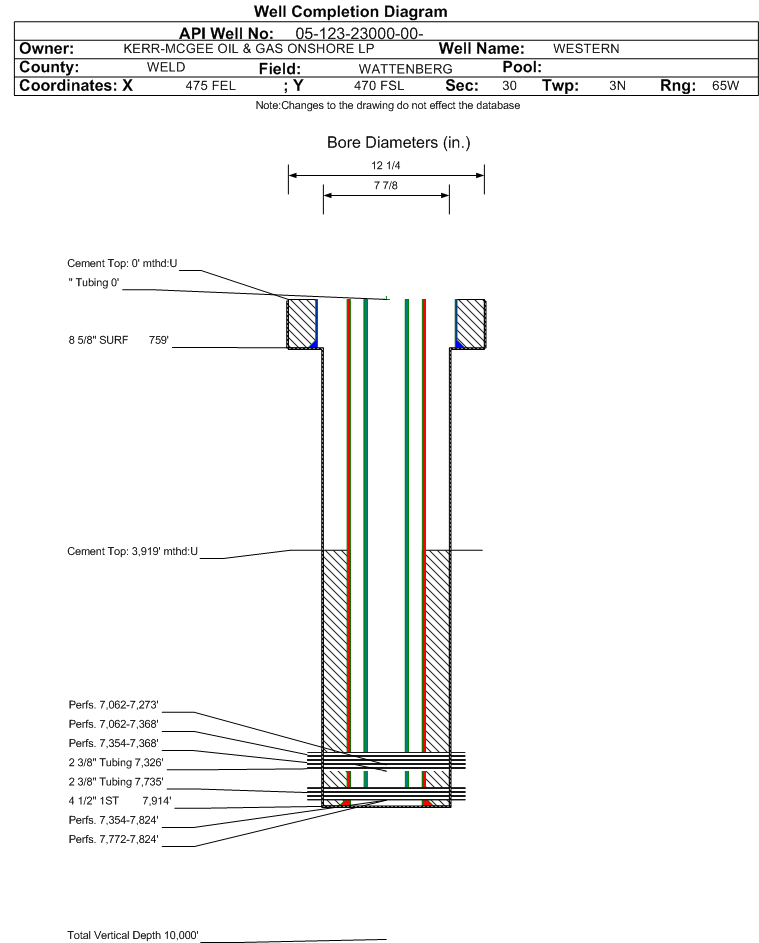

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-23000		Well Classification: OW Status: PA - 4/27/2023
Well Name/No:WESTERN #16-30
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/27/2023
FacilityID:277969LocationID:305457
County:WELD #123Location:SESE 30 3N65W 6
Field:WATTENBERG - #90750Elevation:4925 ft.
Planned Location:470FSL  475 FELLat/Long: 40.190407 / -104.698558Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.190467 / -104.698420Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 7/5/2011
End Date: 7/5/2011
Reported: 8/22/2011
Prior to rule 205A.b.(2)(A)
Days to report: 48
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 4/27/2023             Measured TD: 7952 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 4/27/2023
Wellbore Permit
Permit #:20064843 Expiration Date:11/6/2007
Proposed Depth/Form:7952 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S2SE4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 759 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 535, Top: 0 ft., Bottom: 759 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7914 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 750, Top: 3919 ft., Bottom: 7914 ft.
Wellbore Completed
Completion Date:6/27/2005
Spud Date:6/6/2005Spud Date Is:ACTUAL
Measured TD:7952 ft.Measured PB depth:7897 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL, GR, CDCN, DIGL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 759 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 535, Top: 0 ft., Bottom: 759 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7914 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 750, Top: 3919 ft., Bottom: 7914 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4322 ft.NN
NIOBRARA7057 ft.NN
FORT HAYS7328 ft.NN
CODELL7352 ft.NN
J SAND7763 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  AB - 4/27/2023                 Interval Top: 7772 ft.    Interval Bottom: 7824 ft.

 Completed Information for Formation J SAND
1st Production Date:5/21/2007Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/21/2011
Treatment Summary:SAND PLUG SET @ 7897
Formation Treatment
Treatment Date:5/11/2007
Treatment Summary:PERF & FRAC JSND W/156,576 GALS FLUID & 122,740# 30/50 SAND. 7772-7824 (2SPF).
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7772 ft.# Of Holes:104
Interval Bottom:7824 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 7/21/2011                 Interval Top: 7354 ft.    Interval Bottom: 7368 ft.

 Completed Information for Formation CODELL
1st Production Date:1/28/2005Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/5/2011
Treatment Summary:Re-Frac Codell down 4-1/2" Csg w/ 221,340 gal Slickwater w/ 150,060# 40/70, 4,000# SB Excel.
Formation Treatment
Treatment Date:6/27/2005
Treatment Summary:CODELL 141746 GAL FLUID 84017 LBS 30/50 SAND FRAC INFO REPRESENTS: CODELL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 20
CALC_BBLS_H2O 0
CALC_BBLS_OIL 20
CALC_GOR 13050
CALC_MCF_GAS 261
CASING_PRESS 431
GRAVITY_OIL 61
MCF_GAS 261
TUBING_PRESS 0
Perforation Data:
Interval Top:7354 ft.# Of Holes:56
Interval Bottom:7368 ft.Hole Size:0.23 in.

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 6/25/2007                 Interval Top: 7354 ft.    Interval Bottom: 7824 ft.

 Completed Information for Formation J-CODELL
1st Production Date:5/21/2007Choke Size:0.313 in.
Formation Name:J-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/27/2005
Treatment Summary:CDL PERFS 06/22/2005 7354-7368.
Tubing Size:2.375 in.Tubing Setting Depth:7735 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/25/2007Test Method:FLOWING
Hours Tested:Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1222
CALC_BBLS_OIL 3
CALC_GOR 67000
CALC_MCF_GAS 201
CASING_PRESS 450
GRAVITY_OIL 56
TUBING_PRESS 400
Perforation Data:
Interval Top:7354 ft.# Of Holes:160
Interval Bottom:7824 ft.Hole Size:

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 4/27/2023                 Interval Top: 7062 ft.    Interval Bottom: 7368 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/7/2011Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/5/2011
Treatment Summary:CDRF-NBREC
Tubing Size:2.375 in.Tubing Setting Depth:7326 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/19/2011Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 35
BTU_GAS 1216
CALC_BBLS_OIL 35
CALC_GOR 4629
CALC_MCF_GAS 162
CASING_PRESS 1708
GRAVITY_OIL 54
MCF_GAS 162
TUBING_PRESS 1078
Perforation Data:
Interval Top:7062 ft.# Of Holes:118
Interval Bottom:7368 ft.Hole Size:0.43 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 8/4/2011                  Interval Top: 7062 ft.    Interval Bottom: 7273 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/7/2011Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/5/2011
Treatment Summary:Frac Niobrara A & B & C down 4-1/2" Csg w/ 252 gal 15% HCl & 245,574 gal Slickwater w/ 200,340# 40/70, 4,000# SB Excel.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7062 ft.# Of Holes:62
Interval Bottom:7273 ft.Hole Size:0.43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/27/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
