COGIS - WELL SCOUT CARD

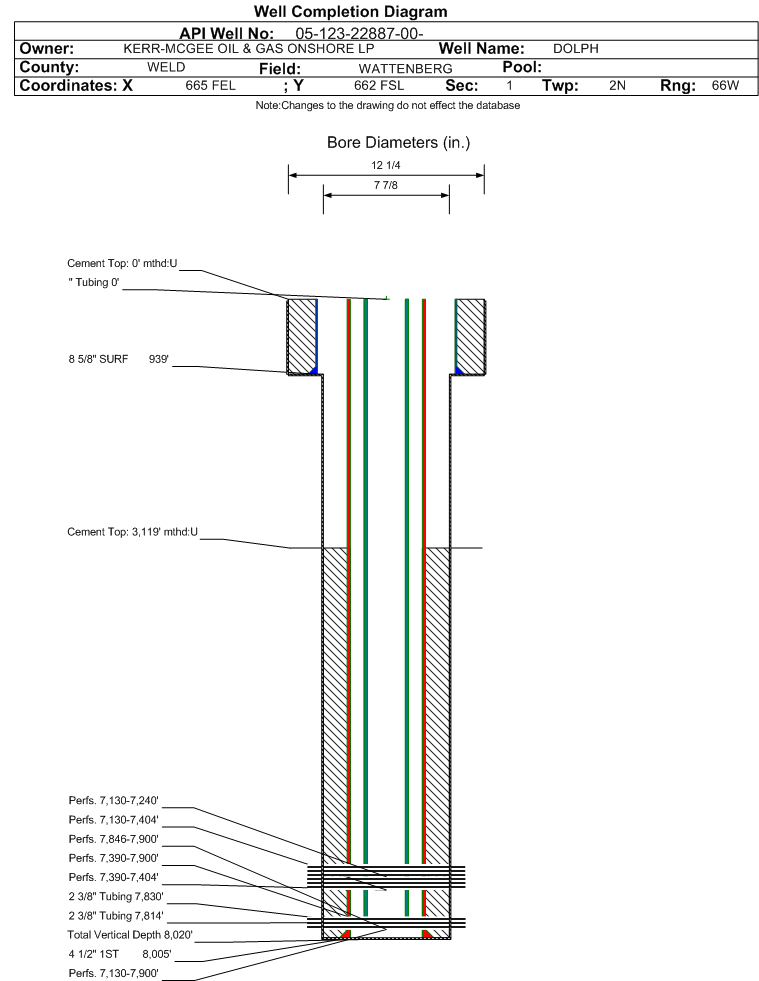

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-22887		Well Classification: OW Status: SI - 3/1/2022
Well Name/No:DOLPH #16-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date3/1/2022
FacilityID:277056LocationID:305379
County:WELD #123Location:SESE 1 2N66W 6
Field:WATTENBERG - #90750Elevation:4990 ft.
Basin:DENVER (DJ) BASIN
Planned Location:662FSL  665 FELLat/Long: 40.161787 / -104.718298Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.161980 / -104.718220Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 6/1/2011
End Date: 6/1/2011
Reported: 8/22/2011
Prior to rule 205A.b.(2)(A)
Days to report: 82
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 3/1/2022             Measured TD: 8020 ft.    Vertical TD: 8020 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 3/1/2022
Wellbore Permit
Permit #:20062805 Expiration Date:7/20/2007
Proposed Depth/Form:8020 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E2SE
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 939 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 660, Top: 0 ft., Bottom: 939 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8005 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 700, Top: 3119 ft., Bottom: 8005 ft.
Wellbore Completed
Completion Date:5/9/2005
Spud Date:4/21/2005Spud Date Is:ACTUAL
Measured TD:8020 ft.Measured PB depth:7989 ft.
True Vertical TD:8020 ft.True Vertical PB depth:7989 ft.
Log Types:CBL, CDCN, GR, DIGL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 939 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 660, Top: 0 ft., Bottom: 939 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8005 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 3119 ft., Bottom: 8005 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4435 ft.NN
NIOBRARA7106 ft.NN
FORT HAYS7366 ft.NN
CODELL7390 ft.NN
J SAND7844 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  SI - 3/1/2022                  Interval Top: 7846 ft.    Interval Bottom: 7900 ft.

 Completed Information for Formation J SAND
1st Production Date:9/27/2006Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/30/2012
Treatment Summary:JS PERF 7846-7900 SHOTS 94 SIZE .38 3/30/2012 - Cleared out sand plug over JS to commingle well 4/10/2012 - Commingled J-Niobrara-Codell production
Formation Treatment
Treatment Date:5/23/2011
Treatment Summary:SAND PLUG SET @ 7646'.
Formation Treatment
Treatment Date:9/15/2006
Treatment Summary:PERF & FRAC JSND W/ 157,794 GALS FLUID & 119,640# 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7846 ft.# Of Holes:94
Interval Bottom:7900 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 6/16/2011                 Interval Top: 7390 ft.    Interval Bottom: 7404 ft.

 Completed Information for Formation CODELL
1st Production Date:5/19/2005Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/1/2011
Treatment Summary:Re-Frac Codell down 4-1/2" Csg w/ 196,350 gal Slickwater w/ 150,020# 40/70, 4,000# SB Excel, 0# .
Formation Treatment
Treatment Date:5/9/2005
Treatment Summary:15361 GAL FLUID FRAC INFO REPRESENTS: CODL 116560 LBS 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 43
CALC_BBLS_OIL 43
CALC_GOR 2560
CALC_MCF_GAS 110
CASING_PRESS 582
GRAVITY_OIL 51
MCF_GAS 110
TUBING_PRESS 268
Perforation Data:
Interval Top:7390 ft.# Of Holes:42
Interval Bottom:7404 ft.Hole Size:0.38 in.

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 10/25/2006                Interval Top: 7390 ft.    Interval Bottom: 7900 ft.

 Completed Information for Formation J-CODELL
1st Production Date:9/27/2006Choke Size:32.000 in.
Formation Name:J-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/9/2005
Treatment Summary:CODL PERFS 5/2005 7390-7404
Tubing Size:2.375 in.Tubing Setting Depth:7830 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/25/2006Test Method:FLOWING
Hours Tested:Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 21
CALC_GOR 8952
CALC_MCF_GAS 188
CASING_PRESS 650
GRAVITY_OIL 51
TUBING_PRESS 360
Perforation Data:
Interval Top:7390 ft.# Of Holes:
Interval Bottom:7900 ft.Hole Size:

Formation JNBCD                   Formation Classification:  OW                   Status:  CM - 4/11/2012                 Interval Top: 7130 ft.    Interval Bottom: 7900 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:4/10/2012Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/30/2012
Treatment Summary:NB PERF 7130-7240 SHOTS 66 SIZE .42 CD PERF 7390-7404 SHOTS 56 SIZE .38 JS PERF 7846-7900 SHOTS 94 SIZE .38 3/30/2012 - Cleared out sand plug over JS to commingle well 4/10/2012 - Commingled J-Niobrara-Codell production
Tubing Size:2.375 in.Tubing Setting Depth:7814 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/11/2012Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 5
BTU_GAS 1246
CALC_BBLS_OIL 5
CALC_GOR 6000
CALC_MCF_GAS 30
CASING_PRESS 736
GRAVITY_OIL 51
MCF_GAS 30
TUBING_PRESS 705
Perforation Data:
Interval Top:7130 ft.# Of Holes:216
Interval Bottom:7900 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  SI - 3/1/2022                  Interval Top: 7130 ft.    Interval Bottom: 7404 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:6/8/2011Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/1/2011
Treatment Summary:NBRC -CDRF
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/13/2011Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 11
BTU_GAS 1254
CALC_BBLS_OIL 11
CALC_GOR 39454
CALC_MCF_GAS 434
CASING_PRESS 2025
GRAVITY_OIL 50
MCF_GAS 434
Perforation Data:
Interval Top:7130 ft.# Of Holes:108
Interval Bottom:7404 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 7/29/2011                 Interval Top: 7130 ft.    Interval Bottom: 7240 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:6/8/2011Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/1/2011
Treatment Summary:Frac Niobrara A & B & C down 4-1/2" Csg w/ 252 gal 15% HCl & 236,544 gal Slickwater w/ 200,640# 40/70, 4,000# SB Excel, 0#
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7130 ft.# Of Holes:66
Interval Bottom:7240 ft.Hole Size:0.42 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
12/31/2021
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
