COGIS - WELL SCOUT CARD

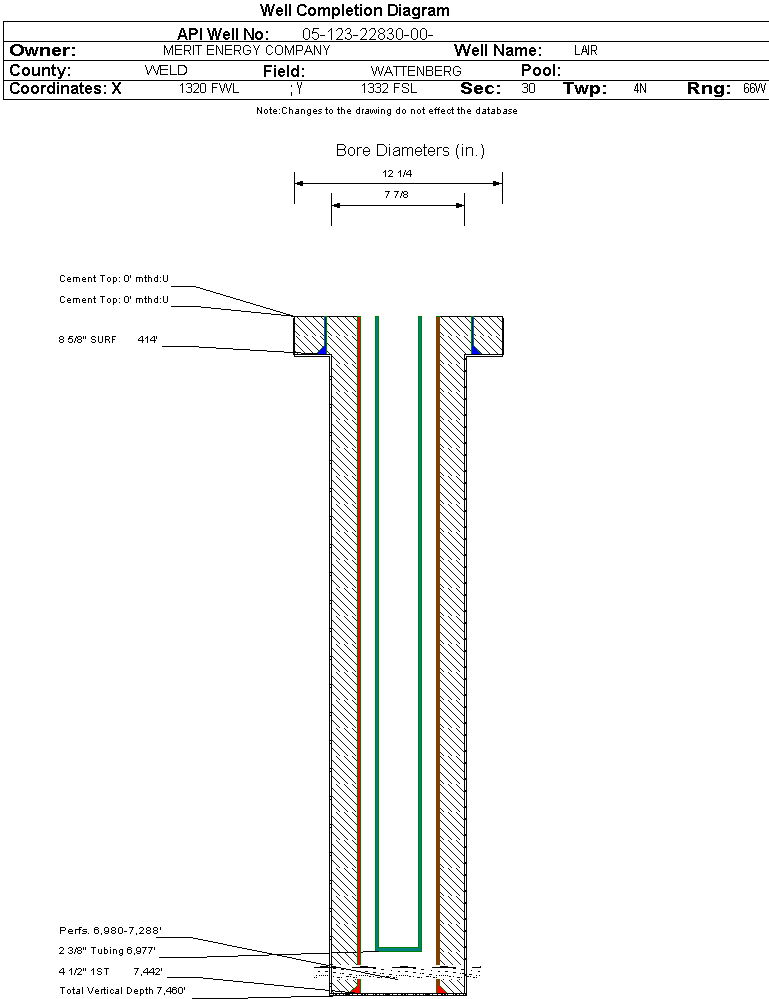

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-22830		Well Classification: GW Status: PA - 9/16/2021
Well Name/No:LAIR #5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/16/2021
FacilityID:276785LocationID:305347
County:WELD #123Location:NESW 30 4N66W 6
Field:WATTENBERG - #90750Elevation:4758 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1332FSL  1320 FWLLat/Long: 40.278895 / -104.825032Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.279167 / -104.825000Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 9/16/2021             Measured TD: 7460 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 9/16/2021
Wellbore Permit
Permit #:20050691 Expiration Date:3/24/2006
Proposed Depth/Form:7400 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: SW
Wellbore Completed
Completion Date:4/21/2005
Spud Date:4/7/2005Spud Date Is:ACTUAL
Measured TD:7460 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:GR/CBL/CNL/DIL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 414 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 414 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7442 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 610, Top: 0 ft., Bottom: 7450 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3700 ft.NN
SUSSEX4163 ft.NN
SHANNON4754 ft.NN
NIOBRARA6978 ft.NN
FORT HAYS7246 ft.NN
CODELL7268 ft.NN

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 9/16/2021                 Interval Top: 6980 ft.    Interval Bottom: 7288 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/21/2005
Treatment Summary:FRAC CODL(7268-7288')W/122,100 GAL FRAC FLD +218,480# 30/50 SAND,12,000# 12/20#SAND. FRAC NB(6980-7186') W/181,572 GAL FRAC +238,260# 30/50 SAND,12,000# 12/20#SAND.
Tubing Size:2.375 in.Tubing Setting Depth:6977 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/9/2005Test Method:
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 12
CALC_GOR 13083
CASING_PRESS 550
MCF_GAS 157
TUBING_PRESS 250
Perforation Data:
Interval Top:6980 ft.# Of Holes:248
Interval Bottom:7288 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/16/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
