Wellbore #00 Wellbore Classification: GW Status: AB - 1/10/2025 Measured TD: 8145 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 1/10/2025 | | Wellbore Permit | DRIFTED | | Permit #: | 20043201 | Expiration Date: | 1/26/2006 | | Proposed Depth/Form: | 8200 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 320, Drill Unit: N2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: N2 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 320, Drill Unit: N2 | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5200 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 300, Top: 4000 ft., Bottom: 5200 ft. |
| | |

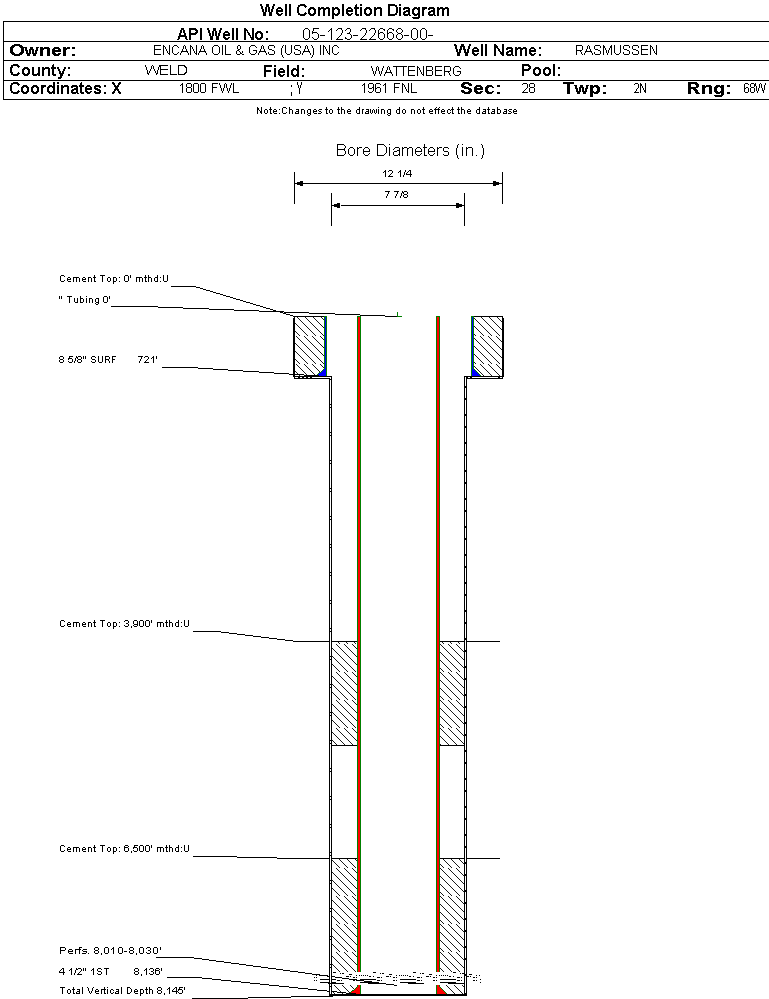

| Wellbore Completed | | Completion Date: | 3/2/2005 | | Spud Date: | 2/7/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8145 ft. | Measured PB depth: | 8134 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL, DUAL INDUCTION, COMPENSATED NEUTRON | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 721 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 500, Top: 0 ft., Bottom: 721 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8136 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 245, Top: 6500 ft., Bottom: 8136 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5154 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 275, Top: 3920 ft., Bottom: 5154 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4325 ft. | | N | N | | SHANNON | 4878 ft. | | N | N | | NIOB-FT HYS-CODELL-SUSSEX | 7354 ft. | | N | N | | FORT HAYS | 7542 ft. | | N | N | | CODELL | 7562 ft. | | N | N | | MOWRY | 7985 ft. | | N | N | | J SAND | 7999 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 1/10/2025 Interval Top: 8010 ft. Interval Bottom: 8030 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/2/2005 | | Treatment Summary: | J SAND COMPLETION. FRAC'D THE J SAND (8010'-8030') WITH 187,454 GAL FRAC FLUID WITH 301,200# SAND. 02/27/05. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/6/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 165 | | BBLS_OIL | 0 | | CASING_PRESS | 1150 | | MCF_GAS | 501 | | TUBING_PRESS | 850 |
| | Perforation Data: | | Interval Top: | 8010 ft. | # Of Holes: | 40 | | Interval Bottom: | 8030 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 01/10/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 725 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.336 |
| Average MCFE per Day | 1.949 |
| Federal Financial Assurance | i | |
|
|
