Wellbore #00 Wellbore Classification: OW Status: AB - 6/4/2025 Measured TD: 7178 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 6/4/2025 | | Wellbore Permit | | | Permit #: | 20054492 | Expiration Date: | 12/20/2006 | | Proposed Depth/Form: | 8135 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DK-J , Formation: DAKOTA-JSND , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: W2SE4 | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 8135 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 225, Top: 3635 ft., Bottom: 6635 ft. |
| | |

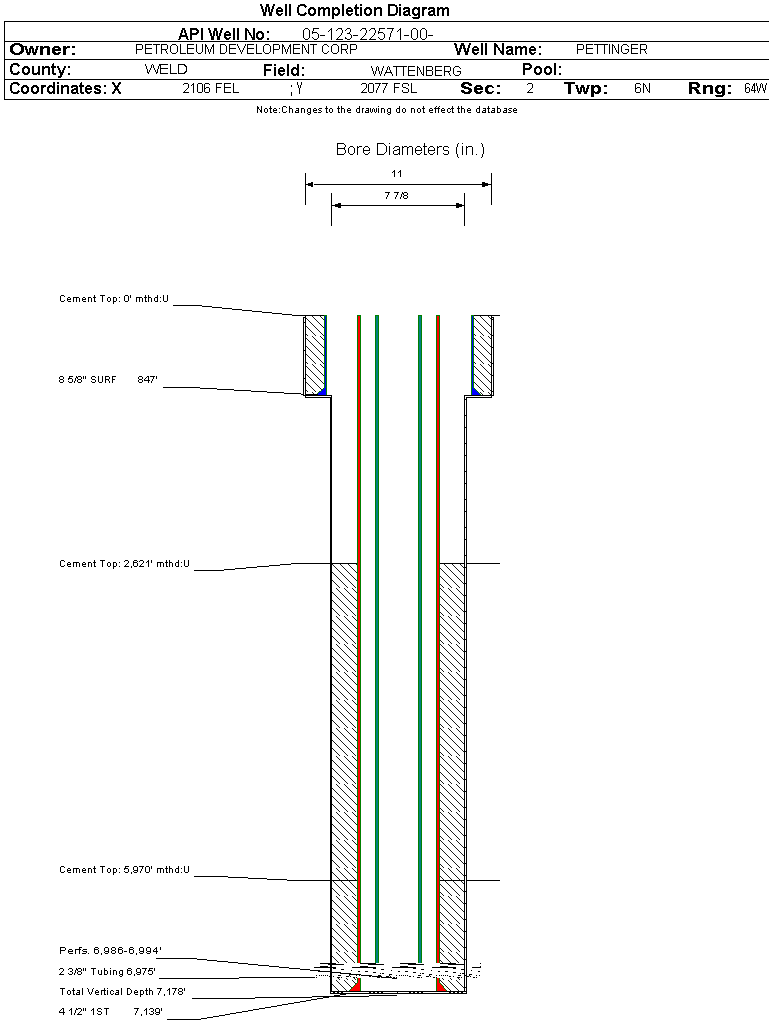

| Wellbore Completed | | Completion Date: | 1/9/2006 | | Spud Date: | 1/5/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7178 ft. | Measured PB depth: | 7139 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | COMPENSATED DENSITY, COMPENSATED NEUTRON, DUAL INDUCTION, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 847 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 0 ft., Bottom: 847 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7140 ft., Weight: 10.5 , Citings Type: ACTUAL | | Cement: | Sacks: 170, Top: 5970 ft., Bottom: 7140 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5970 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 295, Top: 2621 ft., Bottom: 5970 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3645 ft. | | N | N | | SUSSEX | 4054 ft. | | N | N | | SHANNON | 4311 ft. | | N | N | | NIOBRARA | 6678 ft. | | N | N | | FORT HAYS | 6936 ft. | | N | N | | CODELL | 6982 ft. | | N | N |
Formation CODL Formation Classification: OW Status: AB - 6/4/2025 Interval Top: 6986 ft. Interval Bottom: 6994 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 2/28/2006 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/25/2006 | | Treatment Summary: | 2,619 BBL 20# VISTAR GEL; 217,560# 20/40 FRAC SAND; 8,000# SUPER LC 20/40 RESIN COATED SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BBLS_OIL | 21 | | BTU_GAS | 1451 | | CALC_BBLS_H2O | 1 | | CALC_BBLS_OIL | 21 | | CALC_GOR | 2619 | | CALC_MCF_GAS | 55 | | CASING_PRESS | 950 | | GRAVITY_OIL | 45 | | MCF_GAS | 55 | | TUBING_PRESS | 950 |
| | Perforation Data: | | Interval Top: | 6986 ft. | # Of Holes: | 24 | | Interval Bottom: | 6994 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 06/04/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
