Facility Detail

COGIS - WELL SCOUT CARD

Insp

Surface Location
API# 05-123-22504

Well Classification: OW

Status: PA - 10/1/2021

Well Name/No:

FRICO #17-14
(Click Well Name for Production Data)

Click Here for Transporter Gatherer Info

Operator:

NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)

Federal Or State Lease #:

Facility Status:

Status Date

10/1/2021

FacilityID:

274249

LocationID:

332632

County:

WELD #123

Location:

NENE 14 3N65W 6

Field:

WATTENBERG - #90750

Elevation:

4810 ft.

Planned Location:

1291FNL 1295 FEL

Lat/Long: 40.229027 / -104.625506

Lat/Long Source: Calculated From Footages

As Drilled Location:

Footages Not Available

Lat/Long: 40.228920 / -104.625590

Lat/Long Source: Field Measured

Disclosure: Sidetrack #00
Start Date: 4/25/2011
End Date: 4/25/2011
Reported: 5/24/2011
Prior to rule 205A.b.(2)(A)
Days to report: 29

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: OW Status: PA - 10/1/2021 Measured TD: 7715 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: OW PA - 10/1/2021
Wellbore Permit
Permit #:	20062801	Expiration Date:	6/27/2007
Proposed Depth/Form:	7715 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:	Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 32, Drill Unit: N2
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 726 ft., Weight: 24 , Citings Type: PLANNED
Cement:	Sacks: 510, Top: 0 ft., Bottom: 726 ft.
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7718 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:	Sacks: 670, Top: 3744 ft., Bottom: 7718 ft.

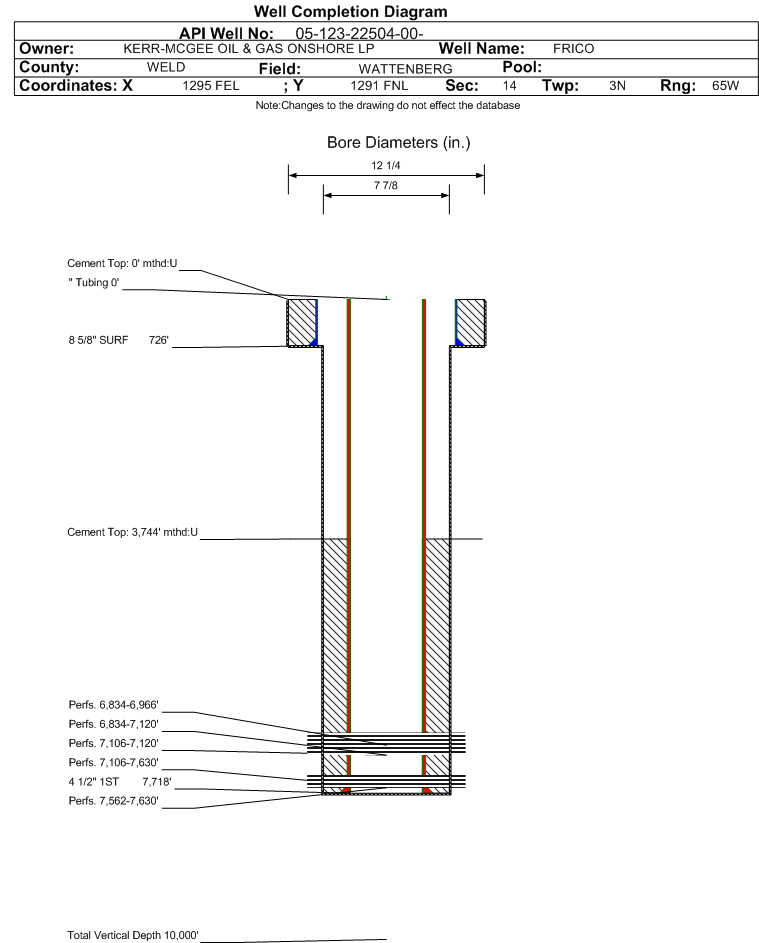

Wellbore Completed
Completion Date:	4/1/2005
Spud Date:	3/19/2005	Spud Date Is:	ACTUAL
Measured TD:	7715 ft.	Measured PB depth:	7689 ft.
True Vertical TD:		True Vertical PB depth:
Log Types:	CNLD, ML, AILC, CBL, CVL
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 726 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 510, Top: 0 ft., Bottom: 726 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7717 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 670, Top: 3744 ft., Bottom: 7717 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
SUSSEX	4418 ft.		N	N
NIOBRARA	6820 ft.		N	N
FORT HAYS	7080 ft.		N	N
CODELL	7105 ft.		N	N
D SAND	7500 ft.		N	N
J SAND	7560 ft.		N	N

Formation JSND Formation Classification: OW Status: AB - 10/1/2021 Interval Top: 7562 ft. Interval Bottom: 7630 ft.

Completed Information for Formation J SAND

1st Production Date:	8/30/2006	Choke Size:
Formation Name:	J SAND	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	4/1/2005
Treatment Summary:	FRAC J SAND W/161,903 GALS FLUID & 119,120# 30/50 SAND JSND PERFS: 7562' - 7630'

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation JSND.

Perforation Data:
Interval Top:	7562 ft.	# Of Holes:	126
Interval Bottom:	7630 ft.	Hole Size:	0.38 in.

Formation CODL Formation Classification: OW Status: CM - 5/10/2011 Interval Top: 7106 ft. Interval Bottom: 7120 ft.

Completed Information for Formation CODELL

1st Production Date:	4/27/2011	Choke Size:
Formation Name:	CODELL	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	4/25/2011
Treatment Summary:	CD REPERF (4-19-11) 7106-7116 HOLES 10 SIZE .38 Re-Frac Codell down 4-1/2" Csg w/ 209,076 gal Slickwater w/ 151,040# 40/70, 4,000# SB Excel, 0# .
Formation Treatment
Treatment Date:	4/1/2005
Treatment Summary:	CODELL: 147878 GAL FLUID 115660 LBS 30/50 SAND FRAC INFO REPRESENTS: CODELL

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	0
BBLS_OIL	30
CALC_BBLS_H2O	0
CALC_BBLS_OIL	30
CALC_GOR	11900
CALC_MCF_GAS	357
CASING_PRESS	1406
GRAVITY_OIL	58
MCF_GAS	357
TUBING_PRESS	1376

Perforation Data:
Interval Top:	7106 ft.	# Of Holes:	66
Interval Bottom:	7120 ft.	Hole Size:	0.38 in.

Formation J-CDL Formation Classification: GW Status: CM - 9/19/2006 Interval Top: 7106 ft. Interval Bottom: 7630 ft.

Completed Information for Formation J-CODELL

1st Production Date:	8/30/2006	Choke Size:	0.281 in.
Formation Name:	J-CODELL	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	8/18/2006
Treatment Summary:	J-REC, PERF J, FRAC J SAND W/ 161,903 GALS FLUID & 119,120# 30/50 SAND. CODL PERFS 03/2005 7106-7120. JSND PERFS 08/2006 7562-7630

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	9/19/2006	Test Method:	FLOWING
Hours Tested:		Gas Type:	WET
Gas Disposal:	SOLD
CALC_BBLS_H2O	0
CALC_BBLS_OIL	23
CALC_GOR	13478
CALC_MCF_GAS	310
CASING_PRESS	1037
GRAVITY_OIL	55
TUBING_PRESS	854

Perforation Data:
Interval Top:	7106 ft.	# Of Holes:	126
Interval Bottom:	7630 ft.	Hole Size:	0.38 in.

Formation NB-CD Formation Classification: OW Status: AB - 10/1/2021 Interval Top: 6834 ft. Interval Bottom: 7120 ft.

Completed Information for Formation NIOBRARA-CODELL

1st Production Date:	4/27/2011	Choke Size:
Formation Name:	NIOBRARA-CODELL	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	4/25/2011
Treatment Summary:	CDRF-NBREC

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	5/3/2011	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	SHALE
Gas Disposal:	SOLD
BBLS_OIL	77
BTU_GAS	1209
CALC_BBLS_OIL	77
CALC_GOR	1896
CALC_MCF_GAS	146
CASING_PRESS	1400
GRAVITY_OIL	56
MCF_GAS	146

Perforation Data:
Interval Top:	6834 ft.	# Of Holes:	132
Interval Bottom:	7120 ft.	Hole Size:	0.38 in.

Formation NBRR Formation Classification: OW Status: CM - 6/10/2011 Interval Top: 6834 ft. Interval Bottom: 6966 ft.

Completed Information for Formation NIOBRARA

1st Production Date:	4/27/2011	Choke Size:
Formation Name:	NIOBRARA	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	4/25/2011
Treatment Summary:	Frac Niobrara A & B & C down 4-1/2" Csg w/ 250 gal 15% HCl & 245,366 gal Slickwater w/ 201,160# 40/70, 4,000# SB Excel, 0# .

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation NBRR.

Perforation Data:
Interval Top:	6834 ft.	# Of Holes:	66
Interval Bottom:	6966 ft.	Hole Size:	0.42 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	10/01/2021
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

May 2024 - April 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
