Wellbore #00 Wellbore Classification: OW Status: AB - 11/7/2024 Measured TD: 7333 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 11/7/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042090 | Expiration Date: | 9/29/2005 | | Proposed Top PZ Location: | Sec:4 Twp: 6N 64W | Footage: 860 FSL 647 FEL | | Bottom Hole Location: | Sec:4 Twp: 6N 64W | Footage: 860 FSL 647 FEL | | Proposed Depth/Form: | 8300 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKJNC , Formation: DAKOTA-J-NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E/2SE | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 8300 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 3800 ft., Bottom: 6800 ft. |
| | |

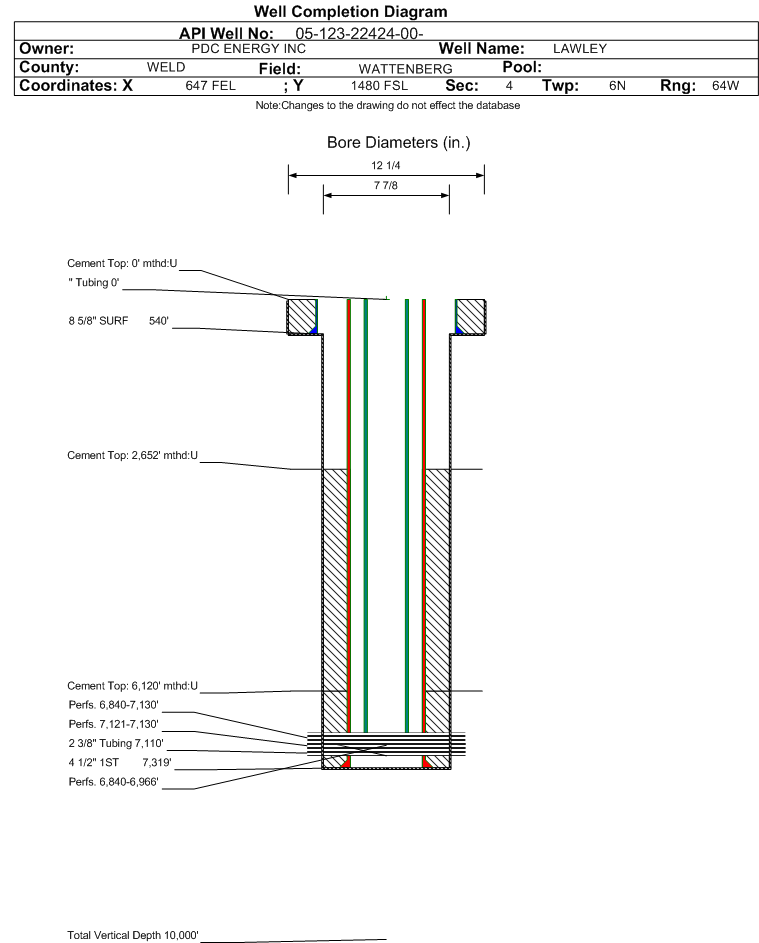

| Wellbore Completed | | Completion Date: | 11/12/2004 | | Spud Date: | 10/21/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 7333 ft. | Measured PB depth: | 7319 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Top PZ Location: | Sec:4 Twp: 6N 64W | Footage: 860 FSL 647 FEL | | Bottom Hole Location: | Sec:4 Twp: 6N 64W | Footage: 860 FSL 647 FEL | | Log Types: | GR, IND, DENSITY, NEUTRON, CBL | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 540 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 380, Top: 0 ft., Bottom: 540 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7319 ft., Weight: 10.5 , Citings Type: ACTUAL | | Cement: | Sacks: 455, Top: 2652 ft., Bottom: 7319 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 2600 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 392, Top: 0 ft., Bottom: 2600 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 0 ft., Depth: 2483 ft., Bottom: 2483 ft., Sacks: 392, Method: 1 INCH | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2818 ft. | | N | N | | PARKMAN | 3791 ft. | | N | N | | SUSSEX | 4205 ft. | | N | N | | SHANNON | 4530 ft. | | N | N | | NIOBRARA | 6818 ft. | | N | N | | CODELL | 7120 ft. | | N | N | | CARLILE | 7152 ft. | | N | N | | GREENHORN | 7186 ft. | | N | N |
Formation CODL Formation Classification: OW Status: CM - 9/12/2011 Interval Top: 7121 ft. Interval Bottom: 7130 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/9/2011 | | Treatment Summary: | RePerf'd Codell 7121-7130' (24 new holes)
Re-Frac'd Codell w/ 119 bbl activee pad, 594 bbls of 26# pHaser pad, 2119 bbls of 26# pHaser, 217000# 20/40 Preferd Rock, 8000# of AcFrac 20/40 SB Excel. | | Formation Treatment | | Treatment Date: | 11/12/2004 | | Treatment Summary: | 11/12/04 BJ SERVICES FRACED WITH 2542 BBL OF 20# VISTAR GEL,217,360# OF 20/40 MESH SAND AND 8,000# OF 20/40 SUPER LC RESIN SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BBLS_OIL | 27 | | CALC_GOR | 2111 | | CASING_PRESS | 665 | | GRAVITY_OIL | 42 | | MCF_GAS | 57 | | TUBING_PRESS | 615 |
| | Perforation Data: | | Interval Top: | 7121 ft. | # Of Holes: | 48 | | Interval Bottom: | 7130 ft. | Hole Size: | 0.40625 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 11/7/2024 Interval Top: 6840 ft. Interval Bottom: 7130 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 8/16/2011 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7110 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/1/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 8 | | BBLS_OIL | 21 | | BTU_GAS | 1298 | | CALC_BBLS_H2O | 8 | | CALC_BBLS_OIL | 21 | | CALC_GOR | 2381 | | CALC_MCF_GAS | 50 | | CASING_PRESS | 1650 | | GRAVITY_OIL | 49 | | MCF_GAS | 50 | | TUBING_PRESS | 525 |
| | Perforation Data: | | Interval Top: | 6840 ft. | # Of Holes: | 72 | | Interval Bottom: | 7130 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: OW Status: CM - 10/4/2011 Interval Top: 6840 ft. Interval Bottom: 6966 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/9/2011 | | Treatment Summary: | Perf'd Niobrara "A" 6840-6842' (4 holes), Niobrara "B" 6958-6966'(24 holes)
Frac'd Niobrara with 1549 bbls of Slickwater pad, 146 bbls of pHaser 20# pad, 2345 bbls of pHaser 20# fluid system and 238000# of 24/40, 12000 # 20/40 SB Excel. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6840 ft. | # Of Holes: | 28 | | Interval Bottom: | 6966 ft. | Hole Size: | 0.421875 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 11/07/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
