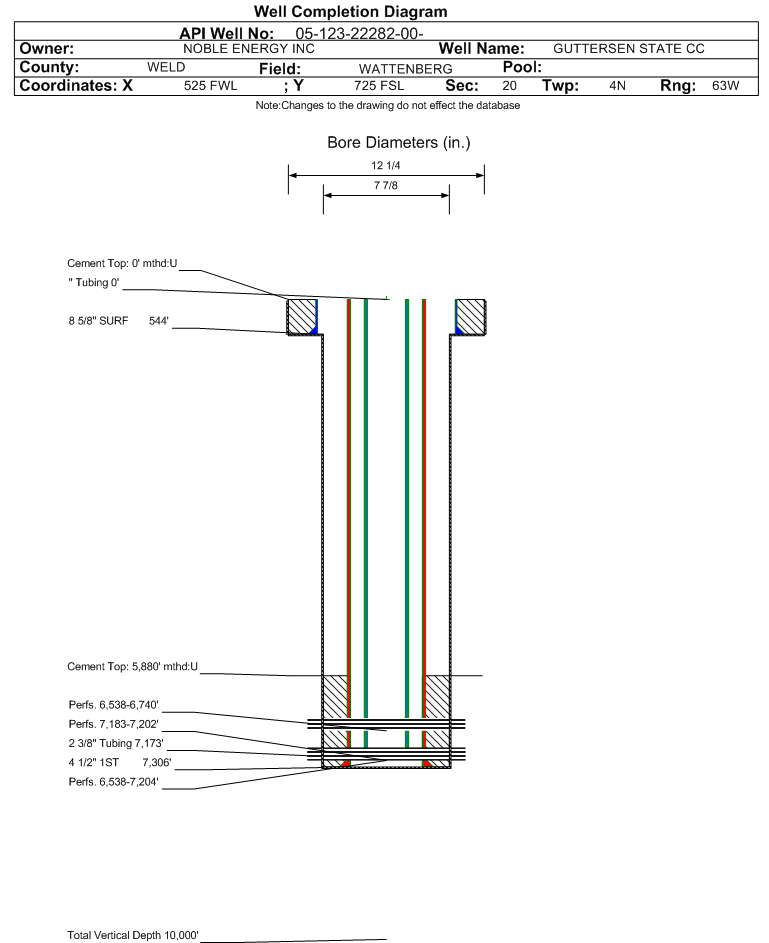

Wellbore #00 Wellbore Classification: GW Status: AB - 5/19/2023 Measured TD: 7330 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 5/19/2023 | | Wellbore Permit | DRIFTED | | Permit #: | | Expiration Date: | 2/17/2011 | | Proposed Depth/Form: | 7330 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | STATE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: W/2SW/4 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: W2 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: W/2 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 544 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 410, Top: 0 ft., Bottom: 544 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7306 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 220, Top: , Bottom: 7306 ft. |
| | |
| Wellbore Completed | | Completion Date: | 10/5/2005 | | Spud Date: | 8/9/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7330 ft. | Measured PB depth: | 7288 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DIL, GR, CALIPER, SP, MICRO LOG, COMP. DENSITY/NETRON, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 544 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 410, Top: 0 ft., Bottom: 544 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7306 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 220, Top: 5880 ft., Bottom: 7306 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4186 ft. | | N | N | | NIOBRARA | 6471 ft. | | N | N | | FORT HAYS | 6703 ft. | | N | N | | CODELL | 6728 ft. | | N | N | | J SAND | 7182 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 5/19/2023 Interval Top: 7183 ft. Interval Bottom: 7204 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | 0.250 in. | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/5/2005 | | Treatment Summary: | PERF'D J-SAND 7183'-7187' (16 HOLES), 7191'-7204' (44 HOLES) 9/1/05. FRAC'D J-SAND W/8,736 GALS LINEAR GEL, 128,142 GALS SILVERSTIM 24# GEL, 435,500# 20/40 SAND & 12,000# 16/30 SB EXCEL. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7173 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/19/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 78 | | BBLS_OIL | 1 | | CALC_BBLS_H2O | 78 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 460000 | | CALC_MCF_GAS | 460 | | CASING_PRESS | 680 | | MCF_GAS | 460 | | TUBING_PRESS | 440 |
| | Perforation Data: | | Interval Top: | 7183 ft. | # Of Holes: | 60 | | Interval Bottom: | 7204 ft. | Hole Size: | 0.34 in. |
|
Formation JNBCD Formation Classification: GW Status: CM - 5/19/2023 Interval Top: 6538 ft. Interval Bottom: 7204 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | 5/24/2010 | Choke Size: | | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 5/20/2010 | | Treatment Summary: | COMMINGLE CODELL,NIOBRARA, AND J-SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/4/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 18 | | BBLS_OIL | 62 | | BTU_GAS | 1114 | | CALC_BBLS_H2O | 18 | | CALC_BBLS_OIL | 62 | | CALC_GOR | 2887 | | CALC_MCF_GAS | 179 | | CASING_PRESS | 490 | | GRAVITY_OIL | 45 | | MCF_GAS | 179 |
| | Perforation Data: | | Interval Top: | 6538 ft. | # Of Holes: | 160 | | Interval Bottom: | 7204 ft. | Hole Size: | |
|
Formation NB-CD Formation Classification: GW Status: AB - 5/19/2023 Interval Top: 6538 ft. Interval Bottom: 6740 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 5/24/2010 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 5/20/2010 | | Treatment Summary: | FRAC'D NBBR W/ 173,775 GALS OF SLICK WATER AND SILVERSTIM WITH 250,000#'S OTTAWA SAND. NB PERFS 6538-6616, 52 HOLES SIZE 0.73M CD PERFS 6728-6740, 48 HOLES SIZE 0.41. FRAC'D CD W/ 132,676 GALS SW, SILVERSTIM & 15% HCL W/ 271,420#'S OTTAWA SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 6538 ft. | # Of Holes: | 100 | | Interval Bottom: | 6740 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 05/19/2023 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
