Wellbore #00 Wellbore Classification: OW Status: AB - 11/11/2019 Measured TD: 7610 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 11/11/2019 | | Wellbore Permit | DRIFTED | | Permit #: | 20040707 | Expiration Date: | 4/18/2005 | | Proposed Depth/Form: | 7700 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: W/2 |
| | |

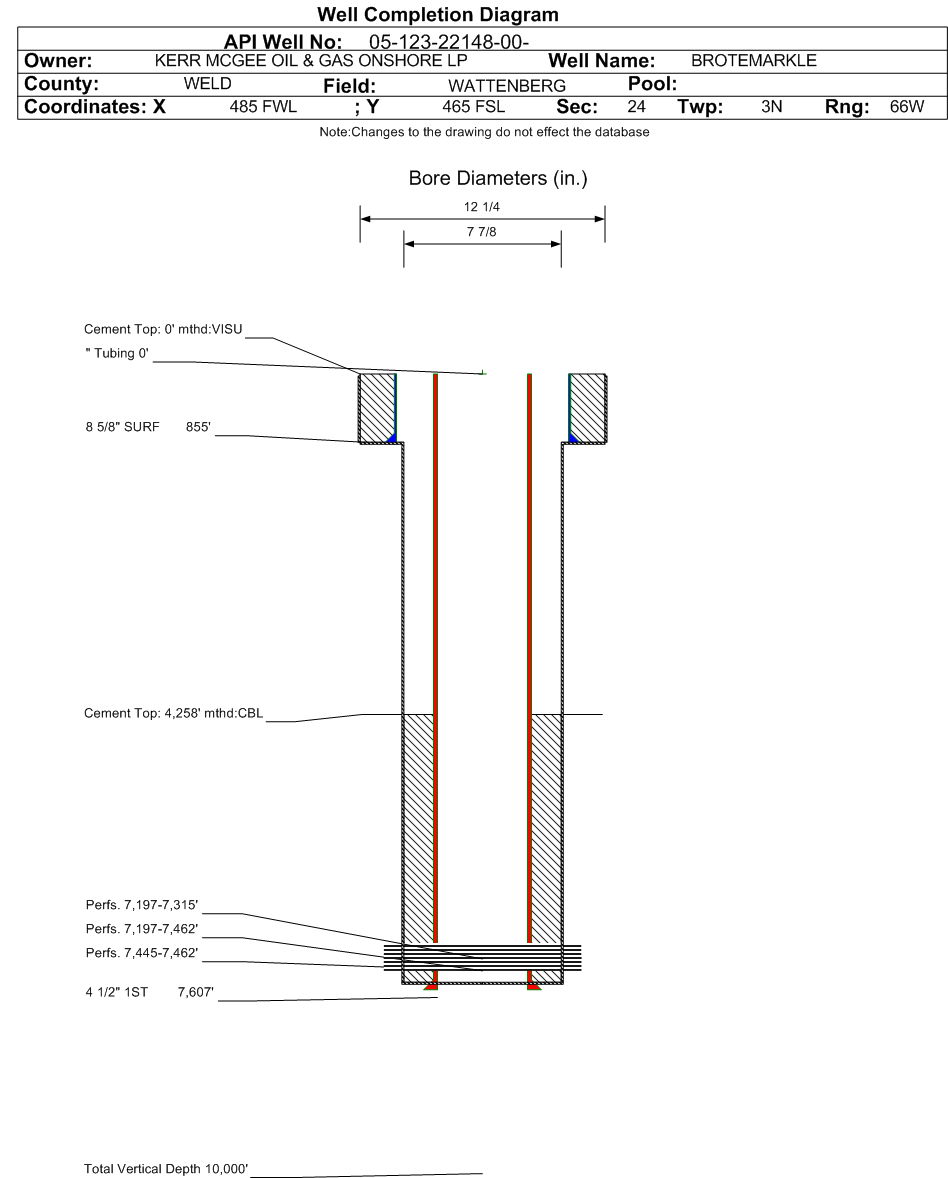

| Wellbore Completed | | Completion Date: | 5/5/2004 | | Spud Date: | 4/20/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 7610 ft. | Measured PB depth: | 7582 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | AIL, CNLD, GR, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 855 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 0 ft., Bottom: 855 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7607 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 365, Top: 4258 ft., Bottom: 7607 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4438 ft. | | N | N | | NIOBRARA | 7140 ft. | | N | N | | FORT HAYS | 7358 ft. | | N | N | | CODELL | 7380 ft. | | N | N |
Formation CODL Formation Classification: OW Status: CM - 11/11/2019 Interval Top: 7445 ft. Interval Bottom: 7462 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 5/12/2004 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/5/2004 | | Treatment Summary: | CIBP @ 7370'. TWO SACKS OF CEMENT PLACED ON CIBP FOR MECHANICAL INTEGRITY. OUR INTENT IS TO DRILL OUT CIBP AND COMMINGLE WITH NBRR WITHIN SIX MONTHS |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7445 ft. | # Of Holes: | 66 | | Interval Bottom: | 7462 ft. | Hole Size: | 0.42 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 7/25/2019 Interval Top: 7197 ft. Interval Bottom: 7462 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 5/12/2004 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/10/2011 | | Treatment Summary: | CDL REPERF (8/4/2011) 7446-7462 HOLES 32 SIZE .38
Re-Frac Codell down 4-1/2" Csg w/ 264,577 gal Slickwater w/ 208,760# 40/70, 4,000# SB Excel. | | Formation Treatment | | Treatment Date: | 5/5/2004 | | Treatment Summary: | FRACED W/146,139 GALLONS GELLED FLUID, 192800 LBS 30/50 ROCKY MOUNTAIN TRANSLOAD. PRODUCTION REFLECTS NIOBRARA-CODELL FORMATIONS. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 11 | | BTU_GAS | 1275 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 11 | | CALC_GOR | 6545 | | CALC_MCF_GAS | 72 | | CASING_PRESS | 1127 | | GRAVITY_OIL | 55 | | MCF_GAS | 72 | | TUBING_PRESS | 1002 |
| | Perforation Data: | | Interval Top: | 7197 ft. | # Of Holes: | 128 | | Interval Bottom: | 7462 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: GW Status: CM - 8/12/2008 Interval Top: 7197 ft. Interval Bottom: 7315 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 5/12/2004 | Choke Size: | 0.188 in. | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/24/2008 | | Treatment Summary: | NEW PERFS FROM 7200-7220 AND 7290-7315. 45 NEW PERFS. REFRAC NBRR WITH 156652 GAL VISTAR GEL, 257780# 30/50 SAND, AND 4000# 20/40 SB. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/12/2008 | Test Method: | FLOWING | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1276 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 26 | | CALC_GOR | 7692 | | CALC_MCF_GAS | 200 | | CASING_PRESS | 1100 | | GRAVITY_OIL | 54 |
| | Perforation Data: | | Interval Top: | 7197 ft. | # Of Holes: | 62 | | Interval Bottom: | 7315 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 11/11/2019 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
