COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-22112		Well Classification: OW Status: SI - 10/1/2020
Well Name/No:BROTEMARKLE #6-24
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date10/1/2020
FacilityID:271728LocationID:332302
County:WELD #123Location:SENW 24 3N66W 6
Field:WATTENBERG - #90750Elevation:5043 ft.
Planned Location:1850FNL  1795 FWLLat/Long: 40.212857 / -104.728519Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.213010 / -104.728300Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 6/10/2011
End Date: 6/10/2011
Reported: 8/22/2011
Prior to rule 205A.b.(2)(A)
Days to report: 73
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 10/1/2020             Measured TD: 7630 ft.    Vertical TD: 7630 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 10/1/2020
Wellbore Permit
Permit #:20040502 Expiration Date:3/28/2005
Proposed Depth/Form:7600 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E/2NW
Wellbore Completed
Completion Date:4/21/2004
Spud Date:4/8/2004Spud Date Is:ACTUAL
Measured TD:7630 ft.Measured PB depth:7404 ft.
True Vertical TD:7630 ft.True Vertical PB depth:7604 ft.
Log Types:CDCN, GR, DIL, CBL

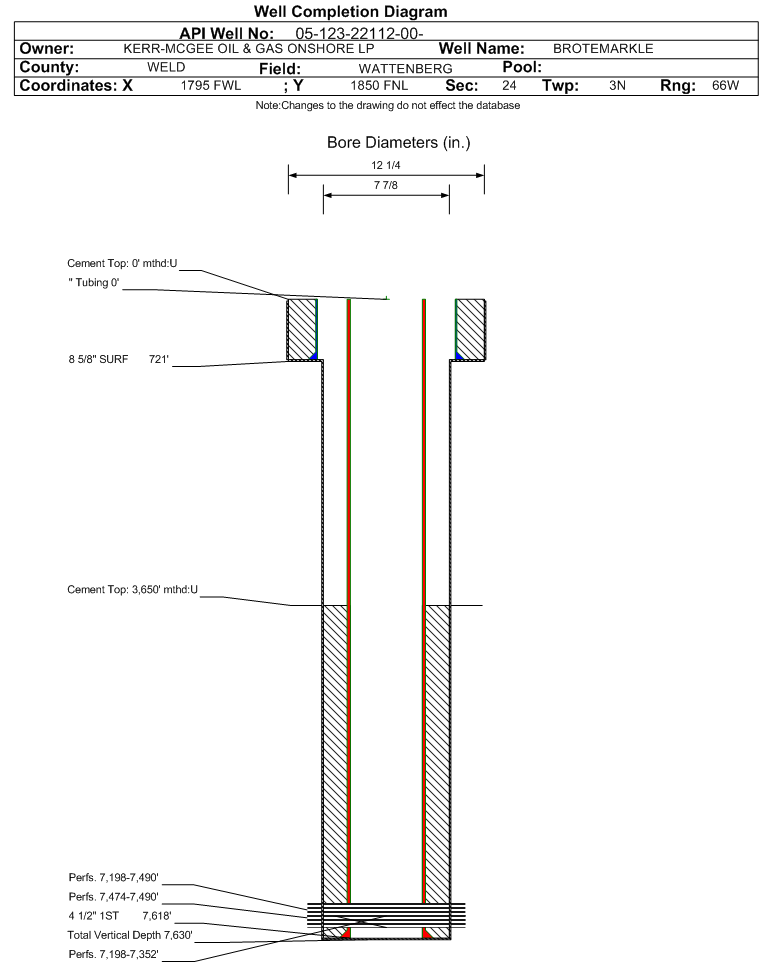

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 721 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 520, Top: 0 ft., Bottom: 721 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7618 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 410, Top: 3650 ft., Bottom: 7618 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4574 ft.NN
NIOBRARA7190 ft.NN
FORT HAYS7451 ft.NN
CODELL7472 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 7/1/2011                  Interval Top: 7474 ft.    Interval Bottom: 7490 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/21/2004
Treatment Summary:NO ADDITIONAL TREATMENT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7474 ft.# Of Holes:32
Interval Bottom:7490 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 10/1/2020                 Interval Top: 7198 ft.    Interval Bottom: 7490 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:6/27/2011Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/10/2011
Treatment Summary:CDL REPERF (5/25/2011) 7474-7490 HOLES 32. NO HOLE SIZE AVAILABLE Re-Frac Codell down 4-1/2" Csg w/ 261,408 gal Slickwater w/ 208,340# 40/70, 4,160# SB Excel.
Formation Treatment
Treatment Date:4/21/2004
Treatment Summary:PLUG DRILLED OUT AT 7450'. TUBING RAN & WELL COMMINGLED.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/30/2011Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 12
BTU_GAS 1260
CALC_BBLS_H2O 0
CALC_BBLS_OIL 12
CALC_GOR 19917
CALC_MCF_GAS 239
CASING_PRESS 1750
GRAVITY_OIL 57
MCF_GAS 239
TUBING_PRESS 230
Perforation Data:
Interval Top:7198 ft.# Of Holes:134
Interval Bottom:7490 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 7/1/2011                  Interval Top: 7198 ft.    Interval Bottom: 7352 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/12/2007
Treatment Summary:NO ADDITIONAL TREATMENT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:SHALE
Gas Disposal:
Test TypeMeasure
BTU_GAS 1261
CALC_BBLS_OIL 14
CALC_GOR 9643
CALC_MCF_GAS 135
CASING_PRESS 800
GRAVITY_OIL 54
TUBING_PRESS 600
Perforation Data:
Interval Top:7198 ft.# Of Holes:69
Interval Bottom:7352 ft.Hole Size:0.42 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
09/30/2020
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
