COGIS - WELL SCOUT CARD

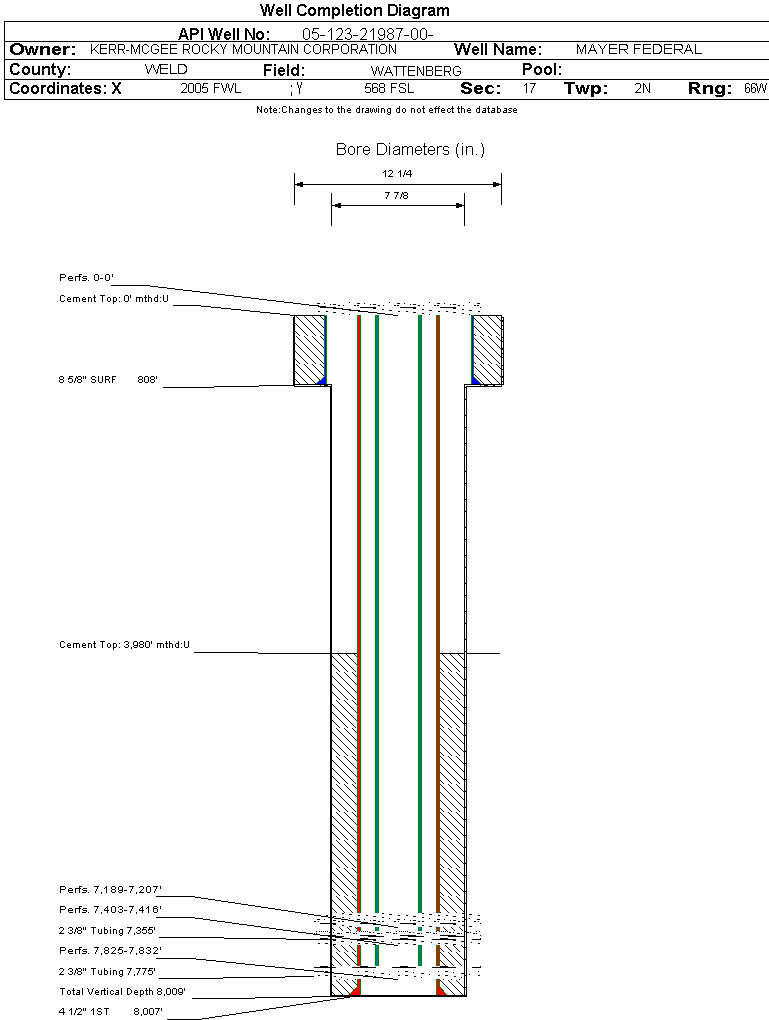

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21987		Well Classification: OW Status: PA - 10/23/2024
Well Name/No:MAYER FEDERAL #14-17
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:NRM 1846
Facility Status:PAStatus Date10/23/2024
FacilityID:271022LocationID:336275
County:WELD #123Location:SESW 17 2N66W 6
Field:WATTENBERG - #90750Elevation:4870 ft.
Basin:DENVER (DJ) BASIN
Planned Location:568FSL  2005 FWLLat/Long: 40.132247 / -104.803570Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.132412 / -104.803396Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 10/23/2024             Measured TD: 8009 ft.    Vertical TD: 8009 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 10/23/2024
Wellbore Permit
Permit #:20040050 Expiration Date:1/28/2005
Proposed Depth/Form:8025 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: S/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S/2SW
Wellbore Completed
Completion Date:3/3/2004
Spud Date:2/17/2004Spud Date Is:ACTUAL
Measured TD:8009 ft.Measured PB depth:7991 ft.
True Vertical TD:8009 ft.True Vertical PB depth:7991 ft.
Log Types:CDCNL, DIL, GR, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 808 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 585, Top: 0 ft., Bottom: 808 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8007 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 585, Top: 3980 ft., Bottom: 8007 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4373 ft.NN
NIOBRARA7179 ft.NN
FORT HAYS7381 ft.NN
CODELL7402 ft.NN
J SAND7816 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  AB - 10/23/2024                Interval Top: 7825 ft.    Interval Bottom: 7832 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/3/2004
Treatment Summary:J SAND 160715 GAL FLUID FRAC INFO REPRESENTS; JSND 400 LBS 12/20 SAND 115310 LBS 30/50 SAND
Tubing Size:2.375 in.Tubing Setting Depth:7775 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/24/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 6
CALC_BBLS_OIL 6
CALC_GOR 62500
CALC_MCF_GAS 375
CASING_PRESS 329
GRAVITY_OIL 48
MCF_GAS 375
TUBING_PRESS 258
Perforation Data:
Interval Top:7825 ft.# Of Holes:74
Interval Bottom:7832 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 4/20/2004                 Interval Top: 7403 ft.    Interval Bottom: 7416 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:PLUNGER
Open Hole Completion:No
Formation Treatment
Treatment Date:3/3/2004
Treatment Summary:500 GAL FLUID; 150048 GAL FLUID; 116660# 30/50 SAND
Tubing Size:2.375 in.Tubing Setting Depth:7355 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/20/2004Test Method:PLUNGER
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 16
CALC_BBLS_H2O 0
CALC_BBLS_OIL 16
CALC_GOR 6063
CALC_MCF_GAS 97
CASING_PRESS 330
GRAVITY_OIL 48
MCF_GAS 97
TUBING_PRESS 247
Perforation Data:
Interval Top:7403 ft.# Of Holes:26
Interval Bottom:7416 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 4/20/2004                 Interval Top: 7189 ft.    Interval Bottom: 7207 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:PLUNGER
Open Hole Completion:No
Formation Treatment
Treatment Date:3/3/2004
Treatment Summary:500 GAL FLUID; 150048 GAL FLUID; 116660# 30/50 SAND
Tubing Size:2.375 in.Tubing Setting Depth:7355 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/20/2004Test Method:PLUNGER
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 16
CALC_BBLS_H2O 0
CALC_BBLS_OIL 16
CALC_GOR 6063
CALC_MCF_GAS 97
CASING_PRESS 330
GRAVITY_OIL 48
MCF_GAS 97
TUBING_PRESS 247
Perforation Data:
Interval Top:7189 ft.# Of Holes:10
Interval Bottom:7207 ft.Hole Size:0.42 in.

Formation JNBCD                   Formation Classification:  OW                   Status:  CM - 11/24/2004

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/3/2004
Treatment Summary:FRAC INFO REPRESENTS;
Tubing Size:2.375 in.Tubing Setting Depth:7775 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/24/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 6
CALC_GOR 62500
CALC_MCF_GAS 375
CASING_PRESS 329
GRAVITY_OIL 48
MCF_GAS 375
TUBING_PRESS 258
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 10/23/2024

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/23/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
04/30/2028
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
