COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21936		Well Classification: GW Status: PA - 11/17/2022
Well Name/No:SULLIVAN #33-26
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/17/2022
FacilityID:271169LocationID:332899
Municipality/County:FREDERICK / WELD #123Location:NWSE 26 2N68W 6
Field:WATTENBERG - #90750Elevation:4939 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1970FSL  2179 FELLat/Long: 40.107690 / -104.968720Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.107687 / -104.968715Lat/Long Source: Field Measured

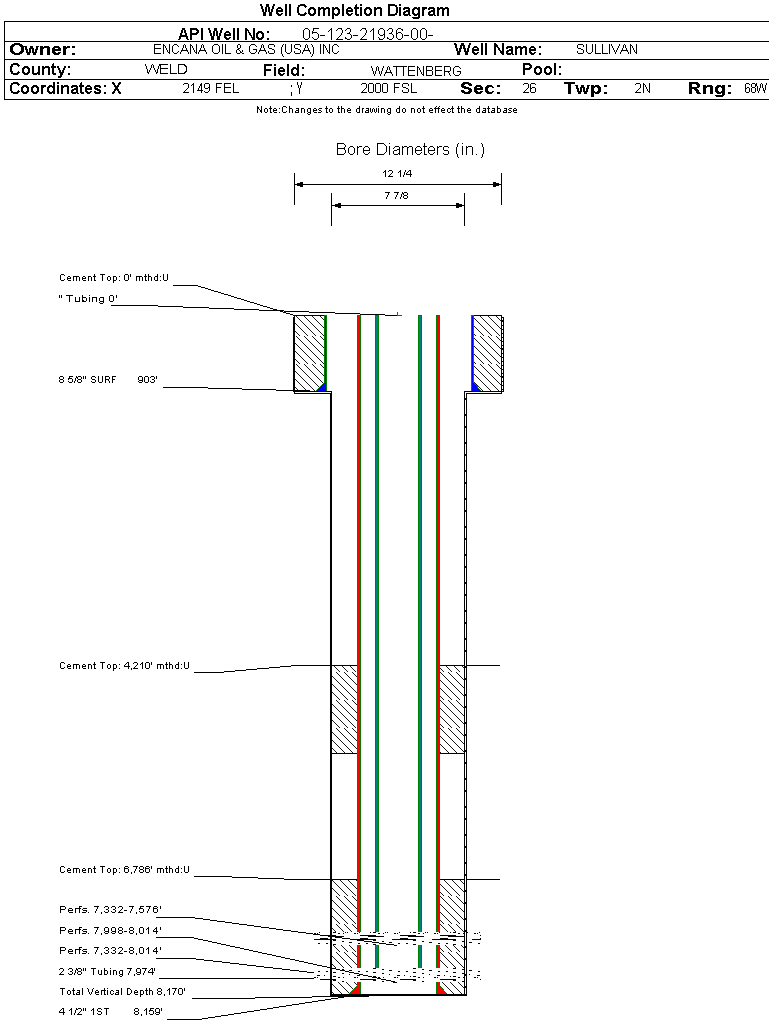

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/17/2022             Measured TD: 8170 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/17/2022
Wellbore Permit
Permit #:20065184 Expiration Date:11/20/2007
Proposed Depth/Form:8200 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 160, Drill Unit: SE4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407;407-66, Unit Acreage: 80, Drill Unit: W2SE/4
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5200 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 250, Top: 4100 ft., Bottom: 5200 ft.
Wellbore Completed
Completion Date:7/5/2007
Spud Date:6/30/2007Spud Date Is:ACTUAL
Measured TD:8170 ft.Measured PB depth:8125 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL, DUAL IND/COMPENSATED DENSITY/COMPENSATED NEUTRON
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 903 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 440, Top: 0 ft., Bottom: 903 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8159 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 6786 ft., Bottom: 8159 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5256 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 310, Top: 4210 ft., Bottom: 5256 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4494 ft.NN
SHANNON4940 ft.NN
NIOBRARA7264 ft.NN
CODELL7556 ft.NN
J SAND7986 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 11/17/2022                Interval Top: 7998 ft.    Interval Bottom: 8014 ft.

 Completed Information for Formation J SAND
1st Production Date:7/19/2007Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/17/2007
Treatment Summary:JSND COMPLETION. FRAC''D THE JSND WITH 171,108 GAL FRAC FLUID AND 250,620# SAND. 07/17/2007.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7998 ft.# Of Holes:32
Interval Bottom:8014 ft.Hole Size:0.42 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 4/28/2022                 Interval Top: 7556 ft.    Interval Bottom: 7576 ft.

 Completed Information for Formation CODELL
1st Production Date:7/19/2007Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7556 ft.# Of Holes:80
Interval Bottom:7576 ft.Hole Size:0.42 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 8/28/2007                 Interval Top: 7332 ft.    Interval Bottom: 8014 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:8/26/2007Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/5/2007
Treatment Summary:JSND-NBRR-CDL COMMINGLE. DRILLED OUT CFP @ 7440'. 08/22/2007. DRILLED OUT CFP @ 7920' TO COMMINGLE THE JSND-NBRR-CDL. 08-23-07.
Tubing Size:2.375 in.Tubing Setting Depth:7974 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/28/2007Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 74
BBLS_OIL 50
BTU_GAS 1209
CALC_BBLS_H2O 74
CALC_BBLS_OIL 50
CALC_GOR 7000
CALC_MCF_GAS 350
CASING_PRESS 1168
GRAVITY_OIL 48
MCF_GAS 350
TUBING_PRESS 964
Perforation Data:
Interval Top:7332 ft.# Of Holes:152
Interval Bottom:8014 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/17/2022                Interval Top: 7332 ft.    Interval Bottom: 7576 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/19/2007Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/17/2007
Treatment Summary:NBRR-CDL RECOMPLETION. SET CFP @ 7920' 07/17/2007. FRAC'D THE CDL WITH 112,168 GEL FRAC FLUID AND 250,020# SAND 07/17/2007. SET CFP @7440' 07/17/2007. FRAC'D THE NBRR WITH 172,999 GAL FLUID AND 250,260# SAND. 07/17/2007.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 164
CALC_BBLS_H2O 10
CALC_BBLS_OIL 164
CALC_GOR 2896
CALC_MCF_GAS 475
CASING_PRESS 967
MCF_GAS 475
Perforation Data:
Interval Top:7332 ft.# Of Holes:160
Interval Bottom:7576 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 4/28/2022                 Interval Top: 7332 ft.    Interval Bottom: 7352 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/19/2007Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7332 ft.# Of Holes:80
Interval Bottom:7352 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/17/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
