COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21900		Well Classification: GW Status: PA - 2/13/2019
Well Name/No:BENSON #16-23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/13/2019
FacilityID:270558LocationID:332942
Municipality/County:MEAD / WELD #123Location:NESE 23 3N68W 6
Field:WATTENBERG - #90750Elevation:4980 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1427FSL  1273 FELLat/Long: 40.208276 / -104.965386Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.208280 / -104.965270Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 2/13/2019             Measured TD: 7610 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 2/13/2019
Wellbore PermitDIRECTIONAL
Permit #:20032393 Expiration Date:12/17/2004
Proposed Top PZ Location:Sec:23 Twp: 3N 68W Footage: 664 FSL  661 FEL
Bottom Hole Location:Sec:23 Twp: 3N 68W Footage: 664 FSL  661 FEL
Proposed Depth/Form:7500 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S/2
Wellbore Completed
Completion Date:1/27/2004
Spud Date:1/10/2004Spud Date Is:ACTUAL
Measured TD:7610 ft.Measured PB depth:7592 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec:23 Twp: 3N 68WFootage: 664 FSL  661 FEL
Bottom Hole Location:Sec:23 Twp: 3N 68WFootage: 664 FSL  661 FEL
Log Types:CNL/CDL, AIL, CBL

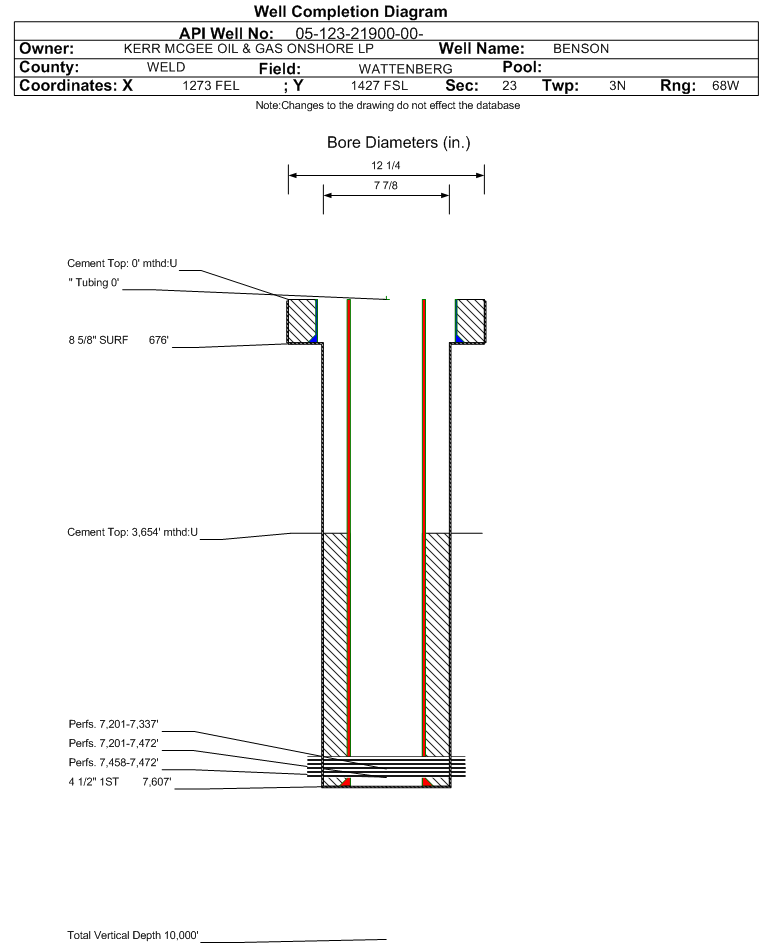

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 676 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 475, Top: 0 ft., Bottom: 676 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7607 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 495, Top: 3654 ft., Bottom: 7607 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4192 ft.NN
SHANNON4743 ft.NN
NIOBRARA7188 ft.NN
FORT HAYS7434 ft.NN
CODELL7456 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 12/25/2009                Interval Top: 7458 ft.    Interval Bottom: 7472 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/25/2009
Treatment Summary:156068 GAL SW W/ 115380# 40/70 & 4000# 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 67
CALC_BBLS_H2O 0
CALC_BBLS_OIL 67
CALC_GOR 2179
CALC_MCF_GAS 146
CASING_PRESS 950
GRAVITY_OIL 46
MCF_GAS 146
TUBING_PRESS 694
Perforation Data:
Interval Top:7458 ft.# Of Holes:70
Interval Bottom:7472 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 2/13/2019                 Interval Top: 7201 ft.    Interval Bottom: 7472 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/1/2009Choke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/27/2004
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/25/2009Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1259
CALC_BBLS_OIL 2
CALC_GOR 14000
CALC_MCF_GAS 28
CASING_PRESS 300
GRAVITY_OIL 48
TUBING_PRESS 14
Perforation Data:
Interval Top:7201 ft.# Of Holes:150
Interval Bottom:7472 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 12/25/2009                Interval Top: 7201 ft.    Interval Bottom: 7337 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/25/2009
Treatment Summary:500 GAL 15% HCI & 237614 GAL SW W/ 200250# 40/70 & 4000# 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:SHALE
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 67
CALC_BBLS_H2O 0
CALC_BBLS_OIL 67
CALC_GOR 2179
CALC_MCF_GAS 146
CASING_PRESS 950
GRAVITY_OIL 46
MCF_GAS 146
TUBING_PRESS 694
Perforation Data:
Interval Top:7201 ft.# Of Holes:80
Interval Bottom:7337 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/13/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
