COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21826		Well Classification: GW Status: PA - 4/17/2018
Well Name/No:RADEMACHER #11-25
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/17/2018
FacilityID:270088LocationID:332092
Municipality/County:FIRESTONE / WELD #123Location:NESW 25 3N68W 6
Field:WATTENBERG - #90750Elevation:4890 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2100FSL  2160 FWLLat/Long: 40.195626 / -104.953046Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.195620 / -104.952910Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

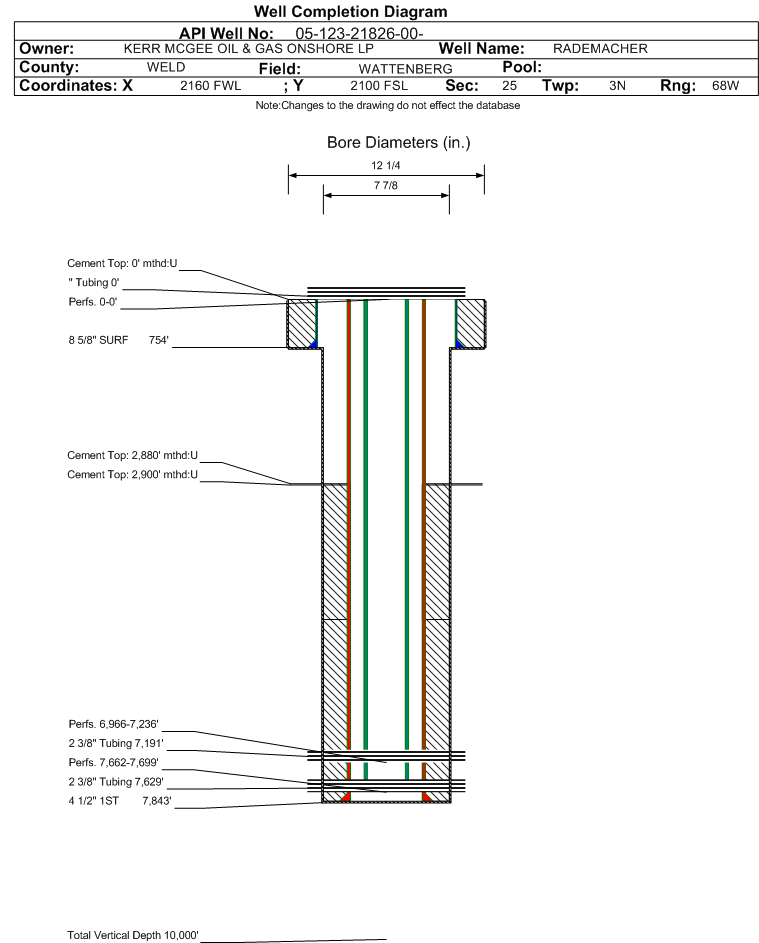

Wellbore #00             Wellbore Classification: GW             Status: PA - 4/17/2018             Measured TD: 7852 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 4/17/2018
Wellbore PermitDRIFTED
Permit #:20032089 Expiration Date:11/16/2004
Proposed Depth/Form:7370 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: S/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: N/2
Wellbore Completed
Completion Date:12/17/2003
Spud Date:11/29/2003Spud Date Is:ACTUAL
Measured TD:7852 ft.Measured PB depth:7843 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIGLGR, CDCNGR, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 754 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 282, Top: 0 ft., Bottom: 754 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7843 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 620, Top: 2880 ft., Bottom: 7843 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: 315, Top: 2900 ft., Bottom: 5000 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4114 ft.NN
SHANNON4630 ft.NN
NIOBRARA6942 ft.NN
FORT HAYS7199 ft.NN
CODELL7220 ft.NN
J SAND7653 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 4/17/2018                 Interval Top: 7662 ft.    Interval Bottom: 7699 ft.

 Completed Information for Formation J SAND
1st Production Date:12/15/2004Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/17/2003
Treatment Summary:162174 GAL FLUID; 4620 LBS 12/20 SAND;116580 LBS 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7662 ft.# Of Holes:74
Interval Bottom:7699 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 4/17/2018                 Interval Top: 6966 ft.    Interval Bottom: 7236 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.531 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/17/2003
Treatment Summary:FRAC NB-CD W/ 111260# 20/40 MESH; 110044 GAL SAND LADEN FLUID. NIOBRARA PERFS 696-7030'. CODL PERFS 7222-7236'
Tubing Size:2.375 in.Tubing Setting Depth:7191 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/1/2004Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 38
CALC_BBLS_H2O 0
CALC_BBLS_OIL 38
CALC_GOR 2368
CALC_MCF_GAS 90
CASING_PRESS 591
GRAVITY_OIL 60
MCF_GAS 90
TUBING_PRESS 486
Perforation Data:
Interval Top:6966 ft.# Of Holes:
Interval Bottom:7236 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 2/1/2011

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.281 in.
Formation Name:J-NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/17/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7629 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/15/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 12
CALC_BBLS_H2O 0
CALC_BBLS_OIL 12
CALC_GOR 7083
CALC_MCF_GAS 85
CASING_PRESS 744
GRAVITY_OIL 47
MCF_GAS 85
TUBING_PRESS 394
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/17/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
