COGIS - WELL SCOUT CARD

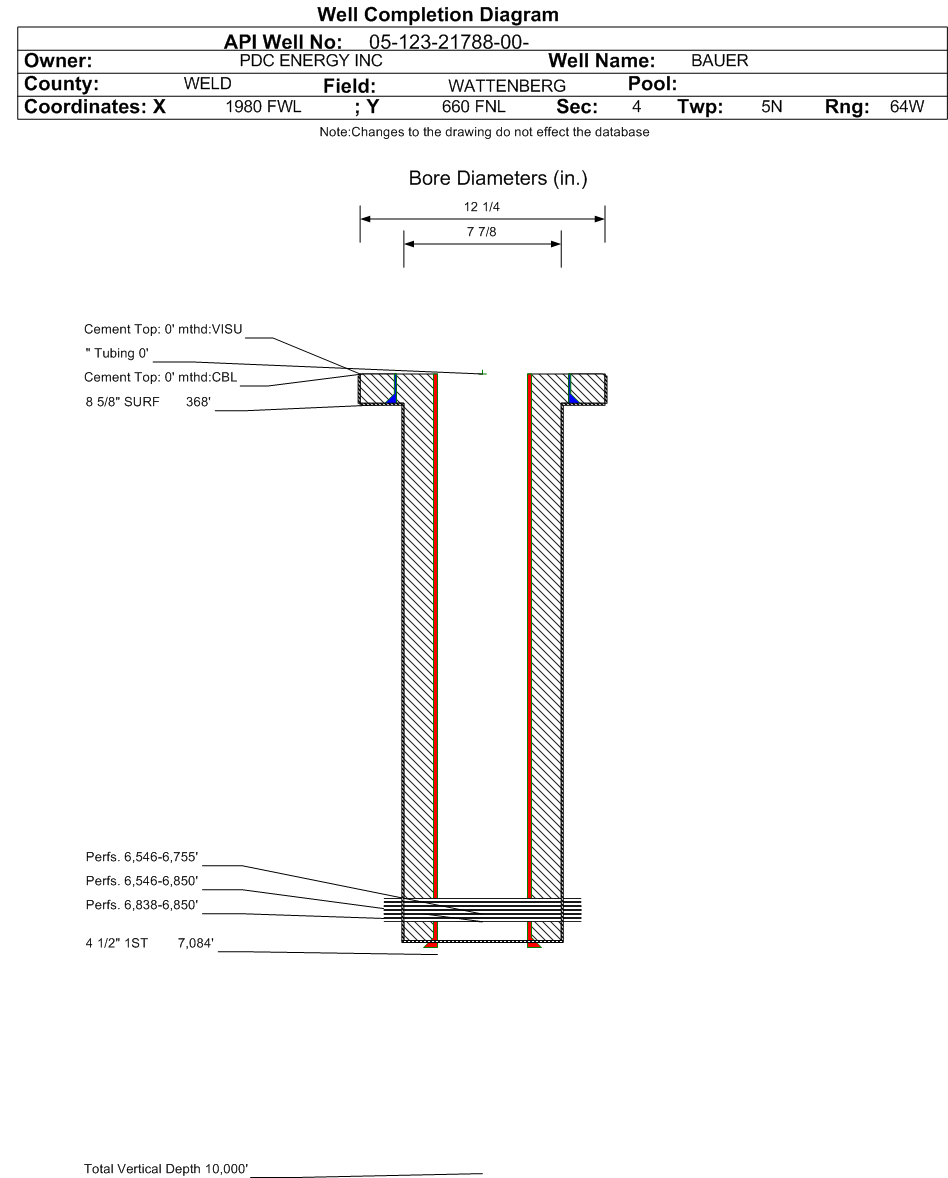

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21788		Well Classification: OW Status: PA - 4/7/2020
Well Name/No:BAUER #21-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/7/2020
FacilityID:269959LocationID:332068
County:WELD #123Location:NENW 4 5N64W 6
Field:WATTENBERG - #90750Elevation:4627 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  1980 FWLLat/Long: 40.433565 / -104.557665Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.433672 / -104.557648Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 4/7/2020             Measured TD: 7086 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 4/7/2020
Wellbore Permit
Permit #:20031947 Expiration Date:10/28/2004
Proposed Depth/Form:7050 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-6 , Unit Acreage: 80, Drill Unit: N2NW/4
Wellbore Completed
Completion Date:2/25/2004
Spud Date:2/13/2004Spud Date Is:ACTUAL
Measured TD:7086 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:COMPENSATED DENSITY/NEUTRON/GR;DUAL INDUCTION;CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 368 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 368 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7084 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 7084 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
CODELL6838 ft.6850 ft.NN

Formation CODL                     Formation Classification:  OG                     Status:  CM - 12/4/2017                 Interval Top: 6838 ft.    Interval Bottom: 6850 ft.

 Completed Information for Formation CODELL
1st Production Date:2/21/2004Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/25/2004
Treatment Summary:FRAC W/263,400 LBS 20/40 SAND, FRAC W/12,000 LBS 12/20 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 50
BTU_GAS 1300
CALC_BBLS_H2O 10
CALC_BBLS_OIL 50
CALC_GOR 6420
CALC_MCF_GAS 321
CASING_PRESS 400
GRAVITY_OIL 45
MCF_GAS 321
TUBING_PRESS 200
Perforation Data:
Interval Top:6838 ft.# Of Holes:48
Interval Bottom:6850 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  OG                   Status:  AB - 4/7/2020                  Interval Top: 6546 ft.    Interval Bottom: 6850 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/29/2004Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6546 ft.# Of Holes:212
Interval Bottom:6850 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OG                     Status:  CM - 12/4/2017                 Interval Top: 6546 ft.    Interval Bottom: 6755 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/29/2004Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/14/2004
Treatment Summary:The Niobrara formation was recompleted from 6744'-6755', 6656'-6676' and 6546'-6556, (4 spf, 60 degree phasing with 3 1/8" slick gun) in 2004 by Merit prior to PDC's aquisition of the well in 2012. Limited information on the job is available.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6546 ft.# Of Holes:164
Interval Bottom:6755 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/07/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
