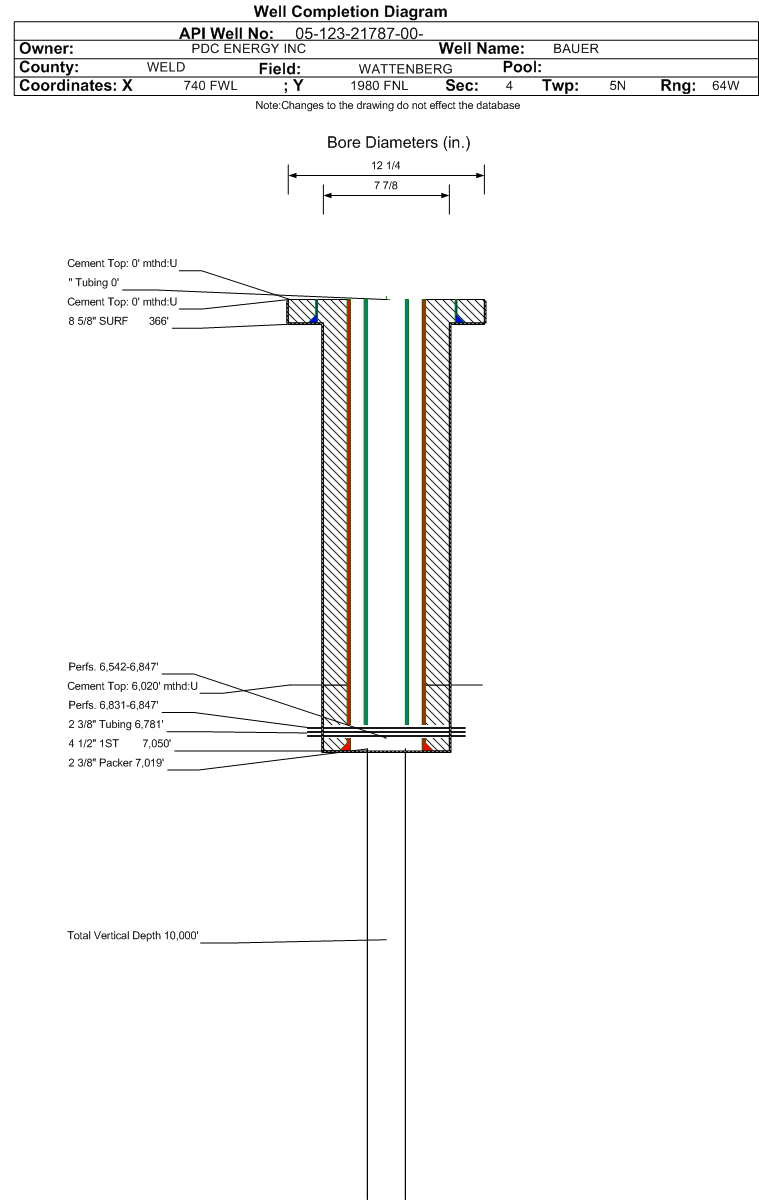

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21787		Well Classification: GW Status: PA - 3/24/2021
Well Name/No:BAUER #12-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/24/2021
FacilityID:269930LocationID:332067
County:WELD #123Location:SWNW 4 5N64W 6
Field:WATTENBERG - #90750Elevation:4627 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  740 FWLLat/Long: 40.429915 / -104.562095Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.429625 / -104.562114Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 3/24/2021             Measured TD: 7068 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 3/24/2021
Wellbore PermitDRIFTED
Permit #:20032012 Expiration Date:10/27/2004
Proposed Depth/Form:7050 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-6 , Unit Acreage: 80, Drill Unit: S2NWN/
Wellbore Completed
Completion Date:3/16/2004
Spud Date:3/1/2004Spud Date Is:ACTUAL
Measured TD:7068 ft.Measured PB depth:7021 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBGR COLLAR CORRELATION LOG (WELLBORE CONDITIONS PREVENTED OPENHOLE LOGS)
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 366 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 306, Top: 0 ft., Bottom: 366 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7050 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 160, Top: 6020 ft., Bottom: 7050 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7050 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 430, Top: 0 ft., Bottom: 6020 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6542 ft.6750 ft.NN
CODELL6831 ft.6847 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 2/29/2004                 Interval Top: 6831 ft.    Interval Bottom: 6847 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/16/2004
Treatment Summary:HALLIBURTON FRAC WELL W/263,600# 20/.40 WHITE SAND (OTTOWA), 12,000# ACFRAC-BLACK, 20,000 GAL FR PAD, 5000 GAL SILVERSTIM PAD. TOTAL LOAD 2632 BBLS. WELL SCREENED OUT ON FLUSH. LEFT 7270# ACFRAC SAND IN WELLBORE. CIRCULATE SAND OUT OF ANNULUS
Tubing Size:2.375 in.Tubing Setting Depth:6781 ft.
Tubing Packer Depth:7039 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/29/2004Test Method:FLOWING
Hours Tested:12Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 41
BTU_GAS 1290
CALC_BBLS_H2O 30
CALC_BBLS_OIL 82
CALC_GOR 4
CALC_MCF_GAS 350
CASING_PRESS 900
GRAVITY_OIL 53
MCF_GAS 175
TUBING_PRESS 550
Perforation Data:
Interval Top:6831 ft.# Of Holes:42
Interval Bottom:6847 ft.Hole Size:3.125 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 3/24/2021                 Interval Top: 6542 ft.    Interval Bottom: 6847 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/22/2004Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:3/16/2004
Treatment Summary:FRAC NB (6542-6750') W/181,528 GALS FRAC FLUID + 238,000# 20/40 SAND & 12,000# 12/20 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 34
CASING_PRESS 950
MCF_GAS 158
TUBING_PRESS 300
Perforation Data:
Interval Top:6542 ft.# Of Holes:224
Interval Bottom:6847 ft.Hole Size:

Formation NBRR                     Formation Classification:                       Status:  CM - 7/1/2019                  Interval Top: 6542 ft.    Interval Bottom: 6750 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6542 ft.# Of Holes:182
Interval Bottom:6750 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/24/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
