COGIS - WELL SCOUT CARD

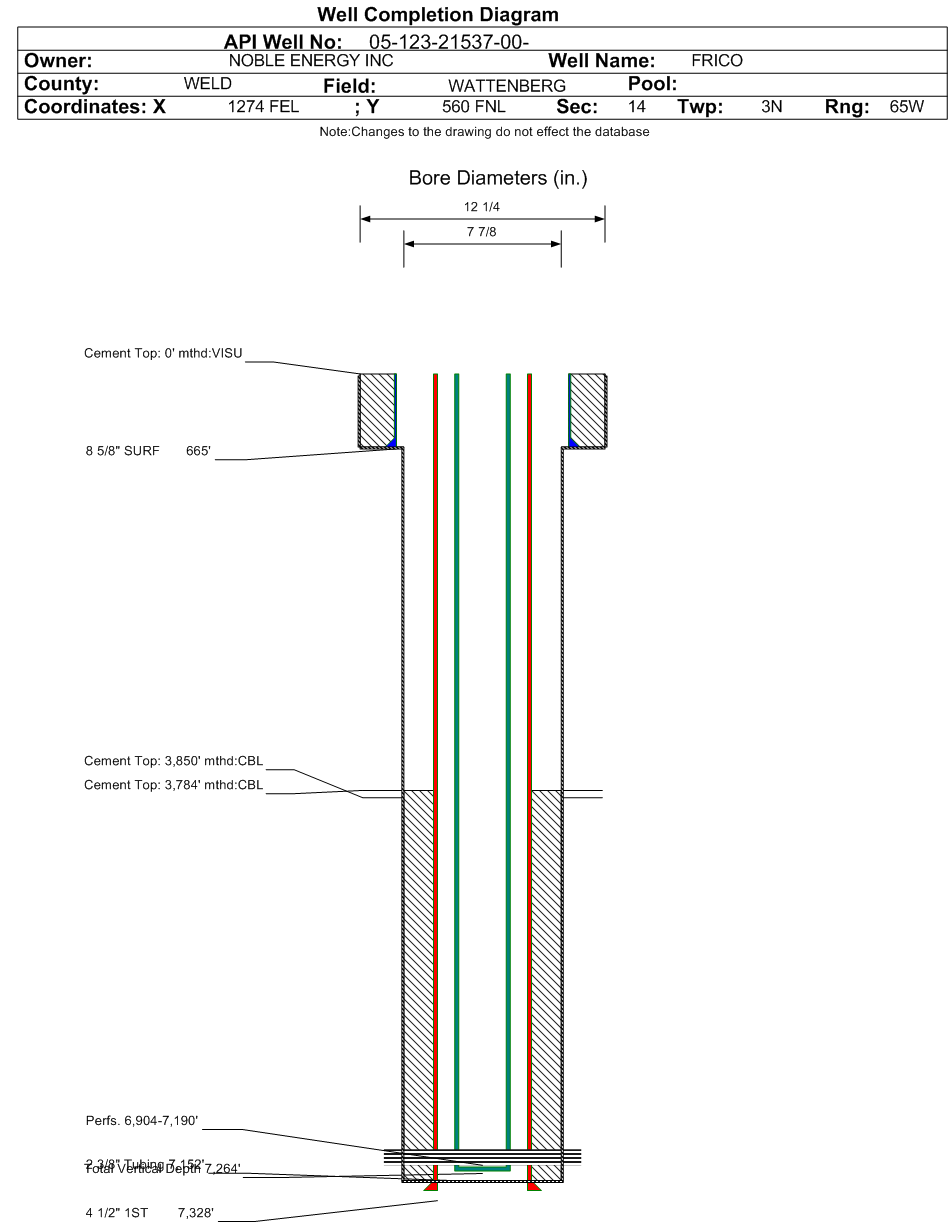

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21537		Well Classification: GW Status: PA - 12/9/2019
Well Name/No:FRICO #2-14
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/9/2019
FacilityID:268229LocationID:332550
County:WELD #123Location:NENE 14 3N65W 6
Field:WATTENBERG - #90750Elevation:4813 ft.
Basin:DENVER (DJ) BASIN
Planned Location:560FNL  1274 FELLat/Long: 40.231037 / -104.625396Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.231230 / -104.625460Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/9/2019             Measured TD: 7333 ft.    Vertical TD: 7264 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/9/2019
Wellbore PermitDIRECTIONAL
Permit #:20030940 Expiration Date:6/5/2004
Proposed Top PZ Location:Sec: Twp: Footage: 800 FNL  1880 FEL
Bottom Hole Location:Sec: Twp: Footage: 800 FNL  1880 FEL
Proposed Depth/Form:7260 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: W/2NE
Wellbore Completed
Completion Date:9/8/2003
Spud Date:8/21/2003Spud Date Is:ACTUAL
Measured TD:7333 ft.Measured PB depth:7311 ft.
True Vertical TD:7264 ft.True Vertical PB depth:7242 ft.
Top PZ Location:Sec: Twp: Footage: 800 FNL  1880 FEL
Bottom Hole Location:Sec: Twp: Footage: 800 FNL  1880 FEL
Log Types:PEAICL, PECNLD, PEMLGR, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 665 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 465, Top: 0 ft., Bottom: 665 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7328 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 440, Top: 3784 ft., Bottom: 7328 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7328 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 3850 ft., Bottom: 5200 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4355 ft.NN
NIOBRARA6998 ft.NN
CODELL7174 ft.NN

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/9/2019                 Interval Top: 6904 ft.    Interval Bottom: 7190 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/18/2006Choke Size:0.281 in.
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/7/2006
Treatment Summary:164,308 GALS FLUID & 116,760 LBS 30/50 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:7152 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/1/2006Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 7
CALC_BBLS_H2O 0
CALC_BBLS_OIL 7
CALC_GOR 12285
CALC_MCF_GAS 86
CASING_PRESS 850
GRAVITY_OIL 51
MCF_GAS 86
TUBING_PRESS 691
Perforation Data:
Interval Top:6904 ft.# Of Holes:28
Interval Bottom:7190 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/09/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
