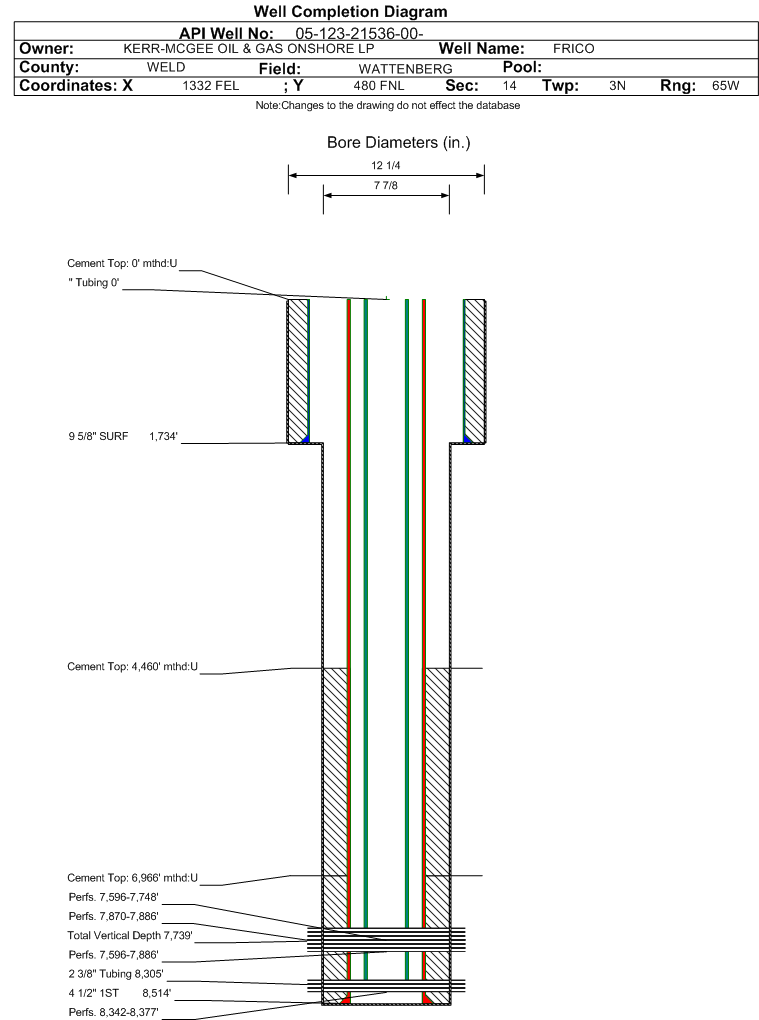

Wellbore #00 Wellbore Classification: GW Status: AB - 1/18/2024 Measured TD: 8515 ft. Vertical TD: 7739 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 1/18/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20063865 | Expiration Date: | 9/11/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 677 FNL 667 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 660 FNL 660 FWL | | Proposed Depth/Form: | 8515 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: N/2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: W2NW4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1734 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 1130, Top: 0 ft., Bottom: 1734 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8514 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 780, Top: 4460 ft., Bottom: 8514 ft. |
| | |
| Wellbore Completed | | Completion Date: | 9/4/2003 | | Spud Date: | 7/14/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 8515 ft. | Measured PB depth: | 8483 ft. | | True Vertical TD: | 7739 ft. | True Vertical PB depth: | 7707 ft. | | Top PZ Location: | Sec: Twp: | Footage: 677 FNL 667 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 660 FNL 660 FWL | | Log Types: | PEAILC, PECNLD, PEML, CBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1734 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1130, Top: 0 ft., Bottom: 1734 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8514 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 410, Top: 3964 ft., Bottom: 8514 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 8514 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 410, Top: 4460 ft., Bottom: 6966 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4785 ft. | 4868 ft. | N | N | | NIOBRARA | 7585 ft. | | N | N | | FORT HAYS | 7836 ft. | | N | N | | CODELL | 7867 ft. | | N | N | | J SAND | 8342 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 1/18/2024 Interval Top: 8342 ft. Interval Bottom: 8377 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 9/21/2003 | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/15/2010 | | Treatment Summary: | DRILL OUT SAND PLUG SET @ 8003' TO COMMINGLE JSN W/NB-CD. | | Formation Treatment | | Treatment Date: | 9/4/2003 | | Treatment Summary: | JSND PERFS 9/2003 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 4 | | BTU_GAS | 1278 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 7 | | CALC_GOR | 16429 | | CALC_MCF_GAS | 115 | | CASING_PRESS | 988 | | GRAVITY_OIL | 53 | | MCF_GAS | 276 | | TUBING_PRESS | 848 |
| | Perforation Data: | | Interval Top: | 8342 ft. | # Of Holes: | 72 | | Interval Bottom: | 8377 ft. | Hole Size: | 0.38 in. |
|
Formation CODL Formation Classification: GW Status: CM - 8/26/2022 Interval Top: 7870 ft. Interval Bottom: 7886 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 12/18/2006 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/16/2006 | | Treatment Summary: | PERF & FRAC CODL W/ 164,658 GALS FLUID & 115,540# 30/50 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7870 ft. | # Of Holes: | 64 | | Interval Bottom: | 7886 ft. | Hole Size: | 0.38 in. |
|
Formation NB-CD Formation Classification: GW Status: AB - 1/18/2024 Interval Top: 7596 ft. Interval Bottom: 7886 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 12/18/2006 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/30/2010 | | Treatment Summary: | NBRR PERF 7596-7748 HOLES 84 SIZE 0.42 CODL PERF 7870-7886 HOLES 64 SIZE 0.38 NO ADDITIONAL TREATMENT. | | Formation Treatment | | Treatment Date: | 9/4/2003 | | Treatment Summary: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BTU_GAS | 1278 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 5 | | CALC_GOR | 19000 | | CALC_MCF_GAS | 95 | | CASING_PRESS | 988 | | GRAVITY_OIL | 5302 | | TUBING_PRESS | 848 |
| | Perforation Data: | | Interval Top: | 7596 ft. | # Of Holes: | 148 | | Interval Bottom: | 7886 ft. | Hole Size: | 0.38 in. |
|
Formation NBRR Formation Classification: GW Status: CM - 8/26/2022 Interval Top: 7596 ft. Interval Bottom: 7748 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/18/2006 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/16/2006 | | Treatment Summary: | PERF & FRAC NBRR W/ 170,845 GALS FLUID & 250,080# 30/50 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7596 ft. | # Of Holes: | 84 | | Interval Bottom: | 7748 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 01/18/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
