COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21410		Well Classification: GW Status: SI - 3/1/2023
Well Name/No:WEBSTER #41-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date3/1/2023
FacilityID:267069LocationID:331860
County:WELD #123Location:NENE 11 6N65W 6
Field:WATTENBERG - #90750Elevation:4790 ft.
Basin:DENVER (DJ) BASIN
Planned Location:850FNL  475 FELLat/Long: 40.505634 / -104.622658Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.505720 / -104.622440Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 3/1/2023             Measured TD: 7339 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 3/1/2023
Wellbore PermitDRIFTED
Permit #:20030448 Expiration Date:4/7/2004
Proposed Depth/Form:7600 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 320, Drill Unit: N/2NE4
Wellbore Completed
Completion Date:11/14/2003
Spud Date:10/31/2003Spud Date Is:ACTUAL
Measured TD:7339 ft.Measured PB depth:7265 ft.
True Vertical TD:True Vertical PB depth:
Log Types:GR, IND, DENSITY,NEUTRON, CBL

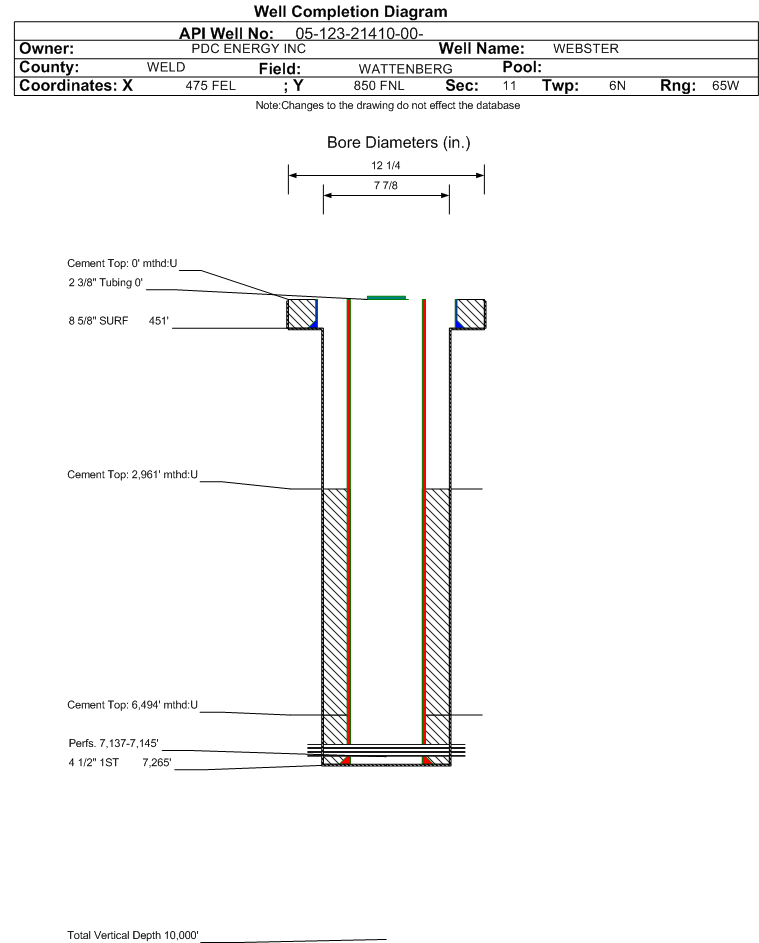

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 451 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 451 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7265 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 130, Top: 6494 ft., Bottom: 7265 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7265 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 2961 ft., Bottom: 6494 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2840 ft.NN
PARKMAN3660 ft.NN
SUSSEX4250 ft.NN
SHANNON4710 ft.NN
NIOBRARA6880 ft.NN
FORT HAYS7098 ft.NN
CODELL7135 ft.NN
CARLILE7160 ft.NN
GREENHORN7182 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  SI - 3/1/2023                  Interval Top: 7137 ft.    Interval Bottom: 7145 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:CODELLCommingled:No
Production Method:PRODUCING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/14/2003
Treatment Summary:11/14/03 BJ SERVICES FRACED W/2685 BBL OF 20 # VISTAR FLUID SYSTEM, 217,800# OF 20/40 MESH SAND AND 8,000# OF 20/40 MESH SUPER LC RESIN SAND.
Tubing Size:2.375 in.Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/18/2003Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 25
BBLS_OIL 107
BTU_GAS 1413
CALC_GOR 2046
CASING_PRESS 900
GRAVITY_OIL 49
MCF_GAS 219
Perforation Data:
Interval Top:7137 ft.# Of Holes:24
Interval Bottom:7145 ft.Hole Size:
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2029
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
02/28/2023
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
