Wellbore #00 Wellbore Classification: OW Status: SI - 3/1/2023 Measured TD: 7339 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 3/1/2023 | | Wellbore Permit | DRIFTED | | Permit #: | 20030447 | Expiration Date: | 3/24/2004 | | Proposed Depth/Form: | 7510 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318 , Unit Acreage: 80, Drill Unit: S/2NE |
| | |

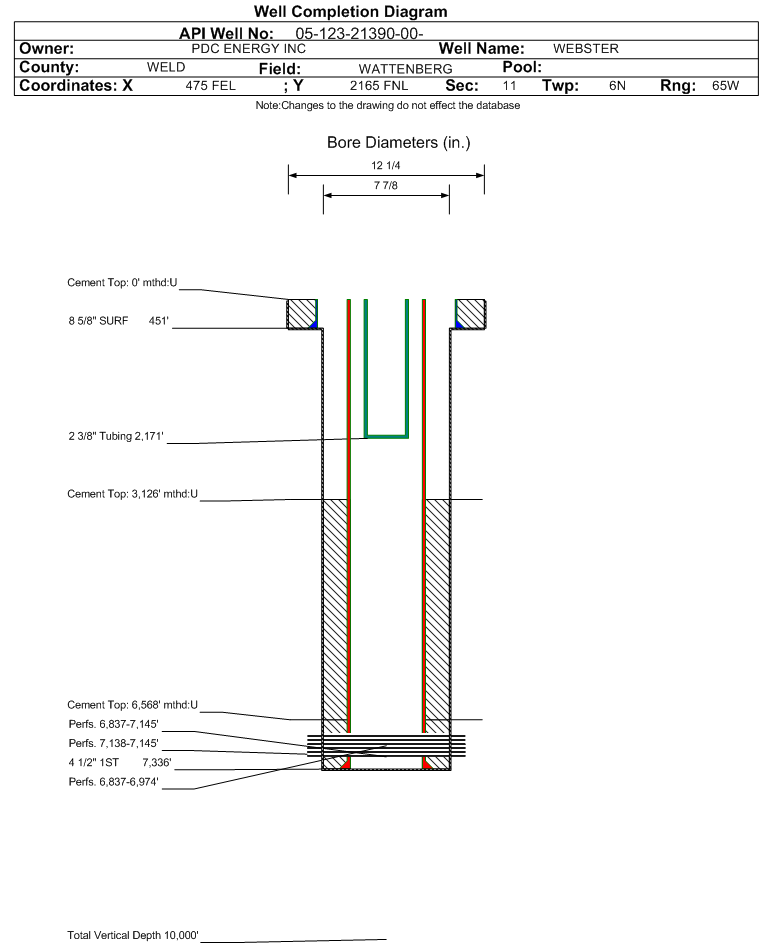

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 10/25/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 7339 ft. | Measured PB depth: | 7336 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | GR, IND, DENSITY, NEUTRON, CBL | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 451 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 451 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7336 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 140, Top: 6568 ft., Bottom: 7336 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7336 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 465, Top: 128 ft., Bottom: 6568 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2836 ft. | | N | N | | PARKMAN | 3690 ft. | | N | N | | SUSSEX | 4215 ft. | | N | N | | SHANNON | 4720 ft. | | N | N | | NIOBRARA | 6810 ft. | | N | N | | CODELL | 7137 ft. | | N | N | | CARLILE | 7161 ft. | | N | N | | GREENHORN | 7188 ft. | | N | N |
Formation CODL Formation Classification: OW Status: CM - 8/29/2012 Interval Top: 7138 ft. Interval Bottom: 7145 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 6/23/2012 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/5/2012 | Treatment End Date: | 6/5/2012 | | Treatment Summary: | (219,000 lbs Ottawa) (8,000 lbs SBXL 20/40. MTP = 4313 psi, ATP = 3973 psi, AIR = 21.4 bpm. Pressure response was slightly positive for entire treatment.
| | Total fluid used in treatment (bbls): | 2668 | Max pressure during treatment (psi): | 4313 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 26.00 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 119 | Min frac gradient (psi/ft): | 1.00 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 2549 | Disposition method For flowback: | | | Total proppant used (lbs): | 227000 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 11/5/2003 | | Treatment Summary: | 11/5/03 BJ SERVICES FRACED W/2664 BBL OF 20# VISTAR FLUID SYSTEM, 218,080# OF 20/40 MESH SAND AND 8,000# OF 20/40 MESH SUPER LC RESIN SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 2171 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 32 | | BBLS_OIL | 74 | | BTU_GAS | 1413 | | CALC_GOR | 1189 | | CASING_PRESS | 1700 | | GRAVITY_OIL | 49 | | MCF_GAS | 88 |
| | Perforation Data: | | Interval Top: | 7138 ft. | # Of Holes: | 24 | | Interval Bottom: | 7145 ft. | Hole Size: | 0.40625 in. |
|
Formation NB-CD Formation Classification: OW Status: SI - 3/1/2023 Interval Top: 6837 ft. Interval Bottom: 7145 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 6/23/2012 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 2171 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/5/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BBLS_OIL | 26 | | BTU_GAS | 1255 | | CALC_BBLS_H2O | 1 | | CALC_BBLS_OIL | 26 | | CALC_GOR | 4269 | | CALC_MCF_GAS | 111 | | CASING_PRESS | 841 | | GRAVITY_OIL | 18 | | MCF_GAS | 111 | | TUBING_PRESS | 583 |
| | Perforation Data: | | Interval Top: | 6837 ft. | # Of Holes: | 52 | | Interval Bottom: | 7145 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: OW Status: CM - 11/6/2012 Interval Top: 6837 ft. Interval Bottom: 6974 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 5/31/2012 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/5/2012 | Treatment End Date: | 6/2/2012 | | Treatment Summary: | Niobrara "B" Bench @ 6966'-6974' (3 SPF) Niobrara "A" Bench @ 6837' - 6839' (2 SPF) (28 New holes) (237,040 lbs Ottawa 20/40) (12,000 20/40 SB Excel. MTP = 4961 psi, ATP = 4689 psi, AIR = 47.9 bpm. Pressure response was slightly negative for entire treatment.
| | Total fluid used in treatment (bbls): | 3910 | Max pressure during treatment (psi): | 4961 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 20.00 | | Type Of gas: | | Number Of staged intervals: | 0 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 1.00 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 3910 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 249040 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 2171 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6837 ft. | # Of Holes: | 28 | | Interval Bottom: | 6974 ft. | Hole Size: | 0.421875 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 04/02/2026 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI) | Y | Last Production
02/28/2023 |
| Low Producing | Y | Production Period
01/2025 - 12/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
