Wellbore #00 Wellbore Classification: GW Status: TA - 5/3/2021 Measured TD: 7432 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW TA - 5/3/2021 | | Wellbore Permit | | | Permit #: | 20030301 | Expiration Date: | 3/3/2004 | | Proposed Top PZ Location: | Sec:20 Twp: 6N 65W | Footage: 500 FSL 820 FWL | | Bottom Hole Location: | Sec:20 Twp: 6N 65W | Footage: 500 FSL 820 FWL | | Proposed Depth/Form: | 7500 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318 , Unit Acreage: 80, Drill Unit: W/2 |
| | |

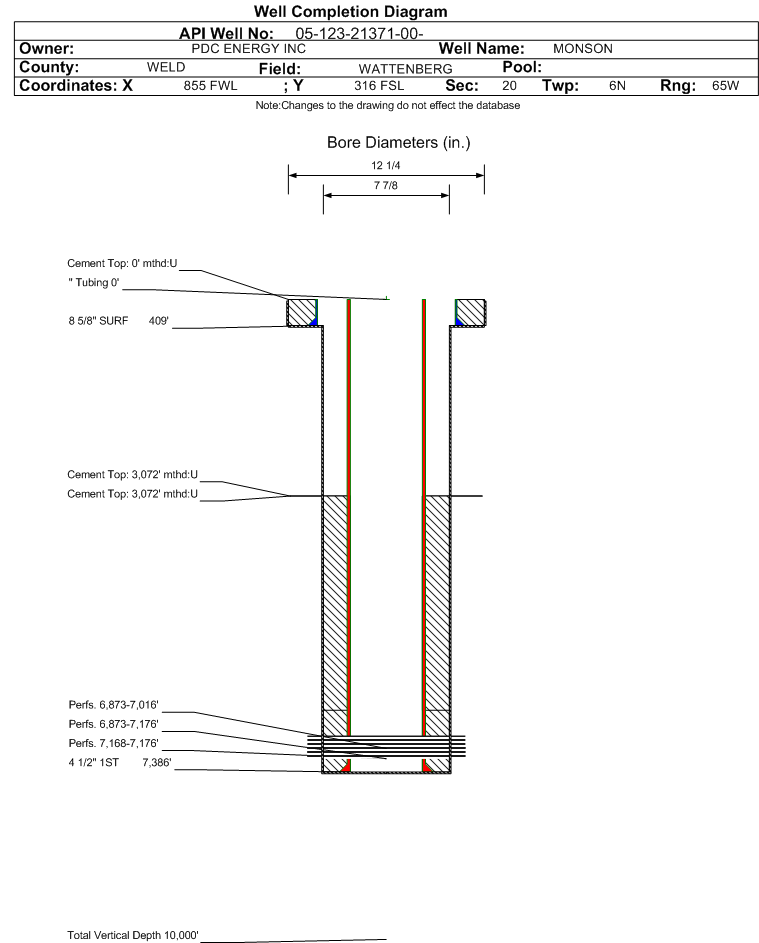

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 3/7/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 7432 ft. | Measured PB depth: | 7386 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Top PZ Location: | Sec:20 Twp: 6N 65W | Footage: 500 FSL 820 FWL | | Bottom Hole Location: | Sec:20 Twp: 6N 65W | Footage: 500 FSL 820 FWL | | Log Types: | GR, IND, DENSITY, NEUTRON, CBL | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 409 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 290, Top: 0 ft., Bottom: 409 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7386 ft., Weight: 10.5 , Citings Type: ACTUAL | | Cement: | Sacks: 360, Top: 3072 ft., Bottom: 7386 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 3072 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 210, Top: 0 ft., Bottom: 3072 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 0 ft., Depth: 3135 ft., Bottom: 3135 ft., Sacks: 500, Method: 1 INCH | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2155 ft. | | N | N | | PARKMAN | 3691 ft. | | N | N | | SUSSEX | 4118 ft. | | N | N | | SHANNON | 4412 ft. | | N | N | | NIOBRARA | 6857 ft. | | N | N | | FORT HAYS | 7115 ft. | | N | N | | CODELL | 7165 ft. | | N | N | | CARLILE | 7190 ft. | | N | N | | GREENHORN | 7218 ft. | | N | N |
Formation CODL Formation Classification: OG Status: CM - 3/12/2012 Interval Top: 7168 ft. Interval Bottom: 7176 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/24/2012 | | Treatment Summary: | Re-perf'd Codell, Re-Frac'd Codell w/ 119 bbl Active pad, 595 bbls of 24# pHaser pad, 1987 bbls of 24# pHaser, 218540 # 20/40 Preferd Rock , 8000# 20/40 SB Excel. | | Formation Treatment | | Treatment Date: | 4/2/2003 | | Treatment Summary: | 4/2/03 BJ SERVICES FRACED WITH 2698 BBL OF 20# VISTAR GEL, 217,420# OF 20/40 MESH SAND AND 8,000# OF 20/40 SUPER LC RESIN SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 30 | | CASING_PRESS | 2600 | | MCF_GAS | 100 |
| | Perforation Data: | | Interval Top: | 7168 ft. | # Of Holes: | 24 | | Interval Bottom: | 7176 ft. | Hole Size: | 0.40625 in. |
|
Formation NB-CD Formation Classification: GW Status: TA - 5/3/2021 Interval Top: 6873 ft. Interval Bottom: 7176 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 2/14/2012 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 8 | | BBLS_OIL | 46 | | BTU_GAS | 1313 | | CALC_BBLS_H2O | 8 | | CALC_BBLS_OIL | 46 | | CALC_GOR | 1870 | | CALC_MCF_GAS | 86 | | CASING_PRESS | 1202 | | GRAVITY_OIL | 55 | | MCF_GAS | 86 | | TUBING_PRESS | 655 |
| | Perforation Data: | | Interval Top: | 6873 ft. | # Of Holes: | 52 | | Interval Bottom: | 7176 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: OG Status: CM - 6/5/2012 Interval Top: 6873 ft. Interval Bottom: 7016 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/24/2012 | | Treatment Summary: | Perf'd Niobrara "A" 6873-6875' (4 holes), Niobrara "B" 7008-7016 (24 holes)
ReFrac'd Niobrara with 119 bbl FE-1A pad, 500 bbls of Slickwater pad, 900 bbls of pHaser 24# pad, 432 bbl 20/40 slurry w/ 24# pHaser, 2255 bbls of pHaser 26# fluid system and 239960# of 20/42 Preferred Rock, 12000 # 20/40 SB Excel. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6873 ft. | # Of Holes: | 28 | | Interval Bottom: | 7016 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
12/06/2022 |
| Defined Inactive (TA ) | Y | Defined Inactive
02/28/2017 |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
