COGIS - WELL SCOUT CARD

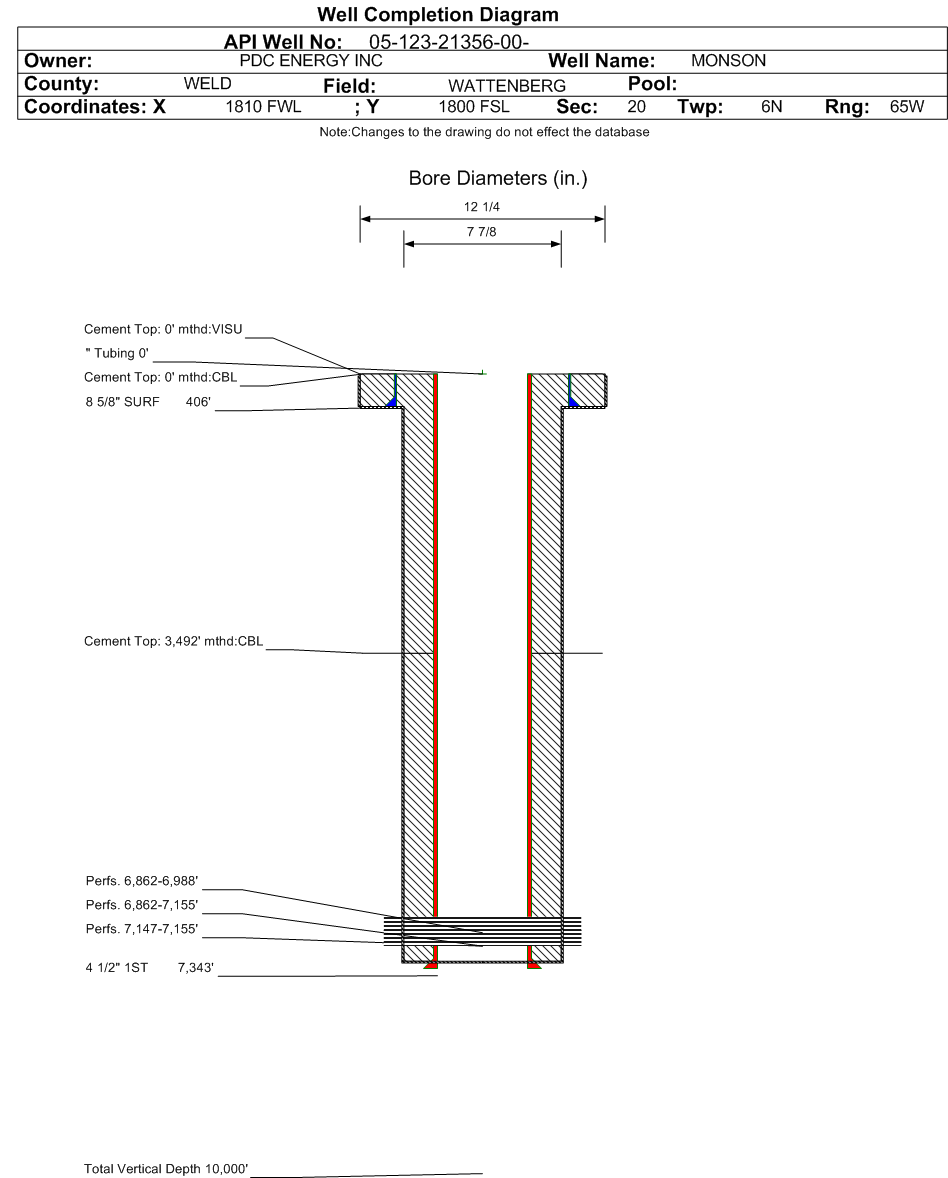

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21356		Well Classification: OW Status: PA - 11/30/2020
Well Name/No:MONSON #23-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/30/2020
FacilityID:266325LocationID:331825
County:WELD #123Location:NESW 20 6N65W 6
Field:WATTENBERG - #90750Elevation:4725 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1800FSL  1810 FWLLat/Long: 40.470964 / -104.690340Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.471000 / -104.690310Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 11/30/2020             Measured TD: 7378 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 11/30/2020
Wellbore PermitDRIFTED
Permit #:20030140 Expiration Date:2/23/2004
Proposed Depth/Form:7550 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318A , Unit Acreage: 80, Drill Unit: E/2
Wellbore Completed
Completion Date:N/A
Spud Date:10/12/2003Spud Date Is:ACTUAL
Measured TD:7378 ft.Measured PB depth:7343 ft.
True Vertical TD:True Vertical PB depth:
Log Types:GR, IND, DENSITY, NEUTRON, CBL
Log Types:CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 406 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 285, Top: 0 ft., Bottom: 406 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7343 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 440, Top: 3492 ft., Bottom: 7343 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2720 ft.NN
PARKMAN3690 ft.NN
SUSSEX4220 ft.NN
SHANNON4560 ft.NN
NIOBRARA6840 ft.NN
FORT HAYS7095 ft.NN
CODELL7142 ft.NN
CARLILE7172 ft.NN
GREENHORN7215 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 9/24/2020                 Interval Top: 7147 ft.    Interval Bottom: 7155 ft.

 Completed Information for Formation CODELL
1st Production Date:11/6/2003Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/7/2012
Treatment Summary:Reperf'd Codell. Re-Frac'd Codell w/ 119 bbl FE-1A pad, 595 bbls of 26# pHaser pad, 1991 bbls of 26# pHaser, 217670 # 20/40 Preferd Rock , 8000# 20/40 SB Excel.
Formation Treatment
Treatment Date:10/23/2003
Treatment Summary:10/23/03 BJ SERVICES FRACED WITH 2980 BBL OF 20# VISTAR GEL, 220,000# OF 20/40 MESH SAND AND 8000# OF 20/40 SUPER LC RESIN SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 48
BTU_GAS 1233
CALC_GOR 2500
CASING_PRESS 1333
GRAVITY_OIL 54
MCF_GAS 120
Perforation Data:
Interval Top:7147 ft.# Of Holes:48
Interval Bottom:7155 ft.Hole Size:0.41 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 11/30/2020                Interval Top: 6862 ft.    Interval Bottom: 7155 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/23/2012Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 15
BTU_GAS 1313
CALC_BBLS_H2O 10
CALC_BBLS_OIL 15
CALC_GOR 4908
CALC_MCF_GAS 75
CASING_PRESS 1775
GRAVITY_OIL 55
MCF_GAS 75
TUBING_PRESS 1350
Perforation Data:
Interval Top:6862 ft.# Of Holes:76
Interval Bottom:7155 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 9/24/2020                 Interval Top: 6862 ft.    Interval Bottom: 6988 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:2/23/2012Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/8/2012
Treatment Summary:Perf'd Niobrara "A" 6862-6864' (4 holes), Niobrara "B" 6980-6988 (24 holes) ReFrac'd Niobrara with 119 bbl FE-1A pad, 1548 bbls of Slickwater pad, 154 bbls of pHaser 20# pad, 2262 bbls of pHaser 20# fluid system and 238670# of 20/42 Preferred Rock, 12000 # 20/40 SB Excel.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6862 ft.# Of Holes:28
Interval Bottom:6988 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/30/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
