COGIS - WELL SCOUT CARD

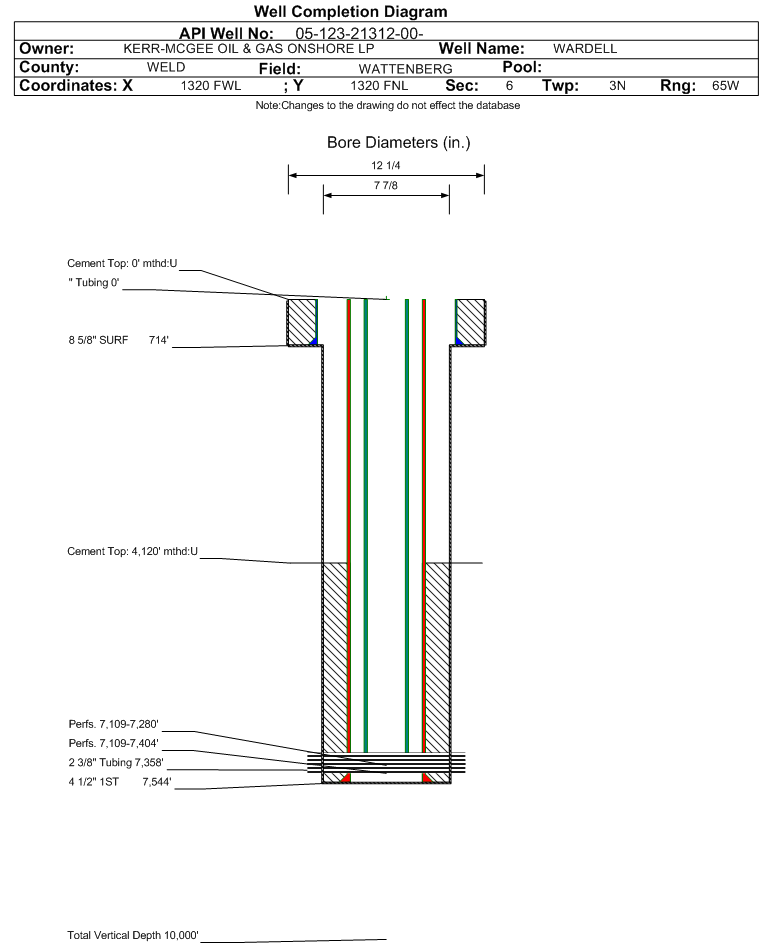

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-21312		Well Classification: GW Status: PA - 1/20/2023
Well Name/No:WARDELL #13-6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/20/2023
FacilityID:266027LocationID:331793
County:WELD #123Location:CSW 6 3N65W 6
Field:WATTENBERG - #90750Elevation:4967 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1320FSL  1320 FWLLat/Long: 40.250722 / -104.710857Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.250596 / -104.710841Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 1/20/2023             Measured TD: 7554 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 1/20/2023
Wellbore Permit
Permit #:20030040 Expiration Date:2/4/2004
Proposed Depth/Form:7535 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: SW/4
Wellbore Completed
Completion Date:3/13/2003
Spud Date:2/6/2003Spud Date Is:ACTUAL
Measured TD:7554 ft.Measured PB depth:7513 ft.
True Vertical TD:True Vertical PB depth:
Log Types:REAILC, PECNLD, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 714 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 714 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7544 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 435, Top: 4120 ft., Bottom: 7544 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4490 ft.NN
NIOBRARA7104 ft.NN
FORT HAYS7367 ft.NN
CODELL7391 ft.NN

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 1/20/2023                 Interval Top: 7109 ft.    Interval Bottom: 7404 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:6/15/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/3/2010
Treatment Summary:NBRR PERF 7109-7280 HOLES 90 SIZE 0.42. CODL PERF 7390-7404 HOLES 68 SIZE 0.38. REPERF CODL 7390-7404 HOLES 56 SIZE 0.38. REFRAC CODL W/203,952 GAL SW & 150,100# 40/70 SAND & 4,000# SUPERLC.
Formation Treatment
Treatment Date:3/13/2003
Treatment Summary:CODL PERFS 02/28/2003 7391-7403
Tubing Size:2.375 in.Tubing Setting Depth:7358 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/23/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 7
BTU_GAS 1225
CALC_BBLS_H2O 0
CALC_BBLS_OIL 10
CALC_GOR 34800
CALC_MCF_GAS 348
CASING_PRESS 900
GRAVITY_OIL 62
MCF_GAS 236
TUBING_PRESS 500
Perforation Data:
Interval Top:7109 ft.# Of Holes:158
Interval Bottom:7404 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 6/30/2010                 Interval Top: 7109 ft.    Interval Bottom: 7280 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/6/2007Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/28/2007
Treatment Summary:REPERF & REFRAC NBRR W/182,230 GALS FLUID & 201,320# 30/50 SAND. 7109-7128 (1SPF), 7164-7188 (1 SPF), 7254-7280 (1 SPF), NBRR PERFS 02/10/2003 7110-7186
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7109 ft.# Of Holes:69
Interval Bottom:7280 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/20/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
