Wellbore #00 Wellbore Classification: GW Status: PR - 11/1/2017 Measured TD: 8383 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/1/2017 | | Wellbore Permit | | | Permit #: | 20021223 | Expiration Date: | 6/25/2003 | | Proposed Depth/Form: | 8400 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 320, Drill Unit: S/2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232,318A , Unit Acreage: 320, Drill Unit: S/2 | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5300 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 4500 ft., Bottom: 5300 ft. |
| | |

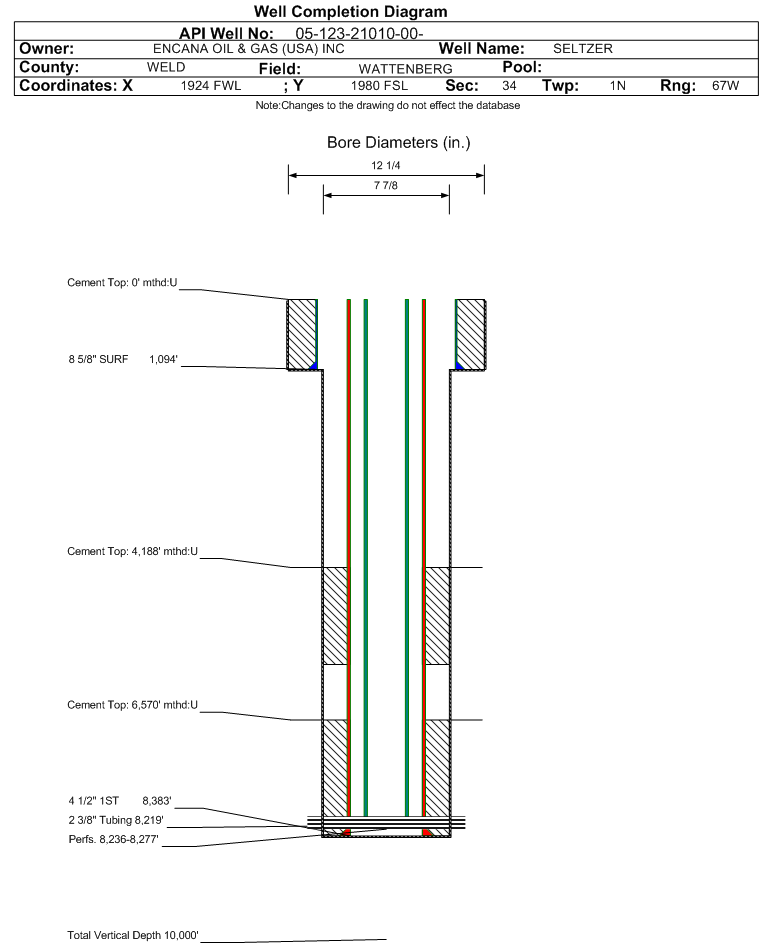

| Wellbore Completed | | Completion Date: | 9/26/2002 | | Spud Date: | 7/8/2002 | Spud Date Is: | ACTUAL | | Measured TD: | 8383 ft. | Measured PB depth: | 8360 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL, CD/CN, DUAL IND. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1094 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 440, Top: 0 ft., Bottom: 1094 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8383 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 6570 ft., Bottom: 8383 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5705 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 425, Top: 4188 ft., Bottom: 5705 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4734 ft. | | N | N | | SHANNON | 5376 ft. | | N | N | | NIOBRARA | 7350 ft. | | N | N | | FORT HAYS | 7773 ft. | | N | N | | CODELL | 7797 ft. | | N | N | | CARLILE | 7821 ft. | | N | N | | GREENHORN | 7842 ft. | | N | N | | GRANEROS | 8067 ft. | | N | N | | BENTONITE | 8067 ft. | | N | N | | MOWRY | 8212 ft. | | N | N | | J-2 SAND | 8235 ft. | | N | N | | SKULL CREEK | 8328 ft. | | N | N |
Formation JSND Formation Classification: GW Status: PR - 11/1/2017 Interval Top: 8236 ft. Interval Bottom: 8277 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/26/2002 | | Treatment Summary: | PERF THE J SAND FROM 8236'-8244', 8248'-8258', 8260'-8277' W/2 SPF. FRAC W/380,000# 20/40, 107,000 GALS DYNAFLOW-2 FRAC FRUILD AND 798 BBLS 147 TONS CO2. FLOW BACK WELL. RUN PROD TBG. SWAB. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8219 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/20/2002 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 23 | | BBLS_OIL | 8 | | CALC_BBLS_H2O | 23 | | CALC_BBLS_OIL | 8 | | CALC_GOR | 71625 | | CALC_MCF_GAS | 573 | | CASING_PRESS | 320 | | MCF_GAS | 573 |
| | Perforation Data: | | Interval Top: | 8236 ft. | # Of Holes: | 70 | | Interval Bottom: | 8277 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 1 |
| Total Gas Produced (MCF) | 1697 |
| GOR | 1697000 |
| GOR Determination | MCFE |
| Average BOE per Day | 0.809 |
| Average MCFE per Day | 4.671 |
| Federal Financial Assurance | i | |
|
|
