COGIS - WELL SCOUT CARD

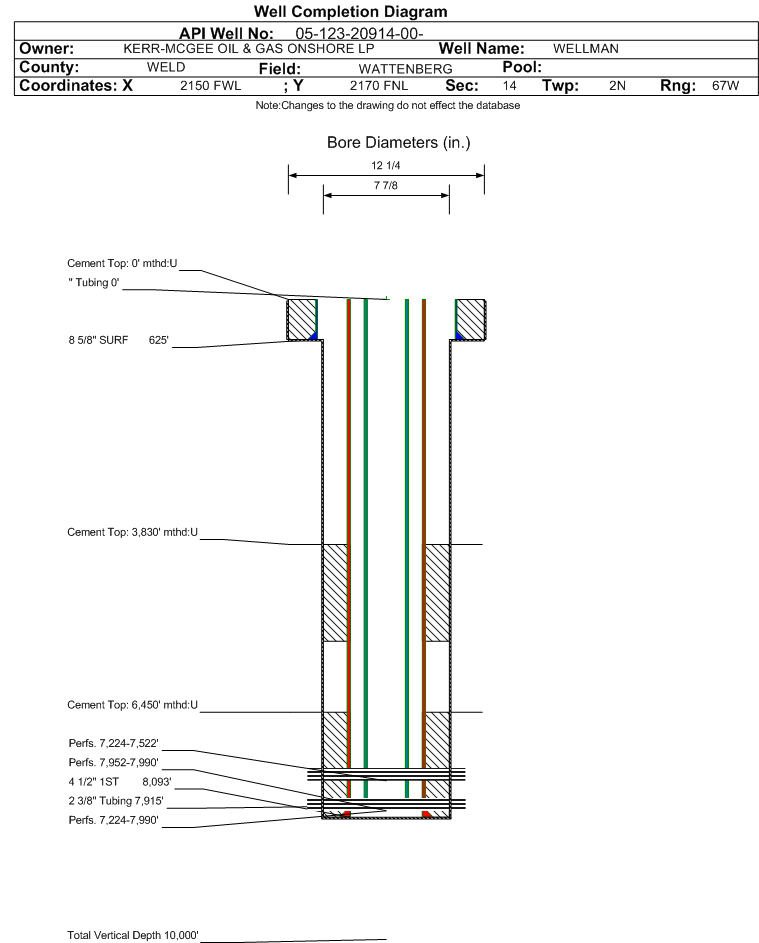

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-20914		Well Classification: GW Status: SI - 3/1/2022
Well Name/No:WELLMAN #6-14A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date3/1/2022
FacilityID:263536LocationID:331568
County:WELD #123Location:SENW 14 2N67W 6
Field:WATTENBERG - #90750Elevation:4930 ft.
Planned Location:2170FNL  2150 FWLLat/Long: 40.139347 / -104.859578Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.139350 / -104.859580Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 3/1/2022             Measured TD: 8100 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 3/1/2022
Wellbore Permit
Permit #: Expiration Date:6/1/2012
Proposed Depth/Form:8100 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: W/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: E/2NW/4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 625 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 440, Top: 0 ft., Bottom: 625 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8093 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 250, Top: 6480 ft., Bottom: 8093 ft.
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5340 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 350, Top: 4080 ft., Bottom: 5340 ft.
Wellbore Completed
Completion Date:7/26/2002
Spud Date:7/6/2002Spud Date Is:ACTUAL
Measured TD:8100 ft.Measured PB depth:8078 ft.
True Vertical TD:True Vertical PB depth:
Log Types:PEAILC, PEENLD, C B L
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 625 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 440, Top: 0 ft., Bottom: 625 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8093 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 6450 ft., Bottom: 8093 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5340 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 3830 ft., Bottom: 5340 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4500 ft.NN
SHANNON4974 ft.NN
NIOBRARA7222 ft.NN
FORT HAYS7480 ft.NN
CODELL7503 ft.NN
J SAND7939 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  SI - 3/1/2022                  Interval Top: 7952 ft.    Interval Bottom: 7990 ft.

 Completed Information for Formation J SAND
1st Production Date:8/2/2002Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/2/2012
Treatment Summary:JS PERF 7952-7990 SHOTS 68 SIZE .38 4/2/2012 - Cleared out sand plug over JS to commingle well 4/10/2012 - Commingled J-Niobrara-Codell production
Formation Treatment
Treatment Date:6/25/2010
Treatment Summary:SET SAND PLUG @ 7740'.
Formation Treatment
Treatment Date:7/26/2002
Treatment Summary:FRAC'D J SAND W/500200# 20/40 MESH; 211327 GALLONS GELLED FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 2
CALC_BBLS_OIL 2
CALC_GOR 206500
CALC_MCF_GAS 413
CASING_PRESS 510
GRAVITY_OIL 60
MCF_GAS 413
TUBING_PRESS 280
Perforation Data:
Interval Top:7952 ft.# Of Holes:68
Interval Bottom:7990 ft.Hole Size:0.38 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 4/11/2012                 Interval Top: 7224 ft.    Interval Bottom: 7990 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:4/10/2012Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/2/2012
Treatment Summary:NB PERF 7224-7366 SHOTS 54 SIZE .42 CD PERF 7504-7522 SHOTS 54 JS PERF 7952-7990 SHOTS 68 SIZE .38 4/2/2012 - Cleared out sand plug over JS to commingle well 4/10/2012 - Commingled J-Niobrara-Codell production
Tubing Size:2.375 in.Tubing Setting Depth:7915 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/11/2012Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 1
BTU_GAS 1246
CALC_BBLS_OIL 1
CALC_GOR 26000
CALC_MCF_GAS 26
CASING_PRESS 720
GRAVITY_OIL 47
MCF_GAS 26
TUBING_PRESS 697
Perforation Data:
Interval Top:7224 ft.# Of Holes:176
Interval Bottom:7990 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 4/1/2020                  Interval Top: 7224 ft.    Interval Bottom: 7522 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/8/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/1/2010
Treatment Summary:NBRR PERF 7224-7366 HOLES 54 SIZE 0.42 CODL PERF 7504-7522 HOLES 54 SIZE 0.38 FRAC NBRR W/250 GAL 15% HCL & 252,029 GAL SW & 201,040# 40/70 SNAD & 4,000# SB EXCEL. FRAC CODL W/207,619 GAL SW & 150,780# 40/70 SAND & 4,000# SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/23/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1294
CALC_MCF_GAS 131
CASING_PRESS 1600
GRAVITY_OIL 47
Perforation Data:
Interval Top:7224 ft.# Of Holes:108
Interval Bottom:7522 ft.Hole Size:0.38 in.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY07/30/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
02/28/2022
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
