Wellbore #00 Wellbore Classification: GW Status: PA - 6/12/2018 Measured TD: 8422 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 6/12/2018 | | Wellbore Permit | DRIFTED | | Permit #: | 20020843 | Expiration Date: | 5/2/2003 | | Proposed Depth/Form: | 8400 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 320, Drill Unit: S2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232,318A , Unit Acreage: 320, Drill Unit: S2 | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5300 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 4500 ft., Bottom: 5300 ft. |
| | |

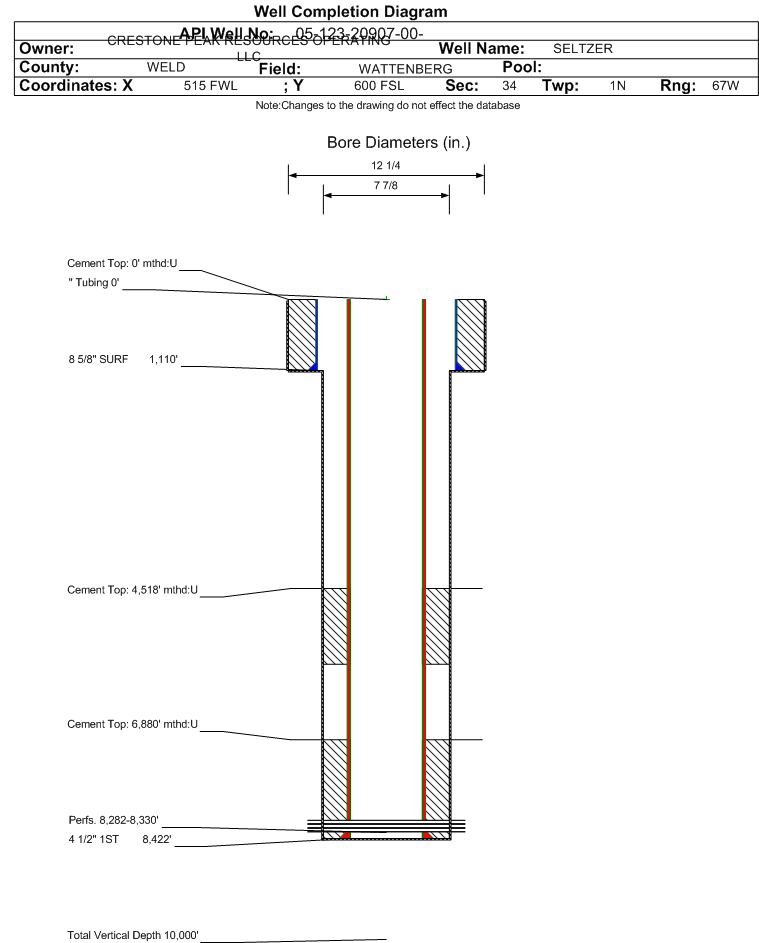

| Wellbore Completed | | Completion Date: | 7/10/2002 | | Spud Date: | 6/11/2002 | Spud Date Is: | ACTUAL | | Measured TD: | 8422 ft. | Measured PB depth: | 8413 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CD / CN, DUAL INDUCTION | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1110 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 395, Top: 0 ft., Bottom: 1110 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8422 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 6880 ft., Bottom: 8422 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5702 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 425, Top: 4518 ft., Bottom: 5702 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4796 ft. | | N | N | | SHANNON | 5431 ft. | | N | N | | NIOBRARA | 7436 ft. | | N | N | | FORT HAYS | 7809 ft. | | N | N | | CODELL | 7836 ft. | | N | N | | CARLILE | 7859 ft. | | N | N | | BENTONITE | 7878 ft. | | N | N | | GREENHORN | 7878 ft. | | N | N | | GRANEROS | 8106 ft. | | N | N | | MOWRY | 8259 ft. | | N | N | | J-2 SAND | 8279 ft. | | N | N | | SKULL CREEK | 8374 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 6/12/2018 Interval Top: 8282 ft. Interval Bottom: 8330 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J SAND | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/10/2002 | | Treatment Summary: | DRILL CMT. AND STAGE TOOL. PERF THE J SAND FROM 8282'-8292', 8295'-8322', 8328'-8330' W/2 SPF. FRAC W/551,400# 20/40 SAND&178,300 GALS OF DYNAFLOW-2. FLOW BACK. RUN PROD TBG. SWAB |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 42 | | BBLS_OIL | 3 | | CALC_BBLS_H2O | 42 | | CALC_BBLS_OIL | 3 | | CALC_GOR | 158333 | | CALC_MCF_GAS | 475 | | CASING_PRESS | 700 | | MCF_GAS | 475 | | TUBING_PRESS | 500 |
| | Perforation Data: | | Interval Top: | 8282 ft. | # Of Holes: | 78 | | Interval Bottom: | 8330 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 06/12/2018 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
