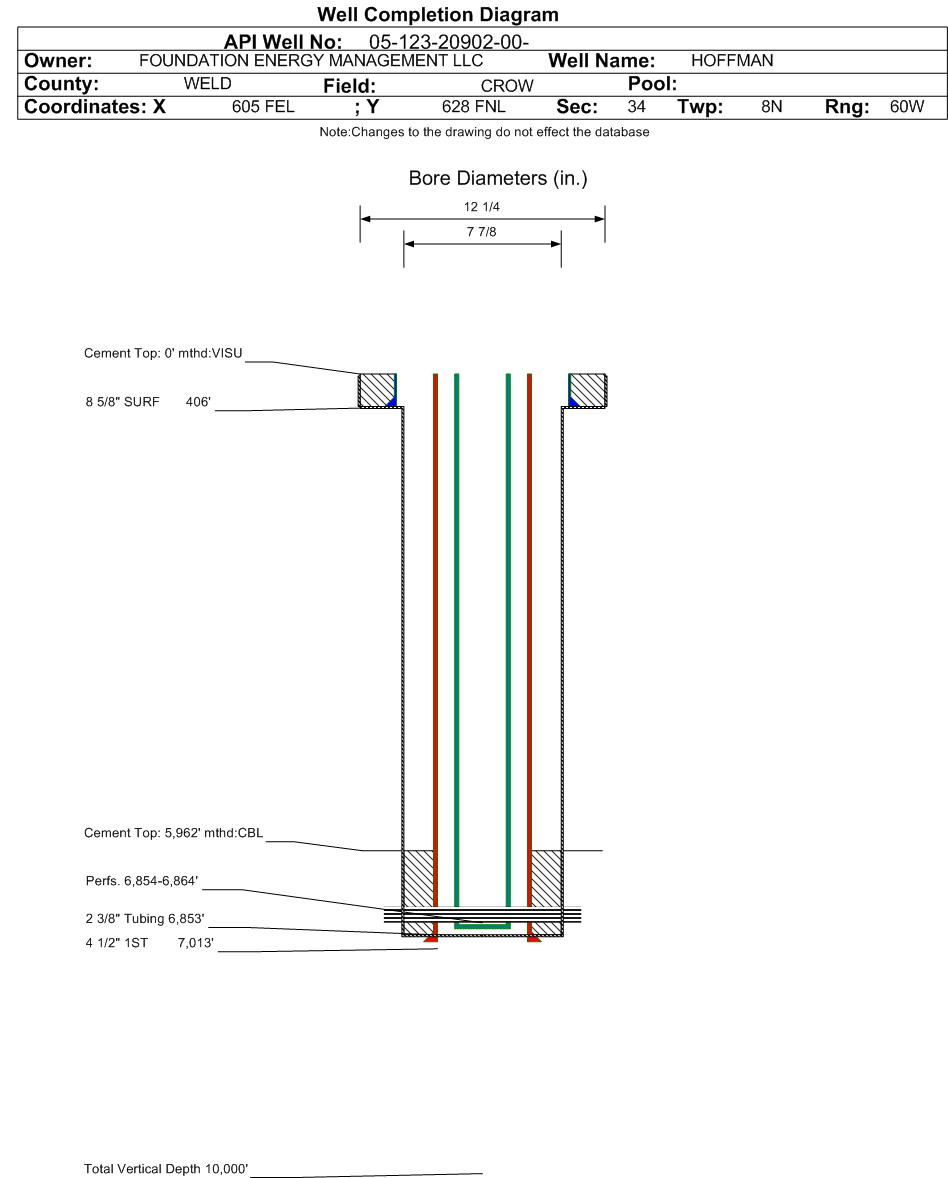

Wellbore #00 Wellbore Classification: OW Status: PR - 12/1/2025 Measured TD: 7013 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 12/1/2025 | | Wellbore Permit | | | Permit #: | 20020855 | Expiration Date: | 5/2/2003 | | Proposed Depth/Form: | 7034 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 318 , Unit Acreage: , Drill Unit: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 406 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 285, Top: 0 ft., Bottom: 406 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7013 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 5956 ft., Bottom: 7013 ft. |
| | |
| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 6/6/2002 | Spud Date Is: | ACTUAL | | Measured TD: | 7013 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | ILD, GR, CNL, FDC, SP | | Log Types: | | | Log Types: | ILD, GR, CNL, FDC, SP | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 406 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 285, Top: 0 ft., Bottom: 406 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7013 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 5962 ft., Bottom: 7013 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 0 ft., Depth: 600 ft., Bottom: 600 ft., Sacks: 230, Method: 1 INCH | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 6135 ft. | | N | N | | FORT HAYS | 6370 ft. | | N | N | | CODELL | 6428 ft. | | N | N | | BENTONITE | 6747 ft. | | N | N | | D SAND | 6852 ft. | | | | | MOWRY | 6923 ft. | | N | N | | J SAND | 6938 ft. | | N | N |
Formation DSND Formation Classification: OW Status: PR - 12/1/2025 Interval Top: 6854 ft. Interval Bottom: 6864 ft.| Completed Information for Formation D SAND | | 1st Production Date: | 6/28/2002 | Choke Size: | | | Formation Name: | D SAND | Commingled: | | | Production Method: | CASING SWAB | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/20/2002 | | Treatment Summary: | FRAC'D W/31,000 GAL X-LINKED FLUID & 50,000# 20/40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6853 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/28/2002 | Test Method: | CASING SWAB | | Hours Tested: | 10 | Gas Type: | WET | | Gas Disposal: | VENTED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 45 | | BBLS_OIL | 45 | | BTU_GAS | 1100 | | CALC_BBLS_H2O | 108 | | CALC_BBLS_OIL | 108 | | CASING_PRESS | 500 | | GRAVITY_OIL | 39 | | TUBING_PRESS | 20 |
| | Perforation Data: | | Interval Top: | 6854 ft. | # Of Holes: | 28 | | Interval Bottom: | 6864 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 277 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | BOE |
| Average BOE per Day | 0.757 |
| Average MCFE per Day | 4.393 |
| Federal Financial Assurance | i | |
|
|
