Wellbore #00 Wellbore Classification: GW Status: SI - 6/1/2024 Measured TD: 8164 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 6/1/2024 | | Wellbore Permit | | | Permit #: | 20031863 | Expiration Date: | 9/29/2004 | | Proposed Depth/Form: | 8134 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 320, Drill Unit: E2 | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: 499-1 , Unit Acreage: 320, Drill Unit: E2 | | Formation And Spacing: | Code: GRNHN , Formation: GREENHORN , Order: 318A , Unit Acreage: 320, Drill Unit: E2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 318A,232 , Unit Acreage: 320, Drill Unit: E2 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-66 , Unit Acreage: 320, Drill Unit: E/2 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 732 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 280, Top: 0 ft., Bottom: 732 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8157 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 295, Top: 6368 ft., Bottom: 8157 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4900 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 4000 ft., Bottom: 4900 ft. |
| | |

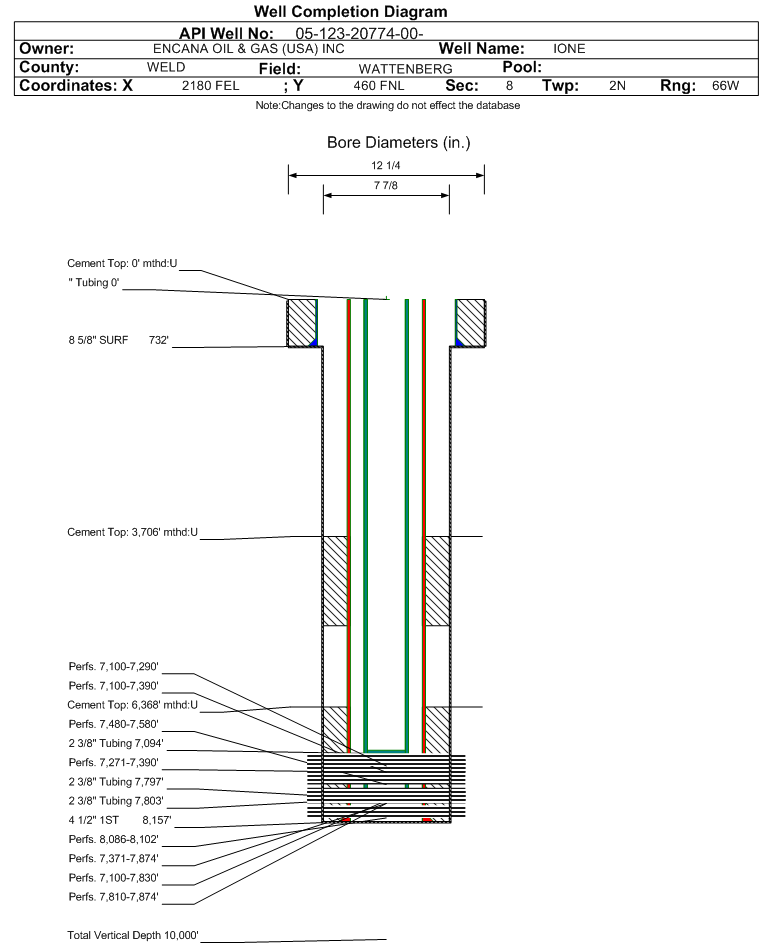

| Wellbore Completed | | Completion Date: | 3/9/2002 | | Spud Date: | 2/12/2002 | Spud Date Is: | ACTUAL | | Measured TD: | 8164 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL IND, CN/CD, DBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 732 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 280, Top: 0 ft., Bottom: 732 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8157 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 295, Top: 6368 ft., Bottom: 8157 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5090 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 278, Top: 3706 ft., Bottom: 5101 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4360 ft. | | N | N | | SHANNON | 4960 ft. | | N | N | | NIOBRARA | 7102 ft. | | N | N | | FORT HAYS | 7344 ft. | | N | N | | CODELL | 7370 ft. | | N | N | | GREENHORN | 7427 ft. | | N | N | | GRANEROS | 7645 ft. | | N | N | | BENTONITE | 7645 ft. | | N | N | | MOWRY | 7794 ft. | | N | N | | J-2 SAND | 7839 ft. | | N | N | | SKULL CREEK | 7911 ft. | | N | N | | DAKOTA | 8016 ft. | | N | N |
Formation DKTA Formation Classification: GW Status: AB - 4/14/2002 Interval Top: 8086 ft. Interval Bottom: 8102 ft.| Completed Information for Formation DAKOTA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | DAKOTA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/9/2002 | | Treatment Summary: | PERF DAKOTA FROM 8086-8102' W/ 4 SPF. SWAB TEST. ABANDON W/ CIBP |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation DKTA. |
| | Perforation Data: | | Interval Top: | 8086 ft. | # Of Holes: | 64 | | Interval Bottom: | 8102 ft. | Hole Size: | 0.38 in. |
|
Formation JSND Formation Classification: GW Status: SI - 6/1/2024 Interval Top: 7810 ft. Interval Bottom: 7874 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 3/15/2002 | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/9/2002 | | Treatment Summary: | DRILL OUT STAGE CMT. PERF DAKOTA AS BELOW. SWAB TEST. ABANDON DAKOTA AS BELOW. PERF J SAND FROM 7810-30' & 7838-74' W/ 4 SPF. FRAC W/ 477,400# 20/40 SAND IN 172,746 GALS FLUID. FLOW BACK. RUN PROD TBG. SWAB BACK |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 20 | | BBLS_OIL | 8 | | CALC_GOR | 71734 | | CASING_PRESS | 450 | | MCF_GAS | 567 | | TUBING_PRESS | 250 |
| | Perforation Data: | | Interval Top: | 7810 ft. | # Of Holes: | 224 | | Interval Bottom: | 7874 ft. | Hole Size: | 0.38 in. |
|
Formation GRNHN Formation Classification: GW Status: SI - 6/1/2024 Interval Top: 7480 ft. Interval Bottom: 7580 ft.| Completed Information for Formation GREENHORN | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | GREENHORN | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/9/2002 | | Treatment Summary: | SEE OGCC COMMENTS |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation GRNHN. |
| | Perforation Data: | | Interval Top: | 7480 ft. | # Of Holes: | 240 | | Interval Bottom: | 7580 ft. | Hole Size: | |
|
Formation J-CDL Formation Classification: GW Status: CM - 3/21/2003 Interval Top: 7371 ft. Interval Bottom: 7874 ft.| Completed Information for Formation J-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J-CODELL | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/9/2002 | | Treatment Summary: | RIH W/ TBG. TAG @ 7913'. LANDED 248 JTS @ 7803'. SWAB |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7803 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/21/2003 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 12 | | BBLS_OIL | 25 | | CALC_BBLS_H2O | 12 | | CALC_BBLS_OIL | 25 | | CALC_GOR | 16400 | | CALC_MCF_GAS | 410 | | CASING_PRESS | 100 | | MCF_GAS | 410 | | TUBING_PRESS | 250 |
| | Perforation Data: | | Interval Top: | 7371 ft. | # Of Holes: | 300 | | Interval Bottom: | 7874 ft. | Hole Size: | |
|
Formation CODL Formation Classification: GW Status: CM - 4/14/2002 Interval Top: 7271 ft. Interval Bottom: 7390 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/9/2002 | | Treatment Summary: | TAG SAND PLUG @ 7585' KB. PERF'D THE CODELL FROM 7371 - 7390' W/ 4 SPF. FRAC'D W/ 303,000# 20/40 SAND AND 122,900 DYNAFLOW-2 CROSSLINKED GEL. FLOW BACK WELL |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 12 | | BBLS_OIL | 11 | | CALC_BBLS_H2O | 12 | | CALC_BBLS_OIL | 11 | | CALC_GOR | 2182 | | CALC_MCF_GAS | 24 | | CASING_PRESS | 100 | | MCF_GAS | 24 | | TUBING_PRESS | 250 |
| | Perforation Data: | | Interval Top: | 7271 ft. | # Of Holes: | 76 | | Interval Bottom: | 7390 ft. | Hole Size: | |
|
Formation JGRNC Formation Classification: GW Status: CM - 4/23/2009 Interval Top: 7100 ft. Interval Bottom: 7830 ft.| Completed Information for Formation JSND-GREENHORN-NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | JSND-GREENHORN-NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/9/2002 | | Treatment Summary: | JSND-GRNHN-NBRR-CDL COMMINGLE. DRILLED OUT CBP'S @ 7330' AND 7450' TO COMMINGLE THE JSND-GRNHN-NBRR-CDL. 04/19/09. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7797 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/23/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 10 | | BBLS_OIL | 16 | | BTU_GAS | 1332 | | CALC_BBLS_H2O | 10 | | CALC_BBLS_OIL | 16 | | CALC_GOR | 8375 | | CALC_MCF_GAS | 134 | | CASING_PRESS | 547 | | GRAVITY_OIL | 51 | | MCF_GAS | 134 | | TUBING_PRESS | 230 |
| | Perforation Data: | | Interval Top: | 7100 ft. | # Of Holes: | 900 | | Interval Bottom: | 7830 ft. | Hole Size: | 0.42 in. |
|
Formation NB-CD Formation Classification: GW Status: SI - 6/1/2024 Interval Top: 7100 ft. Interval Bottom: 7390 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/8/2009 | | Treatment Summary: | NBRR-CDL REFRAC AND RECOMPLETION. SET CBP@7450'. 03/31/09. RE-FRAC'D THE CODELL WITH 110,208 GAL 24# VISTAR HYBRID CROSS LINKED GEL CONTAINING 251,020# 20/40 SAND. 04/01/09 SET CBP@7330'. 04/06/09 FRAC'D THE NIOBRARA WITH 146,966 GAL 26# CONT NEXTPAGE. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 7100 ft. | # Of Holes: | 436 | | Interval Bottom: | 7390 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: GW Status: CM - 11/28/2003 Interval Top: 7100 ft. Interval Bottom: 7290 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/9/2002 | | Treatment Summary: | SEE OGCC COMMENTS |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7094 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/28/2003 | Test Method: | | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 4 | | BBLS_OIL | 6 | | CASING_PRESS | 800 | | MCF_GAS | 40 | | TUBING_PRESS | 560 |
| | Perforation Data: | | Interval Top: | 7100 ft. | # Of Holes: | 360 | | Interval Bottom: | 7290 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
04/2024 - 03/2025 |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 1148 |
| GOR | 95666 |
| GOR Determination | MCFE |
| Average BOE per Day | 0.576 |
| Average MCFE per Day | 3.339 |
| Federal Financial Assurance | i | |
|
|
