COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-20764		Well Classification: GW Status: PA - 3/18/2022
Well Name/No:BALLANTINE #4-30A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/18/2022
FacilityID:262596LocationID:331484
County:WELD #123Location:NWNW 30 2N68W 6
Field:WATTENBERG - #90750Elevation:4990 ft.
Basin:DENVER (DJ) BASIN
Planned Location:470FNL  470 FWLLat/Long: 40.115226 / -105.053808Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.115241 / -105.053749Lat/Long Source: Field Measured

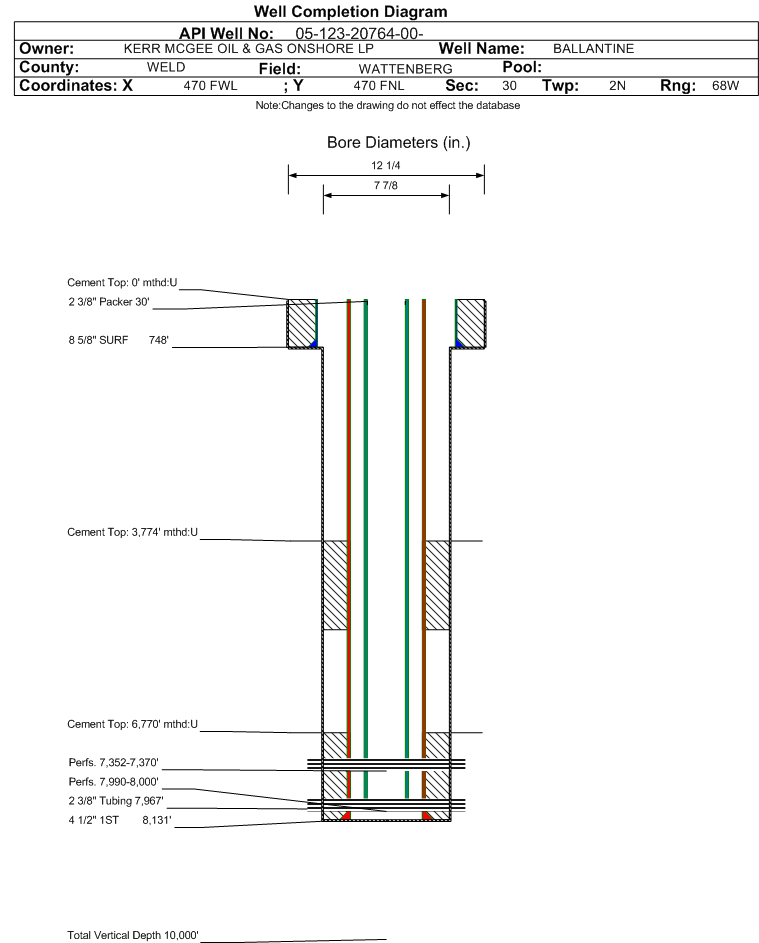

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 3/18/2022             Measured TD: 8138 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 3/18/2022
Wellbore Permit
Permit #:20054101 Expiration Date:12/1/2006
Proposed Depth/Form:8138 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: N/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 250 , Unit Acreage: 320, Drill Unit: N/2
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 748 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 555, Top: 0 ft., Bottom: 748 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8131 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 225, Top: 6770 ft., Bottom: 8131 ft.
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5157 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 285, Top: 3774 ft., Bottom: 5163 ft.
Wellbore Completed
Completion Date:N/A
Spud Date:1/14/2003Spud Date Is:ACTUAL
Measured TD:8138 ft.Measured PB depth:8101 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:PEAILC, PECNLD, PERML, C B L
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 748 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 555, Top: 0 ft., Bottom: 748 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8131 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 285, Top: 6770 ft., Bottom: 8131 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 950 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 65, Top: 610 ft., Bottom: 950 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5157 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 3774 ft., Bottom: 5163 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4355 ft.NN
SHANNON4781 ft.NN
NIOBRARA7238 ft.NN
FORT HAYS7531 ft.NN
CODELL7553 ft.NN
J SAND7977 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 3/18/2022                 Interval Top: 7990 ft.    Interval Bottom: 8000 ft.

 Completed Information for Formation J SAND
1st Production Date:11/2/2009Choke Size:
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/2/2009
Treatment Summary:NO ADDITIONAL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 1
BTU_GAS 1174
CALC_BBLS_H2O 0
CALC_BBLS_OIL 6
CALC_GOR 7000
CALC_MCF_GAS 42
CASING_PRESS 332
GRAVITY_OIL 50
MCF_GAS 150
TUBING_PRESS 334
Perforation Data:
Interval Top:7990 ft.# Of Holes:40
Interval Bottom:8000 ft.Hole Size:0.42 in.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 3/18/2022                 Interval Top: 7352 ft.    Interval Bottom: 7370 ft.

 Completed Information for Formation CODELL
1st Production Date:2/2/2006Choke Size:
Formation Name:CODELLCommingled:
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/2/2009
Treatment Summary:NO ADDITIONAL TREATMENT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 53
BTU_GAS 1174
CALC_BBLS_H2O 0
CALC_BBLS_OIL 2
CALC_GOR 21000
CALC_MCF_GAS 42
CASING_PRESS 332
GRAVITY_OIL 50
MCF_GAS 207
TUBING_PRESS 334
Perforation Data:
Interval Top:7352 ft.# Of Holes:54
Interval Bottom:7370 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/18/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
