COGIS - WELL SCOUT CARD

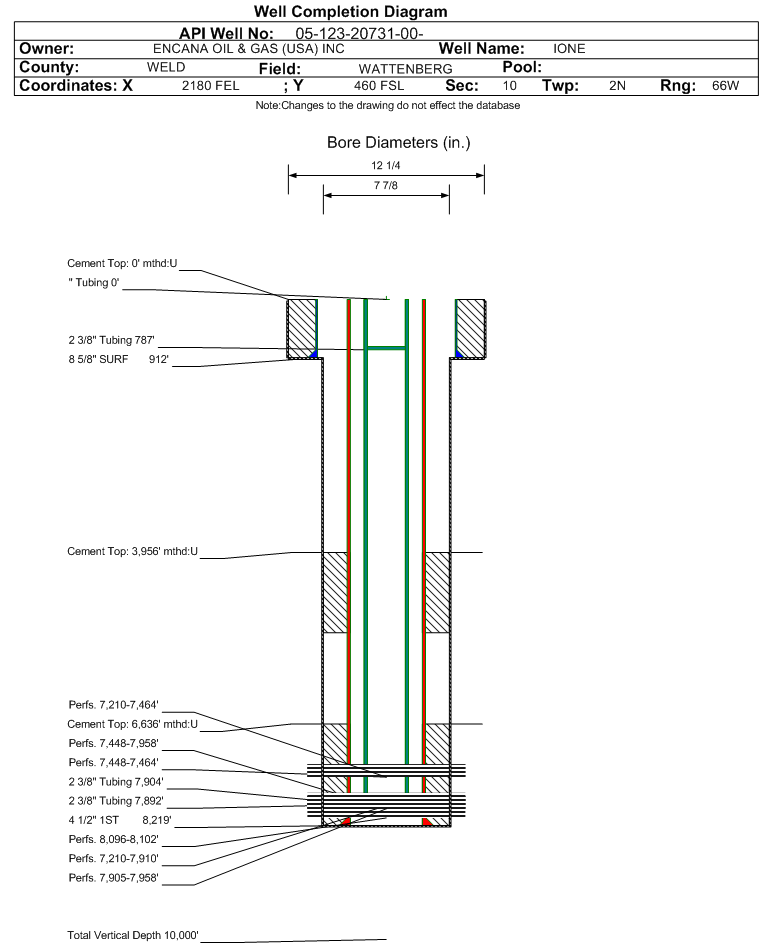

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-20731
Well Classification: GW Status: SI - 7/1/2022
Well Name/No:IONE #34-10
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:SIStatus Date7/1/2022
FacilityID:262191LocationID:331474
County:WELD #123Location:SWSE 10 2N66W 6
Field:WATTENBERG - #90750Elevation:4990 ft.
Planned Location:460FSL  2180 FELLat/Long: 40.146567 / -104.761759Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.146703 / -104.761635Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 7/1/2022             Measured TD: 8212 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 7/1/2022
Wellbore Permit
Permit #:20022159 Expiration Date:11/24/2003
Proposed Depth/Form:8212 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: 499-1 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 318A,232 , Unit Acreage: 320, Drill Unit: E2
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5000 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 250, Top: 4100 ft., Bottom: 5000 ft.

Wellbore Completed
Completion Date:4/13/2002
Spud Date:3/5/2002Spud Date Is:ACTUAL
Measured TD:8212 ft.Measured PB depth:8202 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL IND, CD/CN, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 912 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 344, Top: 0 ft., Bottom: 912 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8219 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 280, Top: 6636 ft., Bottom: 8219 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5206 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 3956 ft., Bottom: 5210 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4513 ft.NN
SHANNON5143 ft.NN
NIOBRARA7178 ft.NN
FORT HAYS7421 ft.NN
CODELL7447 ft.NN
CARLILE7465 ft.NN
GREENHORN7510 ft.NN
GRANEROS7727 ft.NN
BENTONITE7727 ft.NN
MOWRY7881 ft.NN
J-2 SAND7905 ft.NN
SKULL CREEK8008 ft.NN
DAKOTA8094 ft.NN

Formation DKTA                     Formation Classification:  GW                     Status:  AB - 3/28/2002                 Interval Top: 8096 ft.    Interval Bottom: 8102 ft.

 Completed Information for Formation DAKOTA
1st Production Date:N/AChoke Size:
Formation Name:DAKOTACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/13/2002
Treatment Summary:DRILL OUT CEMENT. PERF DAKOTA FROM 8096-8102'. SET PKR @ 7956'. BREAKDOWN FM. SWAB & EVALUATE. POOCH W/PKR. ABANDON ZONE.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DKTA.
Perforation Data:
Interval Top:8096 ft.# Of Holes:24
Interval Bottom:8102 ft.Hole Size:0.38 in.

Formation JSND                     Formation Classification:  GW                     Status:  SI - 7/1/2022                  Interval Top: 7905 ft.    Interval Bottom: 7958 ft.

 Completed Information for Formation J SAND
1st Production Date:4/18/2002Choke Size:0.250 in.
Formation Name:J SANDCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/30/2002
Treatment Summary:PERF J SAND FROM 7905-7910 & 7927-7958' W/4 SPF. FRAC W/ 559,400# 20/40 SAND IN 193,872 GALS DYNAFLOW -2. RUN PROD TBG. FLOW BACK FRAC.
Tubing Size:2.375 in.Tubing Setting Depth:7904 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/30/2002Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 35
BBLS_OIL 10
CALC_BBLS_H2O 35
CALC_BBLS_OIL 10
CALC_GOR 48770
CALC_MCF_GAS 488
CASING_PRESS 560
MCF_GAS 488
TUBING_PRESS 380
Perforation Data:
Interval Top:7905 ft.# Of Holes:144
Interval Bottom:7958 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 2/21/2003                 Interval Top: 7448 ft.    Interval Bottom: 7464 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/21/2003
Treatment Summary:TAG SAND @ 7528'. PERF'D THE CODELL FROM 7448-7464' W/ 4 SPF. FRAC'D THE CODELL W/ 300,000# 20/40 FRAC SAND. FLOW BACK WELL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/21/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 29
BBLS_OIL 38
CALC_BBLS_H2O 29
CALC_BBLS_OIL 38
CALC_GOR 4158
CALC_MCF_GAS 158
CASING_PRESS 100
MCF_GAS 158
Perforation Data:
Interval Top:7448 ft.# Of Holes:64
Interval Bottom:7464 ft.Hole Size:

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 3/20/2003                 Interval Top: 7448 ft.    Interval Bottom: 7958 ft.

 Completed Information for Formation J-CODELL
1st Production Date:N/AChoke Size:0.281 in.
Formation Name:J-CODELLCommingled:No
Production Method:PUMPING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/20/2003
Treatment Summary:RIH W/TBG. LAND @ 7892' KB.
Tubing Size:2.375 in.Tubing Setting Depth:7892 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/20/2003Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 13
BBLS_OIL 19
CALC_BBLS_H2O 13
CALC_BBLS_OIL 19
CALC_GOR 15105
CALC_MCF_GAS 267
CASING_PRESS 100
MCF_GAS 287
Perforation Data:
Interval Top:7448 ft.# Of Holes:208
Interval Bottom:7958 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 10/17/2009                Interval Top: 7210 ft.    Interval Bottom: 7910 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/17/2009
Treatment Summary:JSND-NBRR-CDL COMMINGLE DRILLED OUT CIBP'S TO COMMINGLE THE JSND-NBRR-CDL. 10/14/09
Formation Treatment
Treatment Date:2/19/2006
Treatment Summary:JSND-NBRR-CDL COMMINGLE -DRILLED OUT CBP'S TO COMMINGLE THE JSND-NBRR-CDL 02/16/06
Tubing Size:2.375 in.Tubing Setting Depth:787 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/17/2009Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 16
BBLS_OIL 18
BTU_GAS 1384
CALC_BBLS_H2O 16
CALC_BBLS_OIL 18
CALC_GOR 9944
CALC_MCF_GAS 179
CASING_PRESS 740
GRAVITY_OIL 52
MCF_GAS 179
TUBING_PRESS 375
Perforation Data:
Interval Top:7210 ft.# Of Holes:252
Interval Bottom:7910 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 7/1/2022                  Interval Top: 7210 ft.    Interval Bottom: 7464 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/17/2009Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/8/2006
Treatment Summary:NBRR-CDL RECOMPLETION - SET CBP@7530'. RE-FRAC'D THE CODELL WITH 114,660 GAL 24# VISTAR CROSS LINKED GEL CONTAINING 251,160# 20/40 SAND. 9/13/09. SET CBP@7300 . 9/17/09. RE-FRAC'D THE NIOBRARA WITH 250,620# 20/40 SAND 3601 BBLS VISTAR 22 X6F. 9/21/09.
Formation Treatment
Treatment Date:2/7/2006
Treatment Summary:NBRR-CDL RECOMPLETION FRAC'D THE CODELL ( 7448-7464') WITH 300,000# FRAC SAND. 02-03 SET CBP @ 7350'. 02-05-06. FRAC'D THE NIOBRARA "B" (7210-7246') WITH 177,240 GAL FRAC FLUID AND 251,100# SAND. 02-08-06
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7210 ft.# Of Holes:228
Interval Bottom:7464 ft.Hole Size:0.42 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
06/30/2022
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
