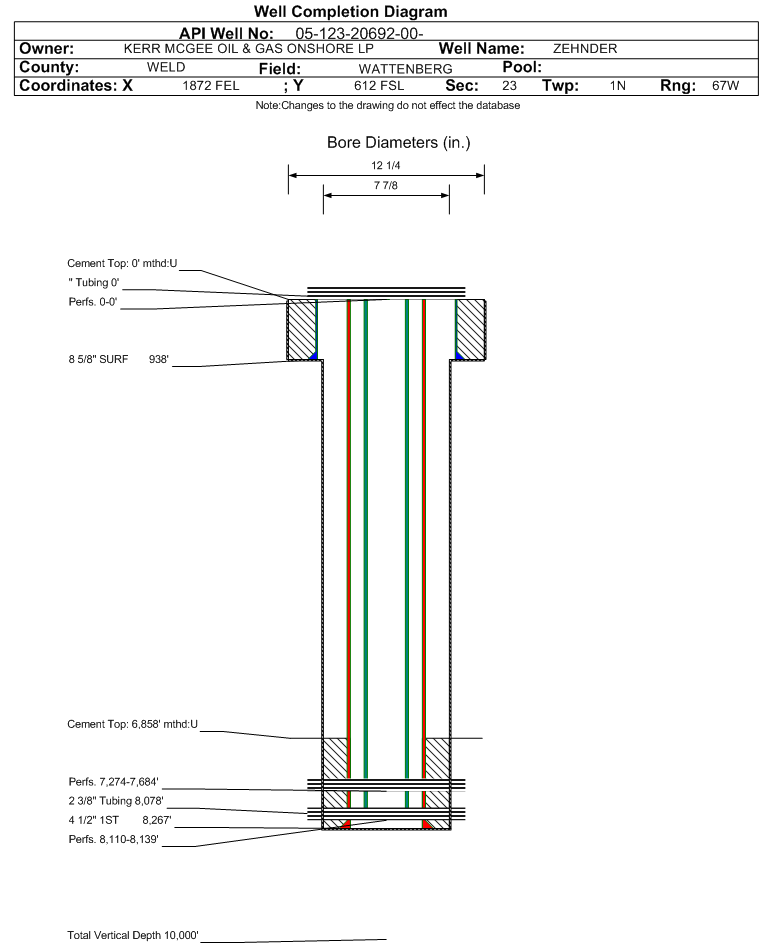

Wellbore #00 Wellbore Classification: GW Status: PA - 12/7/2018 Measured TD: 8275 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 12/7/2018 | | Wellbore Permit | DRIFTED | | Permit #: | 20031922 | Expiration Date: | 10/21/2004 | | Proposed Depth/Form: | 8275 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: SE/4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 938 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 660, Top: 0 ft., Bottom: 938 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8267 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 260, Top: 6850 ft., Bottom: 8267 ft. | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5029 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 230, Top: 4130 ft., Bottom: 5034 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5029 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 230, Top: 4130 ft., Bottom: 5034 ft. |
| | |
| Wellbore Completed | | Completion Date: | 1/29/2002 | | Spud Date: | 1/10/2002 | Spud Date Is: | ACTUAL | | Measured TD: | 8275 ft. | Measured PB depth: | 8237 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DIGLGR, CDCNGR, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 938 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 660, Top: 0 ft., Bottom: 938 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8267 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 260, Top: 6858 ft., Bottom: 8267 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5028 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 4160 ft., Bottom: 5034 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4721 ft. | | N | N | | NIOBRARA | 7272 ft. | | N | N | | FORT HAYS | 7650 ft. | | N | N | | CODELL | 7671 ft. | | N | N | | J SAND | 8101 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 12/7/2018 Interval Top: 8110 ft. Interval Bottom: 8139 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 2/25/2002 | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/29/2002 | | Treatment Summary: | 255,890 GAL FLUID; 82,740# 20/40 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 9 | | CALC_BBLS_OIL | 9 | | CALC_GOR | 13333 | | CALC_MCF_GAS | 120 | | CASING_PRESS | 900 | | GRAVITY_OIL | 53 | | MCF_GAS | 120 | | TUBING_PRESS | 800 |
| | Perforation Data: | | Interval Top: | 8110 ft. | # Of Holes: | 72 | | Interval Bottom: | 8139 ft. | Hole Size: | 0.38 in. |
|
Formation NB-CD Formation Classification: GW Status: AB - 12/7/2018 Interval Top: 7274 ft. Interval Bottom: 7684 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 3/17/2004 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/29/2002 | | Treatment Summary: | CODELL-NIOBRARA 159528 GAL FLUID FRAC INFO REPRESENTS; CODELL-NIOBRARA 105140 LBS 20/40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8078 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 18 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 18 | | CALC_GOR | 2500 | | CALC_MCF_GAS | 45 | | CASING_PRESS | 447 | | GRAVITY_OIL | 47 | | MCF_GAS | 45 | | TUBING_PRESS | 447 |
| | Perforation Data: | | Interval Top: | 7274 ft. | # Of Holes: | 26 | | Interval Bottom: | 7684 ft. | Hole Size: | 0.42 in. |
|
Formation JNBCD Formation Classification: GW Status: CM - 1/4/2005| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/29/2002 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8078 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/4/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 15 | | CALC_BBLS_OIL | 15 | | CALC_GOR | 7866 | | CALC_MCF_GAS | 118 | | CASING_PRESS | 800 | | MCF_GAS | 118 | | TUBING_PRESS | 100 |
| | Perforation Data: | | Interval Top: | | # Of Holes: | | | Interval Bottom: | | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 12/07/2018 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
