COGIS - WELL SCOUT CARD

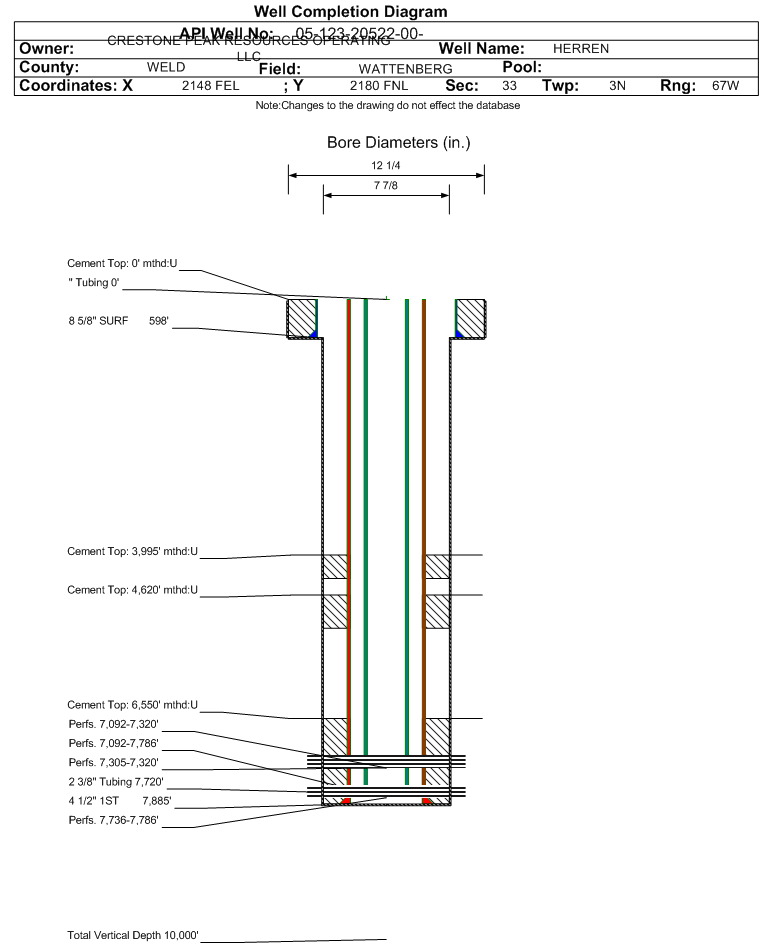

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-20522		Well Classification: GW Status: PA - 10/3/2018
Well Name/No:HERREN #32-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/3/2018
FacilityID:260652LocationID:331341
County:WELD #123Location:SWNE 33 3N67W 6
Field:WATTENBERG - #90750Elevation:5020 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2180FNL  2148 FELLat/Long: 40.183436 / -104.893674Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.183547 / -104.893458Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/3/2018             Measured TD: 7885 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/3/2018
Wellbore Permit
Permit #:20021936 Expiration Date:10/20/2003
Proposed Depth/Form:7885 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 320, Drill Unit: W2
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: 499-1 , Unit Acreage: 320, Drill Unit: W2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 318A,232 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:1/11/2002
Spud Date:1/4/2002Spud Date Is:ACTUAL
Measured TD:7885 ft.Measured PB depth:7868 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CD-CN-GR-CBL
Log Types:CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 598 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 598 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7885 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 6550 ft., Bottom: 7885 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5138 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 4620 ft., Bottom: 5138 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 4000 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 3995 ft., Bottom: 4360 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4170 ft.NN
SHANNON4737 ft.NN
NIOBRARA7049 ft.NN
FORT HAYS7282 ft.NN
CARLILE7303 ft.NN
CODELL7303 ft.NN
GREENHORN7349 ft.NN
GRANEROS7569 ft.NN
BENTONITE7569 ft.NN
MOWRY7719 ft.NN
J-2 SAND7736 ft.NN
SKULL CREEK7843 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 10/3/2018                 Interval Top: 7736 ft.    Interval Bottom: 7786 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:SI TO TEST CODL.
Open Hole Completion:No
Formation Treatment
Treatment Date:2/5/2002
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 28
BBLS_OIL 5
CALC_BBLS_H2O 28
CALC_BBLS_OIL 5
CALC_GOR 98889
CALC_MCF_GAS 445
CASING_PRESS 160
MCF_GAS 445
Perforation Data:
Interval Top:7736 ft.# Of Holes:176
Interval Bottom:7786 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/27/2002                Interval Top: 7305 ft.    Interval Bottom: 7320 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:0.281 in.
Formation Name:CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/5/2002
Treatment Summary:SET RBP @ 7400'. PERF THE CODL FROM 7305-7320' W/4SOF, FRAC W.301,810# 20/40 FRAC SAND AND 137,550 GALS DYNAFLOW-2 FRAC FLUID. FLOW BACK WELL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/27/2002Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 26
CALC_BBLS_H2O 15
CALC_BBLS_OIL 26
CALC_GOR 2385
CALC_MCF_GAS 62
CASING_PRESS 155
MCF_GAS 62
Perforation Data:
Interval Top:7305 ft.# Of Holes:60
Interval Bottom:7320 ft.Hole Size:

Formation JNBCD                   Formation Classification:  OW                   Status:  CM - 4/7/2009                  Interval Top: 7092 ft.    Interval Bottom: 7786 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/8/2009
Treatment Summary:ALSO HOLES SIZE 42/100. // JSND-NBRR-CODL COMMINGLE. RELEASED RFP @7200'. RELEASED RBP @ 7423' TO COMMINGLE JSND-NBRR-CODL. 3/3/09
Formation Treatment
Treatment Date:2/5/2002
Treatment Summary:JSND-NBRR-CDL COMMINGLE RELEASED RFP @ 7200'. 03-02-09. RELEASED RBP @ 7423' TO COMMINGLE THE JSND-NBRR-CDL 03-03-09.
Tubing Size:2.375 in.Tubing Setting Depth:7720 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2009Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 18
BBLS_OIL 16
BTU_GAS 1276
CALC_BBLS_H2O 18
CALC_BBLS_OIL 16
CALC_GOR 9312
CALC_MCF_GAS 149
CASING_PRESS 767
GRAVITY_OIL 53
MCF_GAS 149
TUBING_PRESS 610
Perforation Data:
Interval Top:7092 ft.# Of Holes:284
Interval Bottom:7786 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  OG                   Status:  AB - 10/3/2018                 Interval Top: 7092 ft.    Interval Bottom: 7320 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/1/2009Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/1/2009
Treatment Summary:NB-CD RE-FRAC & RECOMPLETN. SET RBP@ 7423'. REFRC CODL W/111,972 GAL 24# VISTAR HYBRID CROSS LINKED GEL CONTAINING 251,080# 20/40 SD. SET RFP @ 7200'. REFRAC'D NBRR W/ 152,292 GAL 18# VISTAR X-LINKED GEL HYBRID CONTNING 250,240# 20/40 SD.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7092 ft.# Of Holes:108
Interval Bottom:7320 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/03/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
