COGIS - WELL SCOUT CARD

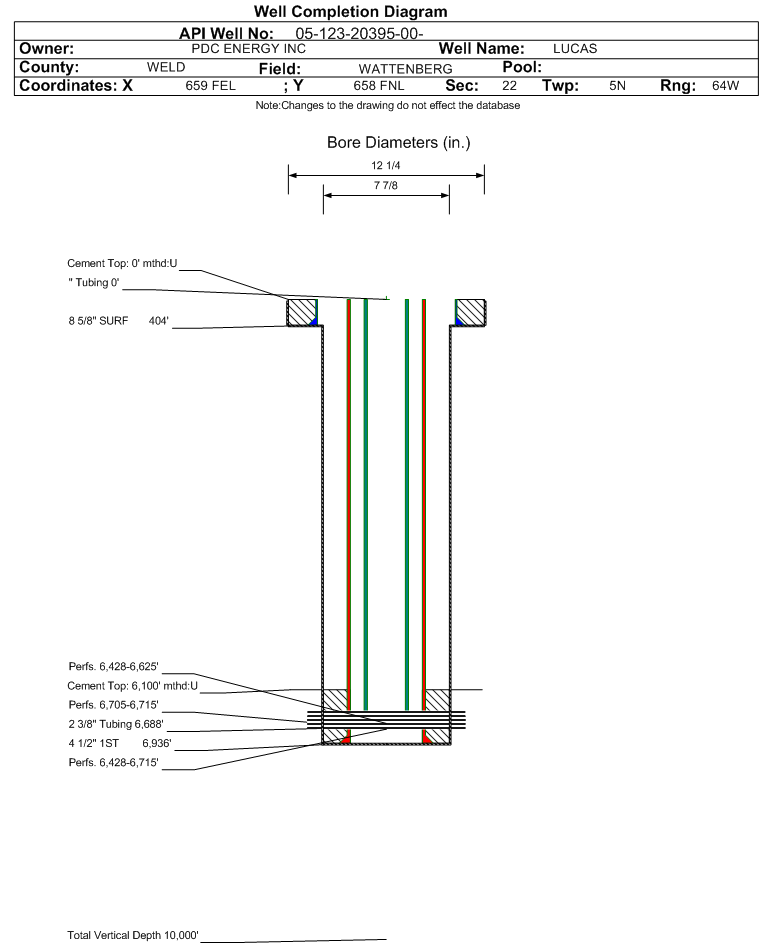

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-20395		Well Classification: GW Status: PA - 9/19/2022
Well Name/No:LUCAS #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/19/2022
FacilityID:259920LocationID:331261
County:WELD #123Location:NENE 22 5N64W 6
Field:WATTENBERG - #90750Elevation:4569 ft.
Basin:DENVER (DJ) BASIN
Planned Location:658FNL  659 FELLat/Long: 40.390206 / -104.528884Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.390180 / -104.528880Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 9/19/2022             Measured TD: 6930 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 9/19/2022
Wellbore PermitDRIFTED
Permit #:010785 Expiration Date:4/26/2002
Proposed Depth/Form:6900 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E2NE
Wellbore Completed
Completion Date:7/12/2001
Spud Date:6/12/2001Spud Date Is:ACTUAL
Measured TD:6930 ft.Measured PB depth:6920 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL/GR/CCL DIL/GR/SP/CAL CDL/GR/CAL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 404 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 345, Top: 0 ft., Bottom: 404 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6936 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 6936 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6421 ft.NN
CODELL6704 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 8/5/2006                  Interval Top: 6705 ft.    Interval Bottom: 6715 ft.

 Completed Information for Formation CODELL
1st Production Date:7/12/2001Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/5/2006
Treatment Summary:EXCO RESOURCES REFRAC'D CD & NB WITHOUT NOTIFYING THE COGCC BETWEEN 6/25/06 AND 7/12/06. REPERF CD 6705-6715 (30 HOLES), REFRAC'D CD USING 759 BBLS OF VISTAR 26# PAD, 2099 BBLS OF VISTAR FLUID SYSTEM AND 260980 LBS OF 20/40 WHT SND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 24
CASING_PRESS 845
MCF_GAS 124
Perforation Data:
Interval Top:6705 ft.# Of Holes:70
Interval Bottom:6715 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 4/19/2022                 Interval Top: 6428 ft.    Interval Bottom: 6715 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/12/2006Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/12/2001
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 27
BBLS_OIL 34
BTU_GAS 1358
CALC_BBLS_H2O 27
CALC_BBLS_OIL 34
CALC_GOR 5471
CALC_MCF_GAS 186
CASING_PRESS 800
GRAVITY_OIL 51
MCF_GAS 186
TUBING_PRESS 330
Perforation Data:
Interval Top:6428 ft.# Of Holes:166
Interval Bottom:6715 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 8/5/2006                  Interval Top: 6428 ft.    Interval Bottom: 6625 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/12/2001
Treatment Summary:PERF NB-A 6248-6458 (27 HOLES), NB-B 6523-6542 (39 HOLES), NB-C 6596-6625 (30 HOLES). FRAC'D NB W/1000 GALS 15% HCL, 761 OF SLICKWATER PAD, 99 BBLS OF VISTAR 16#, 2183 BBLS OF VISTAR 16# FLUID SYS, 239800 LB OF 20/40 WHT SND & 12000 LBS SUPER LC 20/40 RCP
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6428 ft.# Of Holes:96
Interval Bottom:6625 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/19/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
