COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-20393		Well Classification: GW Status: PA - 9/9/2022
Well Name/No:JOSHUA #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/9/2022
FacilityID:259916LocationID:331259
County:WELD #123Location:NENW 22 5N64W 6
Field:WATTENBERG - #90750Elevation:4578 ft.
Basin:DENVER (DJ) BASIN
Planned Location:661FNL  2000 FWLLat/Long: 40.390176 / -104.538314Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.390530 / -104.538420Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

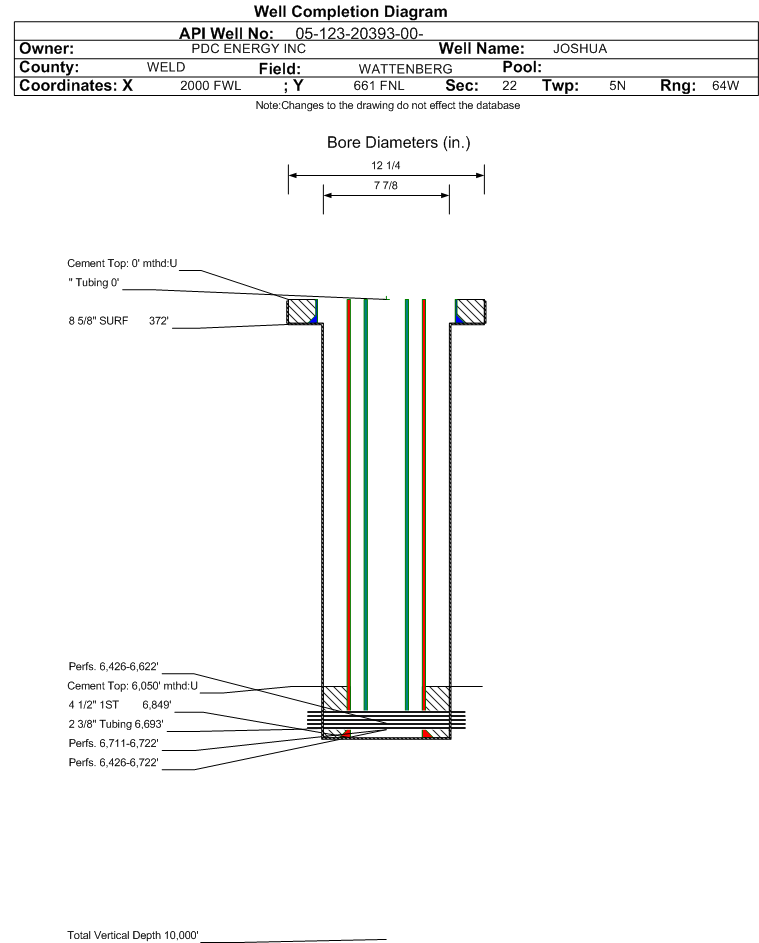

Wellbore #00             Wellbore Classification: GW             Status: PA - 9/8/2022             Measured TD: 6881 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 9/8/2022
Wellbore Permit
Permit #:010783 Expiration Date:4/26/2002
Proposed Depth/Form:6900 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E2NW
Wellbore Completed
Completion Date:7/31/2001
Spud Date:7/3/2001Spud Date Is:ACTUAL
Measured TD:6881 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:CBL/GR/CCL DIL/GR/SP CDL/GR/CAL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 372 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 0 ft., Bottom: 372 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6849 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 6849 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6424 ft.NN
CODELL6710 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 8/1/2007                  Interval Top: 6711 ft.    Interval Bottom: 6722 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/6/2007
Treatment Summary:RE-PERFED CODELL 6712-6722 (30 HOLES) REFRAC'D DOCELL USING 643 BBLS OF VISTAR 24# PAD, 1955 BBLS OF VISTAR 24# FLUID SYSTEM, 220860 LBS OF 20/40 WHITE SAND AND 8000 LBS OF SB EXCELL 20/40 RESIN COATED PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 13
BTU_GAS 1314
CALC_BBLS_H2O 2
CALC_BBLS_OIL 13
CALC_GOR 6462
CALC_MCF_GAS 84
CASING_PRESS 550
GRAVITY_OIL 53
MCF_GAS 84
TUBING_PRESS 500
Perforation Data:
Interval Top:6711 ft.# Of Holes:70
Interval Bottom:6722 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 9/9/2022                  Interval Top: 6426 ft.    Interval Bottom: 6722 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:1/14/2006Choke Size:0.375 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/31/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6693 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/1/2007Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 20
BTU_GAS 1317
CALC_BBLS_H2O 1
CALC_BBLS_OIL 20
CALC_GOR 5450
CALC_MCF_GAS 109
CASING_PRESS 575
GRAVITY_OIL 56
MCF_GAS 109
TUBING_PRESS 500
Perforation Data:
Interval Top:6426 ft.# Of Holes:133
Interval Bottom:6722 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/15/2005                Interval Top: 6426 ft.    Interval Bottom: 6622 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:11/15/2005Choke Size:0.250 in.
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/31/2001
Treatment Summary:FRAC'D NIOBRARA W/176,190 GAL SILVERSTIM GEL AND 251,718LBS 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/15/2005Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 18
CASING_PRESS 200
MCF_GAS 91
Perforation Data:
Interval Top:6426 ft.# Of Holes:63
Interval Bottom:6622 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/09/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
