COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-20392		Well Classification: GW Status: PA - 9/9/2022
Well Name/No:KALEB #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/9/2022
FacilityID:259917LocationID:331258
County:WELD #123Location:NWNW 22 5N64W 6
Field:WATTENBERG - #90750Elevation:4581 ft.
Basin:DENVER (DJ) BASIN
Planned Location:512FNL  669 FWLLat/Long: 40.390586 / -104.543094Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.390670 / -104.542940Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 9/9/2022             Measured TD: 688 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 9/9/2022
Wellbore PermitDRIFTED
Permit #:010782 Expiration Date:4/26/2002
Proposed Depth/Form:6900 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: S2NW
Wellbore Completed
Completion Date:7/24/2001
Spud Date:6/27/2001Spud Date Is:ACTUAL
Measured TD:688 ft.Measured PB depth:6887 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL/GR/CAL DIL/GR/SP/CAL CBL/GR CCL

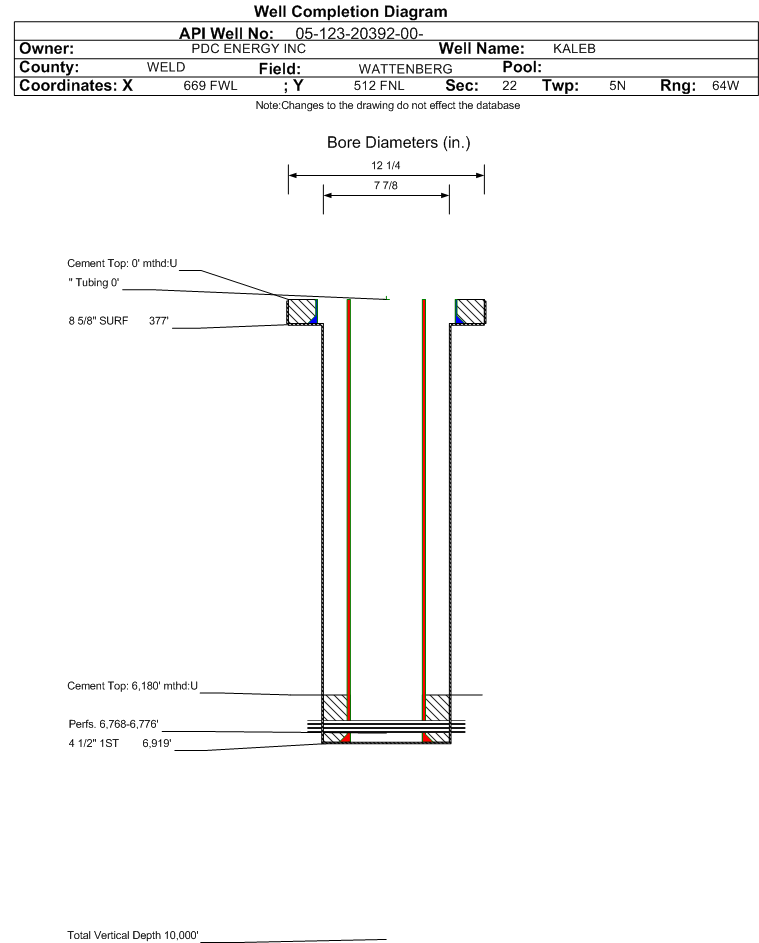

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 377 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 393 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6919 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 0 ft., Bottom: 6919 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6486 ft.NN
CODELL6766 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 3/14/2022                 Interval Top: 6768 ft.    Interval Bottom: 6778 ft.

 Completed Information for Formation CODELL
1st Production Date:7/14/2001Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/24/2001
Treatment Summary:FRAC CODELL WITH 135,496 GAL OF VISTAR 22 PPT GEL AND 292180 GLS 20/40 JORDAN SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 110
BBLS_OIL 2
CASING_PRESS 875
MCF_GAS 100
Perforation Data:
Interval Top:6768 ft.# Of Holes:62
Interval Bottom:6778 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 9/9/2022                  Interval Top: 6492 ft.    Interval Bottom: 6778 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/18/2006Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6492 ft.# Of Holes:128
Interval Bottom:6778 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 3/16/2022                 Interval Top: 6492 ft.    Interval Bottom: 6620 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/18/2006Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6492 ft.# Of Holes:66
Interval Bottom:6620 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/09/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
