Wellbore #00 Wellbore Classification: GW Status: SI - 9/1/2021 Measured TD: 7872 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 9/1/2021 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 10/15/2002 | | Proposed Depth/Form: | 7900 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 320, Drill Unit: W/2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232,318A , Unit Acreage: 320, Drill Unit: W/2 |
| | |

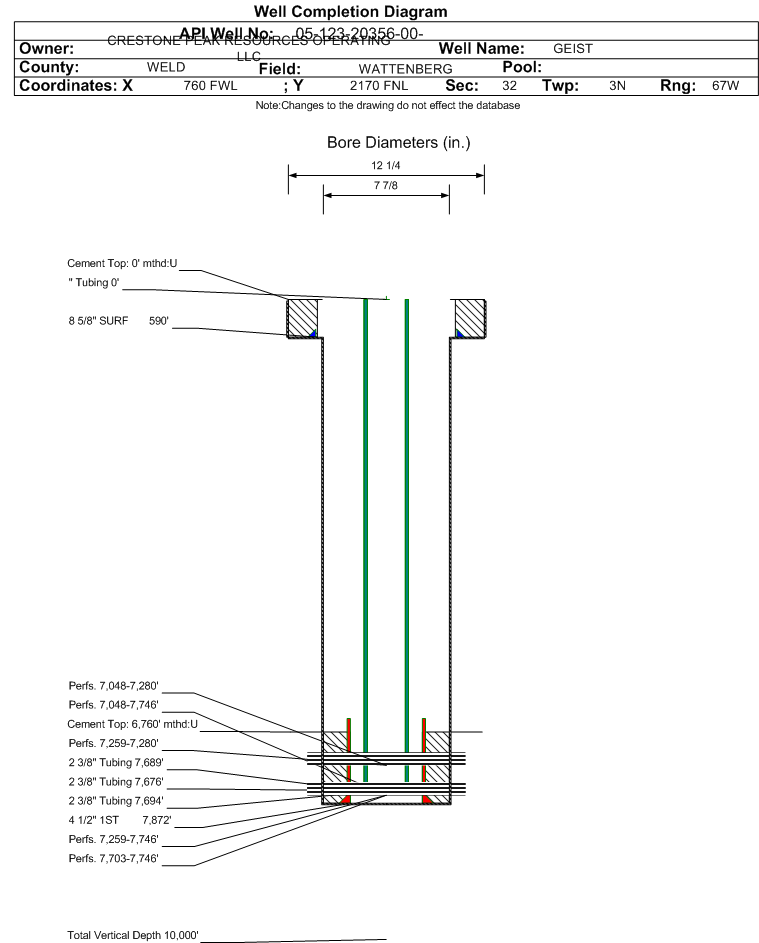

| Wellbore Completed | | Completion Date: | 5/26/2001 | | Spud Date: | 4/13/2001 | Spud Date Is: | ACTUAL | | Measured TD: | 7872 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL IND.,COMPENSATED DESNITY,COMENSATED NEU.,GR | | Log Types: | CBL/Gyro | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 590 ft., Depth: 590 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 410, Top: 0 ft., Bottom: 590 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 6550 ft., Depth: 7872 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 6760 ft., Bottom: 7872 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 1220 ft., Depth: 2007 ft., Bottom: 2007 ft., Sacks: 195, Method: 1 INCH | | Additional Cement: | String Type: 1ST , Top: 0 ft., Depth: 1000 ft., Bottom: 1060 ft., Sacks: 255, Method: 1 INCH | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4100 ft. | | N | N | | SHANNON | 4642 ft. | | N | N | | NIOBRARA | 6988 ft. | | N | N | | FORT HAYS | 7237 ft. | | N | N | | CODELL | 7259 ft. | | N | N | | CARLILE | 7282 ft. | | N | N | | GREENHORN | 7300 ft. | | N | N | | GRANEROS | 7530 ft. | | N | N | | MOWRY | 7684 ft. | | N | N | | J-2 SAND | 7703 ft. | | N | N | | SKULL CREEK | 7806 ft. | | N | N |
Formation JSND Formation Classification: GW Status: SI - 9/1/2021 Interval Top: 7703 ft. Interval Bottom: 7746 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | 0.344 in. | | Formation Name: | J SAND | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/26/2001 | | Treatment Summary: | FRAC WELL W/550,000# 20/40 FRAC SAND, 1 PPG THRU 5 PPG 227,889 GALS FRACGEL 22# HT & 20#. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7689 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/25/2001 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 41 | | BBLS_OIL | 29 | | CALC_BBLS_H2O | 41 | | CALC_BBLS_OIL | 29 | | CALC_GOR | 17179 | | CALC_MCF_GAS | 498 | | CASING_PRESS | 440 | | MCF_GAS | 498 | | TUBING_PRESS | 270 |
| | Perforation Data: | | Interval Top: | 7703 ft. | # Of Holes: | 70 | | Interval Bottom: | 7746 ft. | Hole Size: | |
|
Formation CODL Formation Classification: GW Status: CM - 6/25/2001 Interval Top: 7259 ft. Interval Bottom: 7280 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | 0.375 in. | | Formation Name: | CODELL | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/26/2001 | | Treatment Summary: | SET CIBP. PRESSURE TEST. PERF CODELL FROM 7259' TO 7280' W/2 SPF. FRAC W/ 300,120 # 20/40 SAND IN 129,610 GALS PHOENIX 22# & 20# FLOW BACK |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/19/2001 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 5 | | BBLS_OIL | 28 | | CALC_BBLS_H2O | 5 | | CALC_BBLS_OIL | 28 | | CALC_GOR | 2536 | | CALC_MCF_GAS | 71 | | CASING_PRESS | 210 | | MCF_GAS | 71 |
| | Perforation Data: | | Interval Top: | 7259 ft. | # Of Holes: | 42 | | Interval Bottom: | 7280 ft. | Hole Size: | 0.3 in. |
|
Formation J-CDL Formation Classification: GW Status: CM - 4/14/2002 Interval Top: 7259 ft. Interval Bottom: 7746 ft.| Completed Information for Formation J-CODELL | | 1st Production Date: | N/A | Choke Size: | 0.281 in. | | Formation Name: | J-CODELL | Commingled: | No | | Production Method: | PUMPING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/26/2001 | | Treatment Summary: | DRILL OUT CIBP, RUN PROD. TBG. SWAB WELL BACK. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7694 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/14/2002 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 11 | | BBLS_OIL | 18 | | BTU_GAS | 18 | | CALC_BBLS_H2O | 11 | | CALC_BBLS_OIL | 18 | | CALC_GOR | 30169 | | CALC_MCF_GAS | 534 | | CASING_PRESS | 560 | | MCF_GAS | 534 | | TUBING_PRESS | 325 |
| | Perforation Data: | | Interval Top: | 7259 ft. | # Of Holes: | 112 | | Interval Bottom: | 7746 ft. | Hole Size: | |
|
Formation JNBCD Formation Classification: GW Status: CM - 2/28/2009 Interval Top: 7048 ft. Interval Bottom: 7746 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/26/2001 | | Treatment Summary: | HOLE SIZES .38'' & .42''. JSND-NBRR-CODL COMMINGLE. RELEASED RBP @ 7170' AND @ 7350' TO COMMINGLE THE JSND-NBRR-CODL. 2/23/09 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7676 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/28/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 29 | | BBLS_OIL | 3 | | BTU_GAS | 1228 | | CALC_BBLS_H2O | 29 | | CALC_BBLS_OIL | 3 | | CALC_GOR | 27333 | | CALC_MCF_GAS | 82 | | CASING_PRESS | 761 | | GRAVITY_OIL | 60 | | MCF_GAS | 82 | | TUBING_PRESS | 352 |
| | Perforation Data: | | Interval Top: | 7048 ft. | # Of Holes: | 236 | | Interval Bottom: | 7746 ft. | Hole Size: | |
|
Formation NB-CD Formation Classification: GW Status: SI - 9/1/2021 Interval Top: 7048 ft. Interval Bottom: 7280 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 2/23/2009 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/9/2009 | | Treatment Summary: | NB-CD REFRAC & RECOMPLETION. (SEE NEXT PAGE OPERATORS COMMENTS FOR DETAILS.) |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 7048 ft. | # Of Holes: | 124 | | Interval Bottom: | 7280 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
08/31/2021 |
| Low Producing | Y | Production Period
05/2024 - 04/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
