Wellbore #00 Wellbore Classification: GW Status: PR - 11/1/2019 Measured TD: 8343 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/1/2019 | | Wellbore Permit | | | Permit #: | 20021189 | Expiration Date: | 6/17/2003 | | Proposed Depth/Form: | 8400 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 406,460-77, Unit Acreage: 320, Drill Unit: N/2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: N2 |
| | |

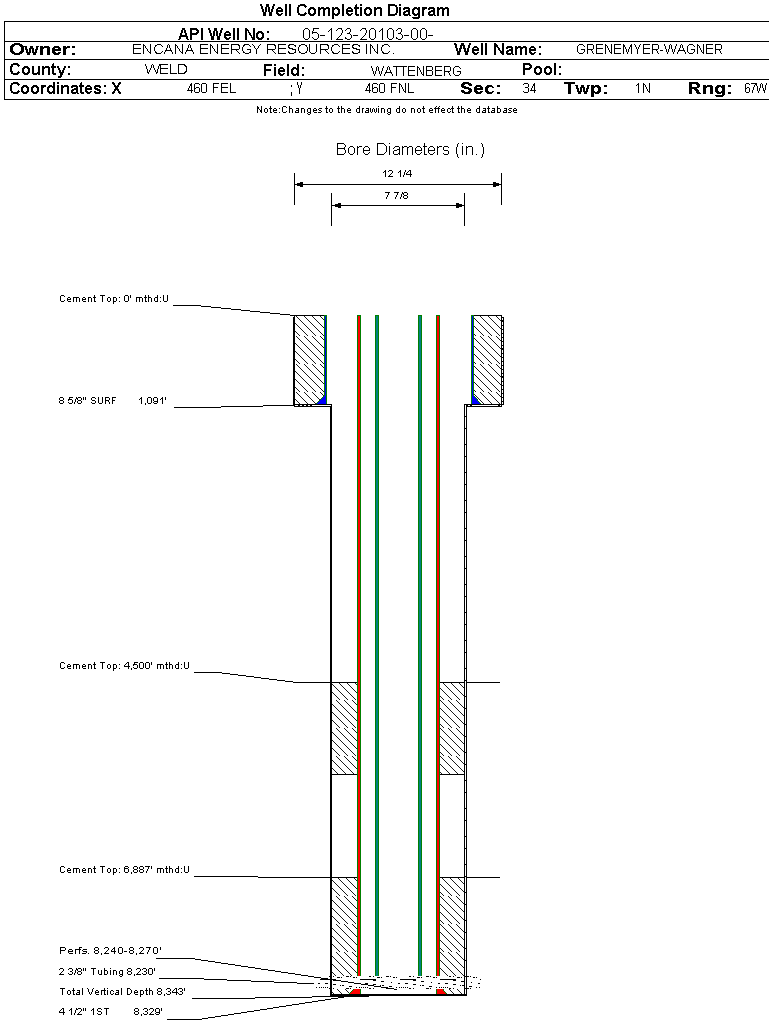

| Wellbore Completed | | Completion Date: | 11/20/2000 | | Spud Date: | 10/19/2000 | Spud Date Is: | ACTUAL | | Measured TD: | 8343 ft. | Measured PB depth: | 8319 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL INDUCTION GUARD LOG GR; COMPENSATED DENSITY,COMPENSATED NEUTRON GR;CBL GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1091 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 770, Top: 0 ft., Bottom: 1091 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8329 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 6887 ft., Bottom: 8329 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5623 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 4500 ft., Bottom: 5623 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4846 ft. | | N | N | | SHANNON | 5384 ft. | | N | N | | NIOBRARA | 7361 ft. | | N | N | | CODELL | 7779 ft. | | N | N | | CARLILE | 7793 ft. | | N | N | | GREENHORN | 7826 ft. | | N | N | | BENTONITE | 8052 ft. | | N | N | | GRANEROS | 8053 ft. | | N | N | | MOWRY | 8205 ft. | | N | N | | J-2 SAND | 8229 ft. | | N | N | | SKULL CREEK | 8320 ft. | | N | N |
Formation JSND Formation Classification: GW Status: PR - 11/1/2019 Interval Top: 8240 ft. Interval Bottom: 8270 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 11/21/2000 | Choke Size: | 0.313 in. | | Formation Name: | J SAND | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/20/2000 | | Treatment Summary: | FRAC WELL WITH 220969 GLAS FRAC GEL 27#, 25# FLUID. WITH 551240 LBS 20/40 FRAC SAND. 1 PPG THRU 5 PPG. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8230 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/20/2000 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 21 | | BBLS_OIL | 11 | | CALC_GOR | 61273 | | CASING_PRESS | 480 | | MCF_GAS | 674 | | TUBING_PRESS | 320 |
| | Perforation Data: | | Interval Top: | 8240 ft. | # Of Holes: | 60 | | Interval Bottom: | 8270 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 108 |
| Total Gas Produced (MCF) | 7599 |
| GOR | 70361 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.896 |
| Average MCFE per Day | 22.585 |
| Federal Financial Assurance | i | |
|
|
