Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-123-20040		Well Classification: OW	Status: PA - 7/27/2022
Well Name/No:	CAPEHART #42-29 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	PDC ENERGY INC - 69175 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PA	Status Date	7/27/2022
FacilityID:	257910	LocationID:	331021
County:	WELD #123	Location:	SENE 29 6N64W 6
Field:	WATTENBERG - #90750	Elevation:	4682 ft.
Basin:	DENVER (DJ) BASIN
Planned Location:	2017FNL 860 FEL	Lat/Long: 40.458565 / -104.567856	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 40.458470 / -104.567750	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: OW Status: PA - 7/27/2022 Measured TD: 7126 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: OW PA - 7/27/2022
Wellbore Permit
Permit #:	000888	Expiration Date:	8/24/2001
Proposed Depth/Form:	7300 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E2NE4

Wellbore Completed
Completion Date:	N/A
Spud Date:	9/29/2000	Spud Date Is:	ACTUAL
Measured TD:	7126 ft.	Measured PB depth:	7097 ft.
True Vertical TD:		True Vertical PB depth:
Log Types:	GR, IND,DENSITY,NEUTRON
Log Types:	CBL

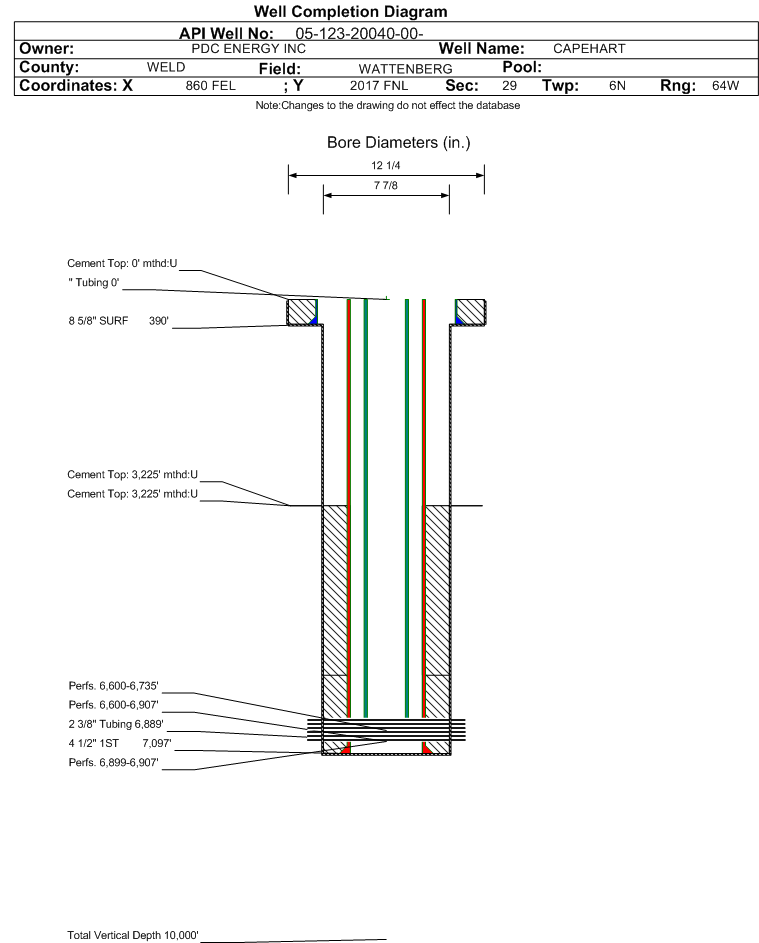

Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 390 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 275, Top: 0 ft., Bottom: 390 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7097 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:	Sacks: 180, Top: 5872 ft., Bottom: 7097 ft., Determination Method: CBL
Casing:	String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7097 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 200, Top: 3225 ft., Bottom: 5872 ft., Determination Method: CBL
Casing:	String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 3125 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 390, Top: 0 ft., Bottom: 3146 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
GREELEY SAND	2795 ft.		N	N
PARKMAN	3575 ft.		N	N
SUSSEX	4362 ft.		N	N
NIOBRARA	6590 ft.		N	N
FORT HAYS	6850 ft.		N	N
CODELL	6894 ft.		N	N
CARLILE	6914 ft.		N	N
GREENHORN	6944 ft.		N	N

Formation CODL Formation Classification: OW Status: CM - 2/2/2012 Interval Top: 6899 ft. Interval Bottom: 6907 ft.

Completed Information for Formation CODELL

1st Production Date:	N/A	Choke Size:
Formation Name:	CODELL	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	12/13/2011
Treatment Summary:	Re-pref Codell 6899'-6907' (24 holes) Re-Frac'd Codell w/ 119 bbl FE-1A pad, 598 bbls of 26# pHaser pad, 2012 bbls of 26# pHaser, 217120# 20/40 Preferd Rock , 8000 lbs# 20/40 SB Excel.
Formation Treatment
Treatment Date:	10/12/2000
Treatment Summary:	10/12/00 BJ FRACED WITH 3355 BBL OF 22# VISTAR GEL AND 4,000# OF 12/20RC & 237,600# OF 20/40 SAND.

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	3
BBLS_OIL	37
CALC_BBLS_H2O	3
CALC_BBLS_OIL	37
CALC_MCF_GAS	220
CASING_PRESS	200
MCF_GAS	220

Perforation Data:
Interval Top:	6899 ft.	# Of Holes:	24
Interval Bottom:	6907 ft.	Hole Size:	0.40625 in.

Formation NB-CD Formation Classification: OW Status: AB - 2/8/2022 Interval Top: 6600 ft. Interval Bottom: 6907 ft.

Completed Information for Formation NIOBRARA-CODELL

1st Production Date:	11/9/2000	Choke Size:
Formation Name:	NIOBRARA-CODELL	Commingled:	No
Production Method:
Open Hole Completion:	No

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	1
BBLS_OIL	26
BTU_GAS	1418
CALC_BBLS_H2O	1
CALC_BBLS_OIL	26
CALC_GOR	1008
CALC_MCF_GAS	262
CASING_PRESS	400
GRAVITY_OIL	57
MCF_GAS	262
TUBING_PRESS	400

Perforation Data:
Interval Top:	6600 ft.	# Of Holes:	52
Interval Bottom:	6907 ft.	Hole Size:

Formation NBRR Formation Classification: OW Status: CM - 3/1/2012 Interval Top: 6600 ft. Interval Bottom: 6735 ft.

Completed Information for Formation NIOBRARA

1st Production Date:	N/A	Choke Size:
Formation Name:	NIOBRARA	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	12/13/2011
Treatment Summary:	Perf'd Niobrara "A" 6600-6602 ' (4 holes),Niobrara "B" 6727'-6735' (24 holes) ReFrac'd Niobrara with 119 bbl active pad, 1549 bbls of Slickwater pad, 142 bbls of pHaser 20# pad, 2279 bbls of pHaser 20# fluid system and 239020# of 20/42 Preferred Rock, 12000 # 20/40 SB Excel.

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation NBRR.

Perforation Data:
Interval Top:	6600 ft.	# Of Holes:	28
Interval Bottom:	6735 ft.	Hole Size:	0.421875 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	07/27/2022
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

October 2024 - September 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
